Metallics JFM103SS 1/4-20 x 1-...
IN STOCK (leaves warehouse same day if ordered before 3pm ET)
$192.86

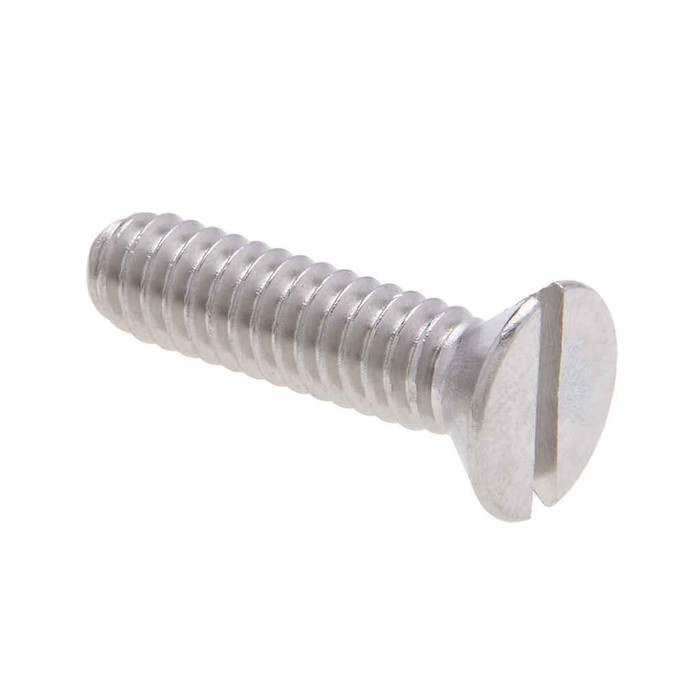

Metallics JFM103SS 1/4-20 x 1-1/2 in. Flat Head Slotted Machine Screws - 18-8 Stainless - 100qty

Metallics JFM103SS 1/4-20 x 1-1/2 in. Flat Head Slotted Machine Screws - 18-8 Stainless - Each

(No reviews yet) Write a Review

Model: JFM103SS
Selected Model is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$192.86
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like
1/4-20 x 1-1/2 in. Flat Head Slotted Machine Screws - 18-8 Stainless - 100qty

  • Features

    • Stainless steel machine screws are used in applications which require general atmospheric corrosion resistance, in food processing machinery and refrigeration equipment.
    • Stainless is also superior to steel in withstanding some elevation in application operating temperature while maintaining its strength.
    • Flat head with slotted Drive
    • 18-8 Stainless Material
    • 1/4-20 Diameter, 1-1/2" Length

  • Additional Notes

    • Other sizes and quantities available by request | Hardness and tensile strength standards are offered as guides only for stainless machine screws. There is currently no national standard for these performance requirements for stainless machine screws.

Manufacturer Resources

Product Specs

Minimum Purchase:
100 units
Arra Compliant:
N
Buy American Compliant:
No
Dimensional Standard:
ASME B18.6.3-1998
Division:
Electrical H1
Drive Type:
Slotted
Fastener Head Height:
0.131 - 0.153 in.
Fastener Head Type:
Flat
Fastener Head Width:
0.442 - 0.477 in.
Fastener Length:
1/1/02
Field Application:
Electrical, Plumbing, Heating and Air Conditioning Industries
Hardness:
Rockwell B85-B95
Language Code:
EN
Material Standard:
SAE
Neurspe:
https://ideadigitalasset.com/DAMRoot/Original/10035/11237_ID-SPE-v1-ID-SPE-v1-Flat_Head_Mach_Screw.pdf
Order Minimum Imperial:
100
Order Minimum Uom Imperial:
JR
Pack Type:
Jar
Product Group:
Fasteners
Product Height:
3.6 in
Product Length:
3 in
Product Weight:
1.83 lbs
Product Width:
3 in
Slot Depth:
0.046 - 0.07
Slot Width:
0.064 - 0.075
Sub Division:
Electrical-E H2
Tensile Strength:
1900 lb minimum
Thread Per Inch:
20
Thread Standard:
ANSI/ASME B1.1
Thread Type:
UNC
Department:
Electrical
Product Subgroup:
Screws
Product Type:
Machine Screw
Type2:
Machine Screw
Series:
FM and FMP
Product Details:
Machine Screw
Product Material:
18-8 Stainless

Metallics JFM103SS – Frequently Asked Questions

1) Will a 1/4-20 machine screw thread into my existing tapped hole or standard 1/4-20 nut?
Yes. The Metallics JFM103SS is a 1/4-20 UNC thread, 20 threads per inch, made to ANSI/ASME B1.1. That is the standard coarse 1/4 inch machine screw thread, so it mates with any 1/4-20 tapped hole, nut, or strut channel nut cut to the same standard. Overall length is 1-1/2 inches, so you need enough grip plus thread engagement within that.
2) Are these stainless screws OK for outdoor or wet locations, like exterior boxes and wash-down areas?
18-8 stainless is the material, chosen for general atmospheric corrosion resistance, and it is used in food processing machinery and refrigeration equipment where wash-down and moisture are routine. It also holds strength better than plain steel at elevated operating temperatures. For heavy chloride exposure (coastal spray, pool chemistry) 18-8 is not the top tier, but for general exterior electrical and HVAC work it is the usual choice over zinc-plated steel.
3) Can I use these on a Buy American or ARRA-funded job?
No. The JFM103SS is not Buy American compliant and is not ARRA compliant, with country of origin listed as multiple. On a federally funded or domestic-content job you will need a domestically sourced fastener instead.
4) How many screws come in a jar of Metallics JFM103SS, and can I buy fewer?
They ship 100 to a jar, and the jar is the order minimum. If you need a different count or a different length in the FM and FMP series, other sizes and quantities are available by request.
5) Do I need a special bit, or will a standard flat-blade screwdriver drive these?
A standard flat-blade driver does it. The slot is 0.064 to 0.075 in. wide and 0.046 to 0.07 in. deep, so a medium cabinet-tip blade that fills the slot width is what you want. Slotted drive does not cam out like Phillips, but it also will not hold a bit on a driver, so these are easier by hand than on a drill.
6) What trades actually use these 1/4-20 stainless machine screws?
They are stocked for electrical, plumbing, heating and air conditioning work: mounting devices and plates to tapped holes, panel and enclosure hardware, strut and bracket assembly, equipment covers. The 1-1/2 inch length suits stacked or gasketed assemblies where a shorter screw will not reach the threads.
7) How much does a jar of 100 of these 1/4-20 x 1-1/2 stainless screws weigh for shipping?
The jar weighs 1.83 lbs, with a package footprint of 3 x 3 x 3.6 inches. Light enough to carry several jars on the van without much thought.
