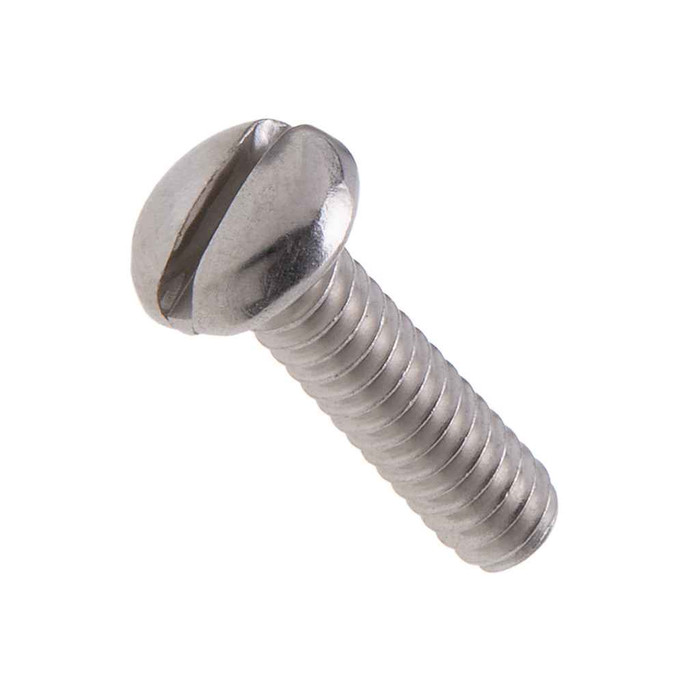

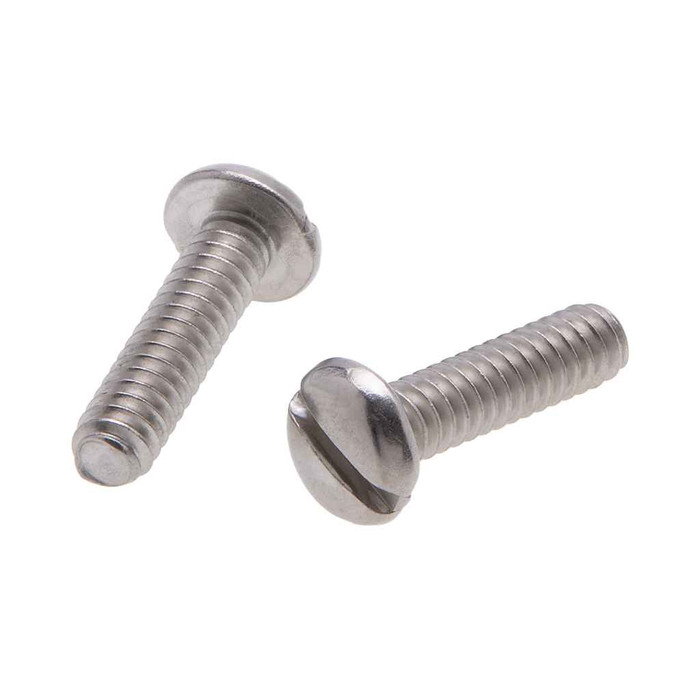

Metallics JSPM115SS 1/4-20 x 1-1/2 in. Pan Head Slotted Machine Screws - 18-8 Stainless - 100qty

Metallics JSPM115SS 1/4-20 x 1-1/2 in. Pan Head Slotted Machine Screws - 18-8 Stainless - Each

(No reviews yet) Write a Review

Model: JSPM115SS
Selected Model is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$192.86
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like
1/4-20 x 1-1/2 in. Pan Head Slotted Machine Screws - 18-8 Stainless - 100qty

  • Additional Notes

    • Other sizes and quantities available by request | Tensile strength values for stainless screws are offered as approximations only; there is no single standard for the performance requirements of stainless machine screws.

  • Features

    • 18-8 Stainless Material
    • Pan head with slotted Drive
    • 1/4-20 Diameter, 1-1/2" Length

Manufacturer Resources

Product Specs

Minimum Purchase:
100 units
Arra Compliant:
C
Buy American Compliant:
C
Dimensional Standard:
ASME B18.6.3-2010
Division:
Electrical H1
Drive Type:
Slotted
Fastener Head Height:
0.13 - 0.144 in.
Fastener Head Type:
Pan
Fastener Head Width:
0.473 - 0.492 in.
Fastener Length:
1/1/02
Hardness:
Rockwell BBS-B9S
Language Code:
EN
Material Standard:
SAE
Neurspe:
https://ideadigitalasset.com/DAMRoot/Original/10035/11237_ID-SPE-v1-ID-SPE-v1-Pan_Head_Screw_St_SS.pdf
Order Minimum Imperial:
100
Order Minimum Uom Imperial:
CT
Pack Type:
Jar
Product Group:
Fasteners
Product Height:
3.6 in
Product Length:
3 in
Product Weight:
2.13 lbs
Product Width:
3 in
Slot Depth:
0.07 - 0.087
Slot Width:
0.064 - 0.075
Sub Division:
Electrical-E H2
Tensile Strength:
80000 psi minimum
Thread Per Inch:
20
Department:
Electrical
Product Subgroup:
Screws
Product Type:
Machine Screw
Type2:
Machine Screw
Series:
SPM
Product Details:
Machine Screw
Product Material:
18-8 Stainless

Metallics JSPM115SS – Frequently Asked Questions

1) Will a 1/4-20 machine screw thread into a standard 1/4-20 tapped hole or nut?
Yes. The Metallics JSPM115SS is a 1/4-20 thread, 20 threads per inch, cut to the ASME B18.6.3-2010 dimensional standard, so it mates with any standard 1/4-20 tapped hole, nut, or threaded insert. The 1-1/2 inch length is the shank, so figure your material stack plus whatever thread engagement the tapped member needs.
2) Do these stainless machine screws qualify for a Buy American or ARRA funded job?
Metallics lists the JSPM115SS as both ARRA compliant and Buy American compliant. Country of origin is reported as multiple, so if your specification requires documentation of a single origin country for a particular lot, request it with the order.
3) Is 18-8 stainless the right machine screw for outdoor or damp electrical enclosures?
18-8 stainless is the usual choice for outdoor, damp, and washdown locations because it resists rust without plating, which is why these show up in exterior enclosures, strut, and fixture mounting. For chloride-heavy coastal or pool chemical environments, 316 stainless holds up better than 18-8.
4) How many Metallics JSPM115SS screws come in a package?
They ship in a jar of 100, which is the order minimum: 100 count. The packed jar weighs 2.13 lbs and measures 3 x 3.6 x 3 inches, so it stores easily on a van shelf or in a parts bin.
5) What is the tensile strength of these 18-8 stainless machine screws, and can I treat it as a rated value?
80,000 psi minimum is the figure Metallics publishes, with hardness noted as Rockwell BBS-B9S. Treat it as an approximation: there is no single performance standard for stainless machine screws, so for structural or load-bearing work use a fastener graded to a strength standard rather than a stainless machine screw.
6) Is a machine screw the same thing as a sheet metal or self-tapping screw?
No. A machine screw like the 1/4-20 x 1-1/2 in. Metallics pan head has a uniform straight thread with a blunt end and needs a pre-tapped hole or a nut; it will not cut its own threads. If you are fastening into unthreaded sheet metal or into a knockout without a tapped boss, you want a self-drilling or sheet metal screw, or add a nut behind the panel.
7) Can I get this Metallics pan head screw in another length or thread size?
The SPM series covers other sizes and quantities by request; the JSPM115SS itself is fixed at 1/4-20 by 1-1/2 inch in 18-8 stainless with a slotted pan head. If you are standardizing a facility on one head style and material, ask for the other lengths in the same series so the drive and head profile stay consistent across your bins.
