Metallics RSB104S 1/4-20 x 2 i...
IN STOCK (leaves warehouse same day if ordered before 3pm ET)
$385.71

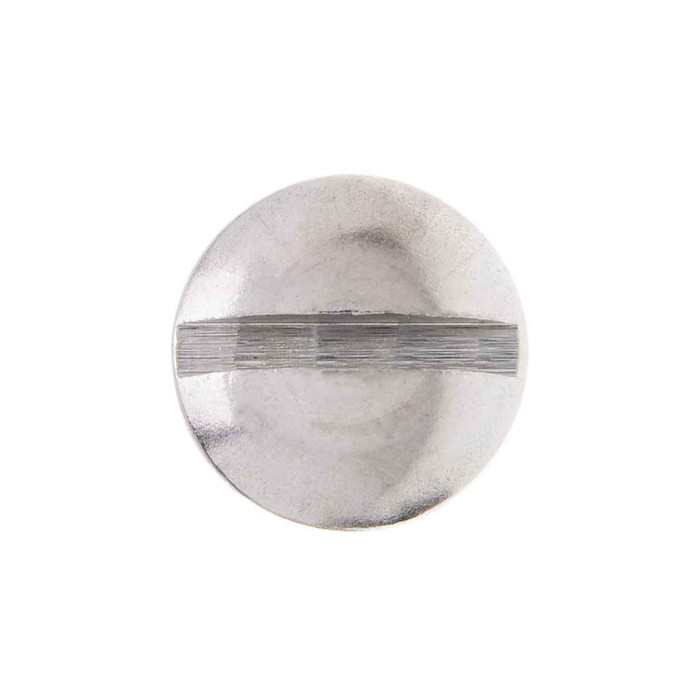

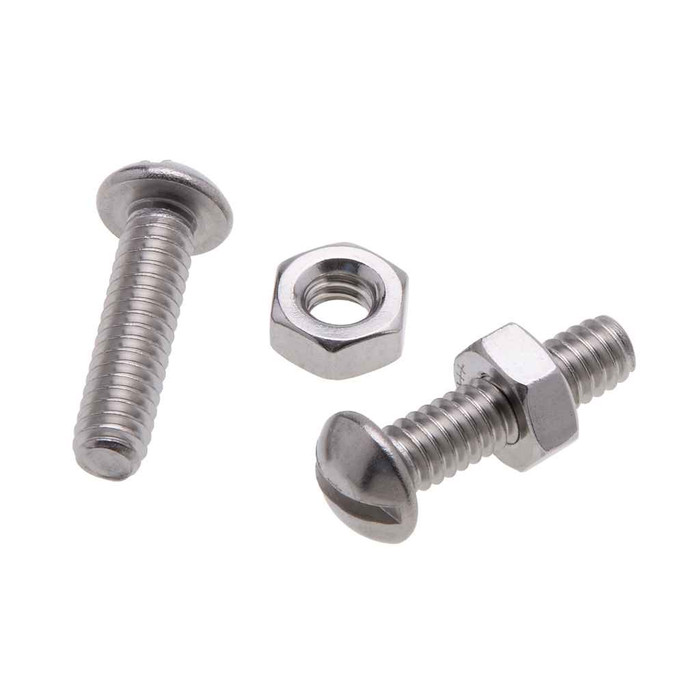

Metallics RSB104S 1/4-20 x 2 in. Round Head Slotted Stove Bolt Screws with Hex Nut - 18-8 Stainless - 100qty

Metallics RSB104S 1/4-20 x 2 in. Round Head Slotted Stove Bolt Screws with Hex Nut - 18-8 Stainless - Each

(No reviews yet) Write a Review

Model: RSB104S
Selected Model is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$385.71
Adding to cart… The item has been added
Free Shipping on orders over $199.99
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like
1/4-20 x 2 in. Round Head Slotted Stove Bolt Screws with Hex Nut - 18-8 Stainless - 100qty

  • Additional Notes

    • Other sizes and quantities available by request | Tensile strength values for stainless screws are offered as approximations only; there is no single standard for the performance requirements of stainless machine screws.

  • Features

    • Round head with slotted and Phillips Drive
    • Stainless nuts are used with stainless machine screws where parts are subject to corrosive conditions.
    • Includes Hex nut
    • 1/4-20 Diameter, 2" Length
    • 18-8 Stainless Material

Manufacturer Resources

Product Specs

Minimum Purchase:
100 units
Arra Compliant:
N
Buy American Compliant:
No
Dimensional Standard:
ANSI B18.6.3
Division:
Electrical H1
Drive Type:
Slotted
Fastener Head Height:
0.16 - 0.175 in.
Fastener Head Type:
Round
Fastener Head Width:
0.443 - 0.472 in.
Fastener Length:
2
Field Application:
Electrical, Plumbing, Heating and Air Conditioning Industries
Hardness:
Rockwell B85-B95
Language Code:
EN
Material Standard:
SAE
Neurspe:
https://ideadigitalasset.com/DAMRoot/Original/10035/11237_ID-SPE-v1-ID-SPE-v1-Stove_Bolt.pdf
Order Minimum Imperial:
100
Order Minimum Uom Imperial:
JR
Pack Type:
Clamshell
Product Group:
Fasteners
Product Height:
5.75 in
Product Length:
3.5 in
Product Weight:
3.22 lbs
Product Width:
3.5 in
Slot Depth:
0.082 - 0.109
Slot Width:
0.064 - 0.075
Sub Division:
Electrical-E H2
Tensile Strength:
80000 psi minimum
Thread Per Inch:
20
Department:
Electrical
Product Subgroup:
Screws
Product Type:
Stove Bolt
Type2:
Stove Bolt
Series:
RSB
Product Details:
Stove Bolt
Product Material:
18-8 Stainless

Metallics RSB104S – Frequently Asked Questions

1) Does the Metallics RSB104S stove bolt come with a nut, or do I order nuts separately?
A hex nut is included with the RSB104S. Both the bolt and the nut are 18-8 stainless, so you aren't mixing a plated nut onto a stainless bolt in a damp or corrosive location. Thread is 1/4-20, so any 1/4-20 nut will also mate if you need spares.
2) What size hole do I need to drill for a 1/4-20 round head stove bolt?
The shank is 1/4 inch nominal, so a 1/4 inch clearance hole is the working minimum and 9/32 gives you some play for field alignment. Grip length is what matters more: at 2 inches overall under the head, you want your combined material thickness plus nut and a thread or two of stick-out to land inside that. The round head sits 0.16 to 0.175 inch above the surface and spans 0.443 to 0.472 inch across, so it bears on the material rather than pulling into the hole.
3) Is the Metallics RSB104S stove bolt Buy American or ARRA compliant for a government job?
No. The RSB104S is not Buy American compliant and is not ARRA compliant, with country of origin listed as multiple. If your project carries a domestic sourcing requirement, this part will not clear it.
4) How many 1/4-20 x 2 in. Metallics stove bolts do I get in an order?
The RSB104S is sold in a 100-piece minimum, packed in a clamshell. If you need a different count or a different length, Metallics offers other sizes and quantities by request.
5) Can I use 18-8 stainless stove bolts outdoors or in a wet mechanical room?
That is the reason to buy them. 18-8 stainless is the standard corrosion-resistant choice for electrical, plumbing, and HVAC work, and because the matching hex nut is also stainless there is no dissimilar-metal pairing at the joint. For dry interior strut and box work, plated steel is the cheaper answer and this is spending money you do not need to.
6) What is the tensile strength of the Metallics RSB104S stainless stove bolt?
Rated at 80,000 psi minimum, with a hardness of Rockwell B85 to B95. Treat that as approximate: there is no single standard for the performance requirements of stainless machine screws, so for a structural or load-path connection specify a bolt with a published grade marking instead of a stainless machine screw.
7) Does the Metallics RSB stove bolt meet a dimensional spec I can put on a submittal?
Head and thread dimensions conform to ANSI B18.6.3, with material to SAE. That is the standard a 1/4-20 round head slotted machine screw is normally called out to, so it drops into a spec that references B18.6.3 head geometry without a substitution request.
