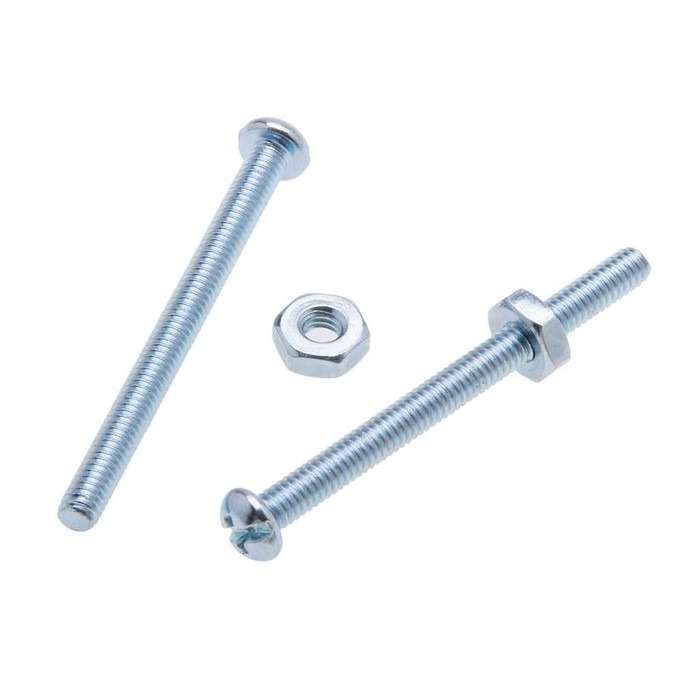

1/4-20 x 2 in. Round Head Combo Stove Bolt Screws with Hex Nut - Steel Zinc - 100qty
Additional Notes
- Standard Package Square Plastic Jar | Two drives in one head | other sizes and quantities available by request | Steel machine screws which have a nominal diameter smaller than #4 are not subject to tensile testing. No. 4 and No. 5 machine screws which are shorter than 1/2" are not subject to tensile testing. Steel machine screws of diameters No. 6 to 1/2" inclusive, which are shorter than either 1/2" or 3D (where D is the nominal screw size in inches) are not subject to tensile testing. Such steel machine screws of a size to be tested shall meet the tensile load requirements listed above.
Features
- Includes Hex nut
- Hex Machine Screw Nut is designed to be used specifically with machine screws.
- Steel Zinc Material
- 1/4-20 Diameter, 2" Length
- Round head with slotted and Phillips Drive
Manufacturer Resources
Product Specs
- Minimum Purchase:
- 100 units
- Arra Compliant:
- N
- Buy American Compliant:
- No
- Dimensional Standard:
- ANSI B18.6.3
- Division:
- Electrical H1
- Drive Type:
- Slotted/Phillips
- Driver Size:
- #4
- Fastener Head Height:
- 0.16 - 0.175 in.
- Fastener Head Type:
- Round
- Fastener Head Width:
- 0.443 - 0.472 in.
- Fastener Length:
- 2
- Field Application:
- Electrical, Plumbing, Heating, Air Conditioning Industries
- Hardness:
- Rockwell B70-B100
- Language Code:
- EN
- Material Standard:
- AISI 1006 - 1022
- Neurspe:
- https://ideadigitalasset.com/DAMRoot/Original/10035/11237_ID-SPE-v1-ID-SPE-v1-Stove_Bolt.pdf
- Order Minimum Imperial:
- 100
- Order Minimum Uom Imperial:
- JR
- Pack Type:
- Clamshell
- Phillips Recess Depth:
- 0.147
- Phillips Recess Diameter:
- 0.255 - 0.268
- Phillips Recess Width:
- 0.034
- Product Group:
- Bolts
- Product Height:
- 5.75 in
- Product Length:
- 3.5 in
- Product Weight:
- 3.22 lbs
- Product Width:
- 3.5 in
- Slot Depth:
- 0.082 - 0.109
- Slot Width:
- 0.064 - 0.075
- Sub Division:
- Electrical-E H2
- Tensile Strength:
- 60000 psi minimum
- Thread Direction:
- Right Hand
- Thread Per Inch:
- 20
- Department:
- Fasteners
- Product Subgroup:
- Specialty Bolts
- Product Type:
- Stove Bolt
- Type2:
- Stove Bolt
- Series:
- RSB
- Product Finish:
- Zinc
- Product Details:
- Stove Bolt
- Product Material:
- Steel Zinc
Metallics RSB104 – Frequently Asked Questions
1) Do the Metallics RSB104 stove bolts come with nuts, or do I have to order those separately?
Nuts are included. Each RSB104 1/4-20 x 2 in. stove bolt ships with a hex machine screw nut, which is the nut style cut specifically for machine screw threads. Nothing else is needed to make up the joint other than a washer if your application calls for one.
2) How much material can a 2 inch 1/4-20 stove bolt clamp through?
The RSB104 has a 2 in. shank under a round head, so usable grip is 2 in. minus the thickness of the hex nut and whatever thread engagement you want past it. On typical sheet metal enclosure work that covers stacked panels, standoffs, and strut brackets. At 20 threads per inch, right hand, it mates with any standard 1/4-20 nut or tapped hole.
3) Can I use Metallics RSB104 stove bolts on a Buy American or ARRA funded job?
No. The RSB104 is not Buy American compliant and is not ARRA compliant, with country of origin listed as multiple. On a federally funded project with domestic sourcing requirements you will need a domestically produced 1/4-20 fastener instead.

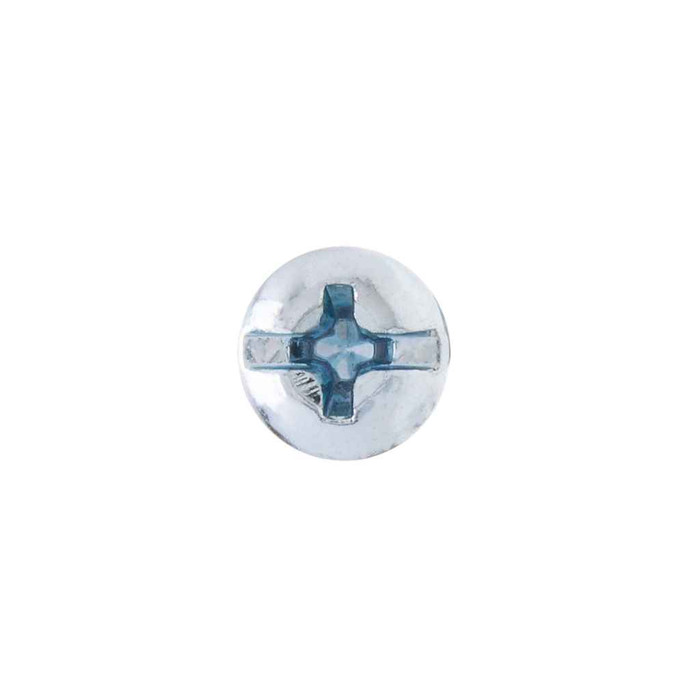

4) What screwdriver do I need for a Metallics RSB104 stove bolt?
Either a flat blade or a #4 Phillips. The head is a combo drive, slotted and Phillips in the same head, so whichever driver is already in the pouch will turn it. The Phillips recess runs 0.255 to 0.268 in. across and 0.147 in. deep; the slot is 0.064 to 0.075 in. wide and 0.082 to 0.109 in. deep.
5) Will the round head on this Metallics stove bolt sit flush, or does it stand proud?
It stands proud. The round head measures 0.443 to 0.472 in. across and 0.16 to 0.175 in. high, so it sits on top of the surface with a domed profile. If you need the head buried level with the panel, a flat head countersunk machine screw with a matching chamfered hole is what you want instead.
6) What dimensional standard do Metallics RSB stove bolts meet, and how strong are they?
Head and drive geometry follow ANSI B18.6.3. The steel is AISI 1006 to 1022 with a hardness of Rockwell B70 to B100 and a minimum tensile strength of 60,000 psi. That is standard commercial machine screw material, fine for enclosure and support work, not a substitute for a graded structural bolt.
7) How many bolts are in a jar of Metallics RSB104, and what is the minimum order?
The RSB104 is sold by the jar of 100 pieces, and one jar is the order minimum. Packed weight for the jar is 3.22 lbs.
