Metallics RSB103 1/4-20 x 1-1/...
IN STOCK (leaves warehouse same day if ordered before 3pm ET)
$50.44
$0.44

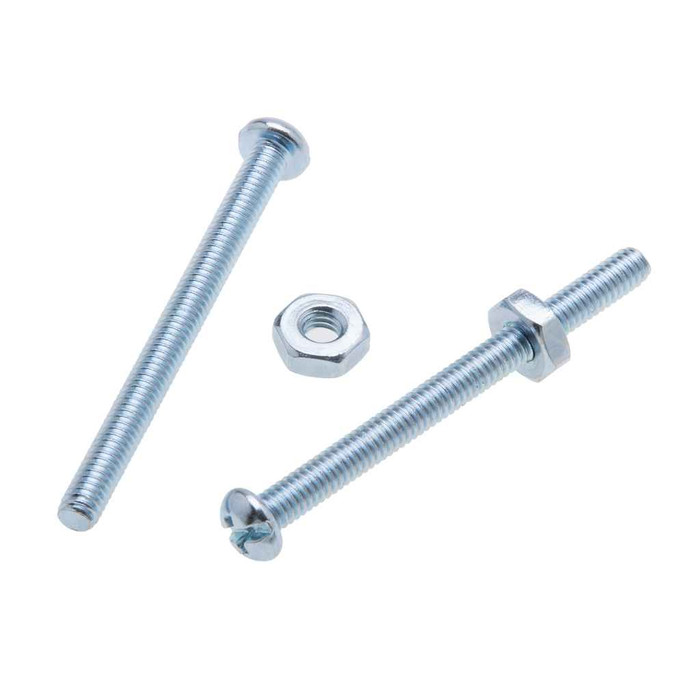

Metallics RSB103 1/4-20 x 1-1/2 in. Round Head Combo Stove Bolt Screws with Hex Nut - Steel Zinc - 100qty

Metallics RSB103 1/4-20 x 1-1/2 in. Round Head Combo Stove Bolt Screws with Hex Nut - Steel Zinc - Each

(No reviews yet) Write a Review

Model: RSB103
Selected Model is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$50.44
$0.44
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like
1/4-20 x 1-1/2 in. Round Head Combo Stove Bolt Screws with Hex Nut - Steel Zinc - 100qty

  • Additional Notes

    • Standard Package Square Plastic Jar | Two drives in one head | other sizes and quantities available by request | Steel machine screws which have a nominal diameter smaller than #4 are not subject to tensile testing. No. 4 and No. 5 machine screws which are shorter than 1/2" are not subject to tensile testing. Steel machine screws of diameters No. 6 to 1/2" inclusive, which are shorter than either 1/2" or 3D (where D is the nominal screw size in inches) are not subject to tensile testing. Such steel machine screws of a size to be tested shall meet the tensile load requirements listed above.

  • Features

    • Hex Machine Screw Nut is designed to be used specifically with machine screws.
    • Includes Hex nut
    • Steel Zinc Material
    • Round head with slotted and Phillips Drive
    • 1/4-20 Diameter, 1-1/2" Length

Manufacturer Resources

Product Specs

Minimum Purchase:
100 units
Arra Compliant:
N
Buy American Compliant:
No
Dimensional Standard:
ANSI B18.6.3
Division:
Electrical H1
Drive Type:
Slotted/Phillips
Driver Size:
#4
Fastener Head Height:
0.16 - 0.175 in.
Fastener Head Type:
Round
Fastener Head Width:
0.443 - 0.472 in.
Fastener Length:
1/1/02
Field Application:
Electrical, Plumbing, Heating, Air Conditioning Industries
Hardness:
Rockwell B70-B100
Language Code:
EN
Material Standard:
AISI 1006 - 1022
Neurspe:
https://ideadigitalasset.com/DAMRoot/Original/10035/11237_ID-SPE-v1-ID-SPE-v1-Stove_Bolt.pdf
Order Minimum Imperial:
100
Order Minimum Uom Imperial:
JR
Pack Type:
Clamshell
Phillips Recess Depth:
0.147
Phillips Recess Diameter:
0.255 - 0.268
Phillips Recess Width:
0.034
Product Group:
Fasteners
Product Height:
4.57 in
Product Length:
3 in
Product Weight:
2.68 lbs
Product Width:
3 in
Slot Depth:
0.082 - 0.109
Slot Width:
0.064 - 0.075
Sub Division:
Electrical-E H2
Tensile Strength:
60000 psi minimum
Thread Direction:
Right Hand
Thread Per Inch:
20
Department:
Electrical
Product Subgroup:
Screws
Product Type:
Stove Bolt
Type2:
Stove Bolt
Series:
RSB
Product Finish:
Zinc
Product Details:
Stove Bolt
Product Material:
Steel Zinc

Metallics RSB103 – Frequently Asked Questions

1) Does the Metallics RSB103 stove bolt come with a nut, or do I order those separately?
A hex machine screw nut ships with each RSB103 bolt, so no separate nut order is needed. The nut is the hex machine screw type, sized specifically for machine screw threads rather than a general hex nut, which matters because the 1/4-20 thread needs the matching 20 threads per inch engagement.
2) Is the RSB103 stove bolt strong enough for structural or load-bearing use?
It is rated at 60,000 psi minimum tensile with a Rockwell B70 to B100 hardness, which is low carbon steel machine screw territory, not a graded structural bolt. Fine for mounting boxes, brackets, straps, and equipment; if a drawing calls for a Grade 5 or Grade 8 bolt, this is not a substitute.
3) Can these be used on a federal or Buy American job?
No. The RSB103 is not Buy American compliant and not ARRA compliant, with country of origin listed as multiple. If your contract carries a domestic sourcing clause, you need a domestically produced fastener instead.
4) What thread size and length is the RSB103 stove bolt?
1/4-20 thread, right hand, 1-1/2 inches long. The 20 threads per inch is the standard UNC coarse pitch for a 1/4 inch bolt, so it mates with any 1/4-20 tapped hole or nut.
5) Can I drive these with a Phillips bit, or do I need a flat blade?
Either. The RSB103 has a combination round head taking both a slotted and a Phillips drive, and the recess calls for a #4 driver. Handy on a panel or box job where you have one driver in hand and a mixed bag of fasteners.
6) How much material thickness can a 1-1/2 inch stove bolt clamp?
With 1-1/2 inches of overall length and the nut needing roughly its own height of thread engagement, the RSB103 handles stacked material a bit over an inch thick in practice. For strut, box, and bracket work that covers most two-part assemblies; thicker stacks need a longer bolt.
7) Are zinc plated stove bolts okay outdoors or in a damp mechanical room?
The RSB103 is steel with a zinc finish, which handles indoor and incidental moisture but is not a marine or sustained wet-location plating. For roof-mounted condensers, coastal sites, or anything standing in water, go stainless.
8) What standard do these Metallics stove bolts conform to?
Dimensions follow ANSI B18.6.3, the machine screw standard, and the steel is AISI 1006 to 1022. That means head, thread, and recess geometry match any other B18.6.3 1/4-20 round head screw, so they interchange with spec-conforming fasteners already on the job.
9) How are the RSB103 bolts packaged and what is the smallest quantity I can buy?
They sell in a 100 piece quantity, with the standard package being a square plastic jar. Other sizes and quantities are available by request.
10) What trades actually use a 1/4-20 combo stove bolt like this?
Metallics lists the RSB103 for the electrical, plumbing, heating, and air conditioning industries. In practice it is the general purpose bolt-and-nut for hanging boxes, securing straps and brackets, and fastening equipment panels where you need a through bolt rather than a tapped thread.
