Metallics RSB101 1/4-20 x 1 in...
IN STOCK (leaves warehouse same day if ordered before 3pm ET)
$50.39
$0.39

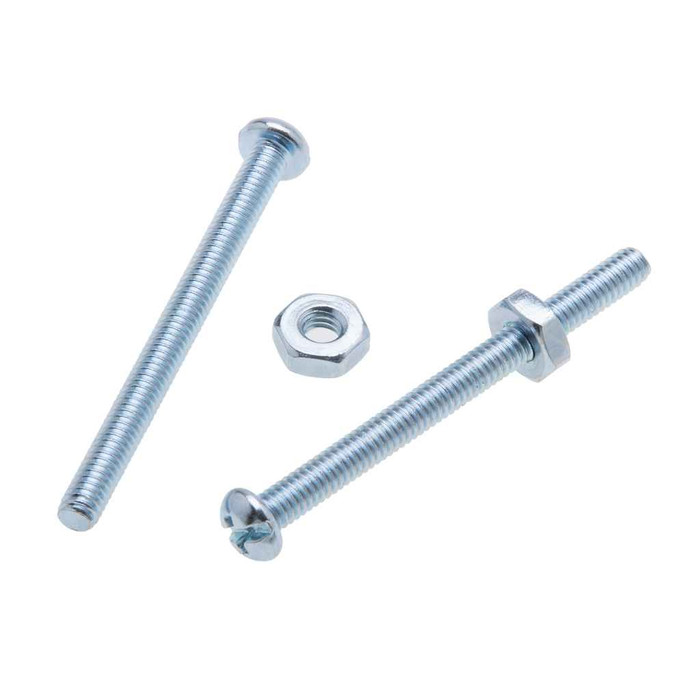

Metallics RSB101 1/4-20 x 1 in. Round Head Combo Stove Bolt Screws with Hex Nut - Steel Zinc - 100qty

Metallics RSB101 1/4-20 x 1 in. Round Head Combo Stove Bolt Screws with Hex Nut - Steel Zinc - Each

(No reviews yet) Write a Review

Model: RSB101
Selected Model is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$50.39
$0.39
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like
1/4-20 x 1 in. Round Head Combo Stove Bolt Screws with Hex Nut - Steel Zinc - 100qty

  • Features

    • Hex Machine Screw Nut is designed to be used specifically with machine screws.
    • Steel Zinc Material
    • Round head with slotted and Phillips Drive
    • Includes Hex nut
    • 1/4-20 Diameter, 1" Length

  • Additional Notes

    • Standard Package Square Plastic Jar | Two drives in one head | other sizes and quantities available by request | Steel machine screws which have a nominal diameter smaller than #4 are not subject to tensile testing. No. 4 and No. 5 machine screws which are shorter than 1/2" are not subject to tensile testing. Steel machine screws of diameters No. 6 to 1/2" inclusive, which are shorter than either 1/2" or 3D (where D is the nominal screw size in inches) are not subject to tensile testing. Such steel machine screws of a size to be tested shall meet the tensile load requirements listed above.

Manufacturer Resources

Product Specs

Minimum Purchase:
100 units
Arra Compliant:
N
Buy American Compliant:
No
Dimensional Standard:
ANSI B18.6.3
Division:
Electrical H1
Drive Type:
Slotted/Phillips
Driver Size:
#4
Fastener Head Height:
0.16 - 0.175 in.
Fastener Head Type:
Round
Fastener Head Width:
0.443 - 0.472 in.
Fastener Length:
1
Field Application:
Electrical, Plumbing, Heating, Air Conditioning Industries
Hardness:
Rockwell B70-B100
Language Code:
EN
Material Standard:
AISI 1006 - 1022
Neurspe:
https://ideadigitalasset.com/DAMRoot/Original/10035/11237_ID-SPE-v1-ID-SPE-v1-Stove_Bolt.pdf
Order Minimum Imperial:
100
Order Minimum Uom Imperial:
JR
Pack Type:
Clamshell
Phillips Recess Depth:
0.147
Phillips Recess Diameter:
0.255 - 0.268
Phillips Recess Width:
0.034
Product Group:
Fasteners
Product Height:
3.6 in
Product Length:
3 in
Product Weight:
2.22 lbs
Product Width:
3 in
Slot Depth:
0.082 - 0.109
Slot Width:
0.064 - 0.075
Sub Division:
Electrical-E H2
Tensile Strength:
60000 psi minimum
Thread Direction:
Right Hand
Thread Per Inch:
20
Department:
Electrical
Product Subgroup:
Screws
Product Type:
Stove Bolt
Type2:
Stove Bolt
Series:
RSB
Product Finish:
Zinc
Product Details:
Stove Bolt
Product Material:
Steel Zinc

Metallics RSB101 – Frequently Asked Questions

1) Does the Metallics RSB101 stove bolt come with nuts, or do I have to buy those separately?
Hex machine screw nuts are included with the RSB101. Each 1/4-20 x 1 inch round head bolt ships with a matching hex nut sized for machine screw threads, so you don't need to source nuts separately for through-bolting a box, bracket or strap.
2) Do these Metallics stove bolts qualify for Buy American or ARRA funded projects?
No. RSB101 is not Buy American compliant and is not ARRA compliant, with country of origin listed as multiple. If your job carries domestic sourcing requirements, this part will not satisfy them and you need a domestically produced fastener.
3) How many 1/4-20 x 1 in. Metallics stove bolts come in a jar?
RSB101 is sold in a 100-piece jar, and 100 is the order minimum. The standard pack is a square plastic jar; clamshell packaging is also used for this line. Other sizes and quantities are available by request.
4) Are these zinc stove bolts okay for outdoor or damp locations?
The RSB101 is low carbon steel with a zinc finish. Zinc plating handles dry indoor and protected locations well, and it tolerates incidental moisture, but it is not stainless. For wet locations, exterior rooftop work, coastal exposure or anywhere washdown chemicals are present, specify stainless steel fasteners instead.
5) How strong is the Metallics RSB101 stove bolt, and can I use it for a structural connection?
Rated at 60,000 psi minimum tensile with a hardness of Rockwell B70 to B100, made from AISI 1006 to 1022 steel. That is standard low carbon machine screw strength, fine for mounting boxes, straps, covers, panels and equipment brackets. It is not a structural or high strength bolt, so don't substitute it where a drawing calls out a graded hex cap screw.
6) Should I use a round head stove bolt or a flat head machine screw?
Pick the round head RSB101 when the fastener can sit on the surface and you want a wider bearing face against thin metal. Its head stands 0.16 to 0.175 inch above the work, so it is wrong anywhere something slides across it or a cover plate has to seat flush. For a countersunk hole or a flush face, use a flat head machine screw instead.
7) What trades actually use a round head combo stove bolt like this?
Metallics lists the RSB101 for the electrical, plumbing, heating and air conditioning trades. In practice that means mounting junction and device boxes, hanging straps and clamps, fastening duct brackets and equipment covers, and any place a 1/4-20 through bolt with a nut is faster than tapping. The round head sits proud with a broad bearing surface, so it spreads load on sheet metal better than a flat head.
