Metallics JFM100SS 1/4-20 x 3/...
IN STOCK (leaves warehouse same day if ordered before 3pm ET)
$192.86

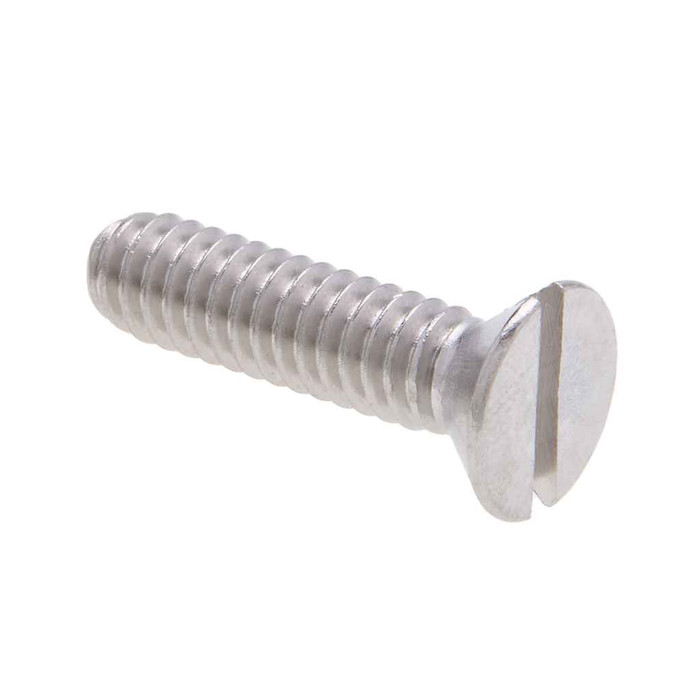

Metallics JFM100SS 1/4-20 x 3/4 in. Flat Head Slotted Machine Screws - 18-8 Stainless - 100qty

Metallics JFM100SS 1/4-20 x 3/4 in. Flat Head Slotted Machine Screws - 18-8 Stainless - Each

(No reviews yet) Write a Review

Model: JFM100SS
Selected Model is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$192.86
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like
1/4-20 x 3/4 in. Flat Head Slotted Machine Screws - 18-8 Stainless - 100qty

  • Additional Notes

    • Other sizes and quantities available by request | Hardness and tensile strength standards are offered as guides only for stainless machine screws. There is currently no national standard for these performance requirements for stainless machine screws.

  • Features

    • Stainless steel machine screws are used in applications which require general atmospheric corrosion resistance, in food processing machinery and refrigeration equipment.
    • Stainless is also superior to steel in withstanding some elevation in application operating temperature while maintaining its strength.
    • Flat head with slotted Drive
    • 1/4-20 Diameter, 3/4" Length
    • 18-8 Stainless Material

Manufacturer Resources

Product Specs

Minimum Purchase:
100 units
Arra Compliant:
N
Buy American Compliant:
No
Dimensional Standard:
ASME B18.6.3-1998
Division:
Electrical H1
Drive Type:
Slotted
Fastener Head Height:
0.131 - 0.153 in.
Fastener Head Type:
Flat
Fastener Head Width:
0.442 - 0.477 in.
Fastener Length:
4-Mar
Field Application:
Electrical, Plumbing, Heating and Air Conditioning Industries
Hardness:
Rockwell B85-B95
Language Code:
EN
Material Standard:
SAE
Neurspe:
https://ideadigitalasset.com/DAMRoot/Original/10035/11237_ID-SPE-v1-ID-SPE-v1-Flat_Head_Mach_Screw.pdf
Order Minimum Imperial:
100
Order Minimum Uom Imperial:
JR
Pack Type:
Jar
Product Group:
Fasteners
Product Height:
2.15 in
Product Length:
3 in
Product Weight:
1.08 lbs
Product Width:
3 in
Slot Depth:
0.046 - 0.07
Slot Width:
0.064 - 0.075
Sub Division:
Electrical-E H2
Tensile Strength:
1900 lb minimum
Thread Per Inch:
20
Thread Standard:
ANSI/ASME B1.1
Thread Type:
UNC
Department:
Electrical
Product Subgroup:
Screws
Product Type:
Machine Screw
Type2:
Machine Screw
Series:
FM and FMP
Product Details:
Machine Screw
Product Material:
18-8 Stainless

Metallics JFM100SS – Frequently Asked Questions

1) Will the Metallics JFM100SS machine screw thread into a 1/4-20 tapped hole or nut?
Yes. The JFM100SS is a 1/4-20 UNC screw, 20 threads per inch, cut to ANSI/ASME B1.1, so it mates with any standard 1/4-20 tapped hole, nut, or strut channel nut. Shank length under the head is 3/4 inch, so your grip plus nut engagement has to fall inside that.
2) Will a 1/4-20 flat head screw sit flush in my countersunk hole?
It will if the countersink matches an 82 degree flat head of this size. Head width on the JFM100SS runs 0.442 to 0.477 in. and head height 0.131 to 0.153 in., per ASME B18.6.3-1998 flat head geometry. If your plate is drilled straight through with no chamfer, the head will stand proud and you want a pan or round head instead.
3) Are the Metallics JFM100SS screws Buy American or ARRA compliant for a government job?
No. The JFM100SS is not Buy American compliant and is not ARRA compliant, and country of origin is listed as multiple. If your project has domestic-sourcing requirements, this is not the fastener to submit.
4) Is 18-8 stainless the right choice for outdoor or wash-down equipment?
That is what it is for. 18-8 stainless machine screws are used where general atmospheric corrosion resistance is needed, including food processing machinery and refrigeration equipment, and they hold strength better than plain steel at elevated operating temperatures. For salt spray or chlorinated environments, 316 stainless is the step up.
5) How many Metallics JFM100SS screws come in a jar, and can I buy just a few?
These ship 100 to a jar, and the jar is the order minimum, so it is a full 100-count package rather than a loose count. The packaged jar weighs 1.08 lbs.
6) Can I use these stainless machine screws for mounting electrical boxes and HVAC panels?
Yes, the field application for these 1/4-20 flat head stainless screws is the electrical, plumbing, heating and air conditioning trades. Typical use is fastening into pre-tapped or nutted holes in boxes, enclosures, straps, and panels. They are machine screws, not self-tappers, so the hole has to be threaded or carry a nut.
