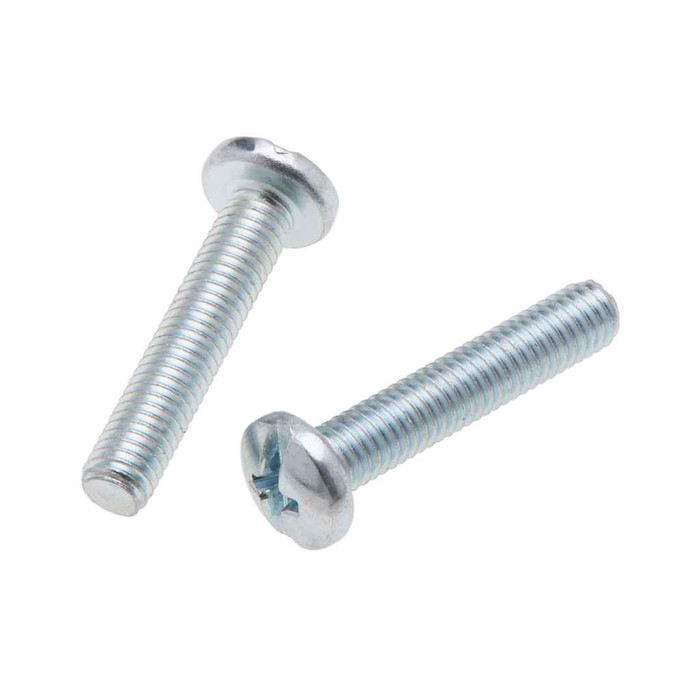

Metallics JPMP100 1/4-20 x 3/4 in. Pan Head Phillips Machine Screws - Steel Zinc - 100qty

Metallics JPMP100 1/4-20 x 3/4 in. Pan Head Phillips Machine Screws - Steel Zinc - Each

(No reviews yet) Write a Review

Model: JPMP100
Selected Model is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$50.56
$0.56
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like
1/4-20 x 3/4 in. Pan Head Phillips Machine Screws - Steel Zinc - 100qty

  • Additional Notes

    • Other sizes and quantities available by request | Tensile strength values for stainless screws are offered as approximations only; there is no single standard for the performance requirements of stainless machine screws.

  • Features

    • Steel Zinc Material
    • Pan head with Phillips Drive
    • 1/4-20 Diameter, 3/4" Length

Manufacturer Resources

Product Specs

Minimum Purchase:
100 units
Arra Compliant:
N
Buy American Compliant:
No
Dimensional Standard:
ASME B18.6.3-2010
Division:
Electrical H1
Drive Type:
Phillips
Driver Size:
#3
Fastener Head Height:
0.162 - 0.175 in.
Fastener Head Type:
Pan
Fastener Head Width:
0.473 - 0.492 in.
Fastener Length:
4-Mar
Field Application:
Electrical, Plumbing, Heating and Air Conditioning Industries
Hardness:
Rockwell B70-B100
Language Code:
EN
Material Standard:
AISI 1006 - 1022
Neurspe:
https://ideadigitalasset.com/DAMRoot/Original/10035/11237_ID-SPE-v1-ID-SPE-v1-Pan_Head_Screw_St_SS.pdf
Order Minimum Imperial:
100
Order Minimum Uom Imperial:
JR
Pack Type:
Jar
Phillips Recess Diameter:
0.274
Product Group:
Fasteners
Product Height:
2.7 in
Product Length:
3 in
Product Weight:
1.442 lbs
Product Width:
3 in
Recess Penetration Gaging Depth:
0.118 - 0.144
Sub Division:
Electrical-E H2
Tensile Strength:
60000 psi minimum
Thread Per Inch:
20
Department:
Electrical
Product Subgroup:
Screws
Product Type:
Machine Screw
Type2:
Machine Screw
Series:
PMP
Product Finish:
Zinc
Product Details:
Machine Screw
Product Material:
Steel Zinc

Metallics JPMP100 – Frequently Asked Questions

1) How many screws come in the Metallics JPMP100 1/4-20 machine screw pack?
JPMP100 ships as a jar of 100 screws, and 100 is the order minimum, so one jar is the smallest buy. Each screw is 1/4-20 x 3/4 in., pan head Phillips, zinc plated steel.
2) Are the Metallics JPMP100 screws Buy American or ARRA compliant?
No. The JPMP100 is not Buy American compliant and is not ARRA compliant, with multiple countries of origin. If your project carries a domestic sourcing requirement, these will not satisfy it.
3) How strong are the Metallics JPMP100 steel machine screws?
Minimum tensile strength is 60,000 psi, with hardness in the Rockwell B70 to B100 range, made from AISI 1006 to 1022 low carbon steel. That is standard commercial machine screw strength, fine for mounting devices, covers, brackets, and fixture hardware, not for structural or high preload joints.
4) Do these machine screws meet a recognized dimensional spec?
They are made to ASME B18.6.3-2010, the dimensional standard for pan head machine screws, so head diameter, head height, and recess geometry are interchangeable with any other screw built to that standard.
5) Can zinc plated steel machine screws be used outdoors or in wet locations?
Zinc plating on steel is a mild corrosion coating meant for dry indoor and protected work. For damp, wet, or exterior locations, specify a stainless machine screw in the same 1/4-20 x 3/4 in. size instead.
6) What trades use 1/4-20 x 3/4 in. pan head Phillips machine screws?
They are stocked for electrical, plumbing, and heating and air conditioning work: mounting devices and plates, strut and channel hardware, equipment covers, and bracket attachment into tapped holes or nuts. Pan head with a Phillips recess is the general purpose combination for that kind of assembly.
7) How much does a jar of 100 of these 1/4-20 screws weigh?
1.442 lbs for the jar. Useful if you are building out a kit weight or a van stock list.
