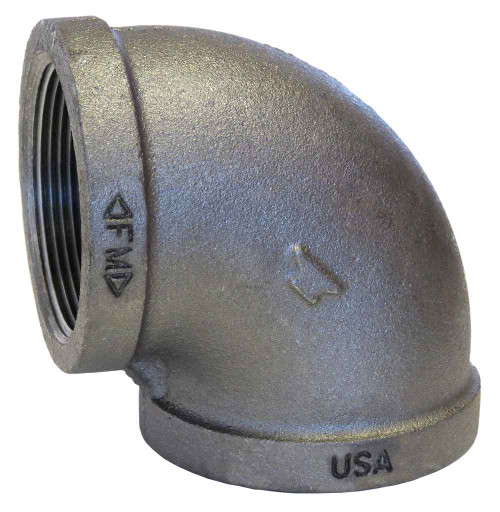

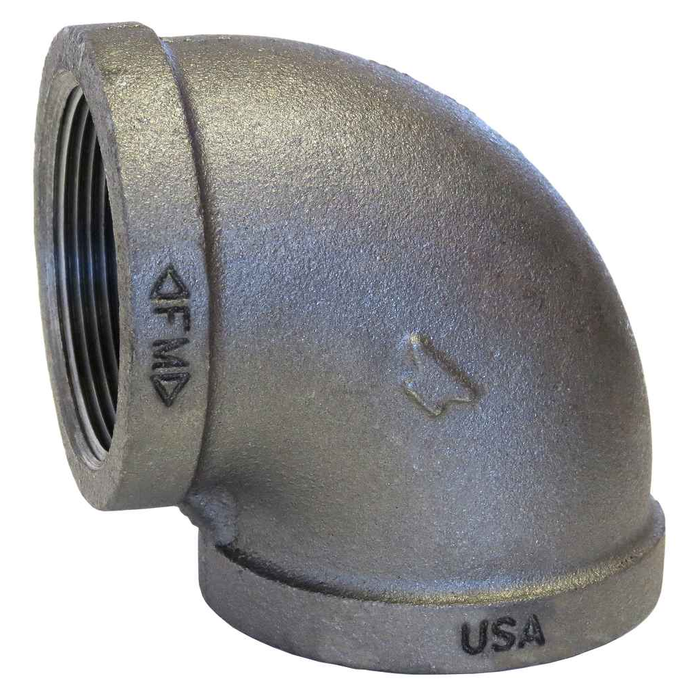

1/4 GALV MI 90 ELL
Manufacturer Resources
Product Specs
- Dimensions Specification:
- ASME B16.3
- End Conn Size 1:
- FPT
- End Conn Size 2:
- FPT
- Finish Specification:
- ASTM A-153
- Material Specification:
- ASTM A-197
- Pressure Rating Specification:
- ASME B16.3
- Size 1:
- 0.25
- Size 2:
- 0.25
- Strength:
- STD
- Thread Specification:
- ASME B1.20.1
- Ul Fm:
- Yes
- Department:
- Plumbing
- Product Group:
- Pipe Fittings
- Product Subgroup:
- Elbows
- Product Type:
- 90° Elbow
- Product Finish:
- Galvanized
- Product Material:
- Malleable Iron
- Product Weight:
- 0.11 lbs
ASC Engineered Solutions 311000400 – Frequently Asked Questions
1) Are both ends of the 1/4 inch galvanized malleable iron 90 degree elbow female threaded?
Both openings are 1/4 inch FPT, so the elbow takes male threaded pipe or nipples on each side. Threads are cut to ASME B1.20.1 (NPT), which is what standard black or galvanized steel pipe and nipples are threaded to. Nothing solders or presses onto it.
2) What kind of galvanizing is on this fitting, and will it hold up outdoors?
The coating is applied to ASTM A-153, the hot dip galvanizing spec for iron and steel hardware. That is a thicker sacrificial zinc layer than electroplating and is what gets specified for damp, exterior, and underground-adjacent threaded fittings.
3) What is the part number and weight for a 1/4 inch galvanized 90 elbow from ASC Engineered Solutions?
Manufacturer part number 311000400, weighing 0.11 lbs each. Handy if you are pricing out a bulk carton or checking a freight class on a large fitting order.
4) Do I need thread sealant with this elbow, or does it seal on its own?
It seals on the NPT taper, so you still need pipe dope or PTFE tape on the male threads going into it. No gasket, washer, or O-ring is part of the fitting, and none is supplied.
