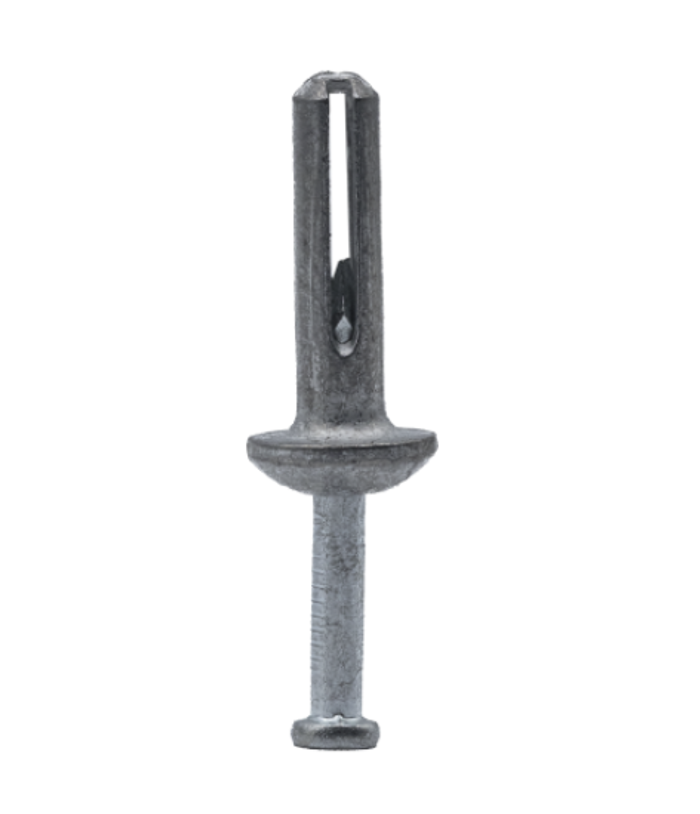

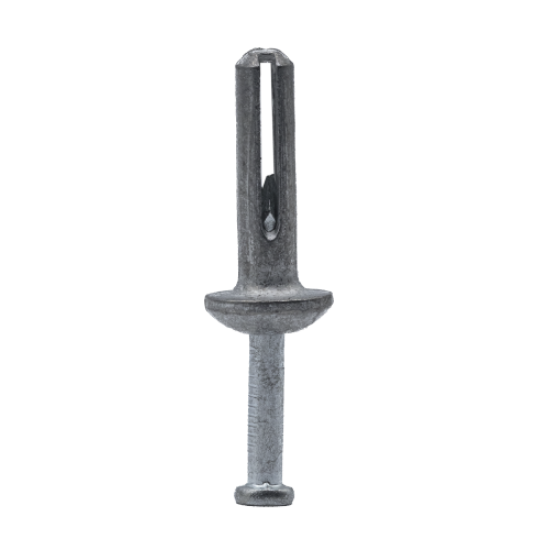

Minerallac 1/4" x 1-1/4" Zamac Hammer Drive Anchors - Zinc Plated Light Duty Concrete & Masonry Installation System, 100 Pack

Minerallac 1/4" x 1-1/4" Zamac Hammer Drive Anchors - Zinc Plated Light Duty Concrete & Masonry Installation System, 100 Pack

(No reviews yet) Write a Review

Model: 59020J

In Stock (leaves warehouse same day if ordered before 3pm ET)

$50.81
$0.76
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

Minerallac 1/4" x 1-1/4" Zamac Hammer Drive Anchors - Zinc Plated Light Duty Concrete & Masonry Installation System

Professional Concrete & Masonry Fastening Solution

Minerallac hammer drive anchors deliver reliable fastening performance for light duty applications in solid concrete, solid brick, block, and masonry walls. These zinc alloy anchors feature zinc plated finish for corrosion resistance and mushroom head design for secure attachment of termination bars and electrical components. The tamper-resistant finished assembly provides immediate loading capabilities with ease of installation.

Professional Features & Benefits

  • 1/4" x 1-1/4" Size: Optimal dimensions for light duty concrete and masonry applications with reliable holding power
  • Zinc Alloy Construction: Durable zamac material provides consistent performance and long-term reliability in masonry installations
  • Zinc Plated Finish: Corrosion-resistant coating ensures lasting performance in various environmental conditions
  • Mushroom Head Design: Provides secure attachment surface and tamper-resistant finished assembly
  • Immediate Loading Capability: Ready for service immediately after installation without curing time requirements
  • Light Duty Rating: Engineered specifically for appropriate load applications in concrete, brick, and block substrates

Technical Specifications

  • Country Of Origin: Vietnam
  • Drill Size: 4-Jan
  • Head Diameter: 0.547
  • Head Type: Mushroom Head
  • Minimum Embedment Depth: 0.875
  • Product Diameter: 0.25
  • Product Finish: Zinc Plated
  • Product Length: 1.250 in
  • Product Material: Zinc Alloy
  • Product Size: 1/4" x 1-1/4
  • Product Type: Hammer Drive Anchors
  • Warning: Not recommended for vibrating loads or overhead installations

Professional Applications

  • Electrical termination bar mounting in concrete structures
  • Light duty fastening in solid brick construction
  • Block and masonry wall installations
  • Commercial building electrical systems
  • Industrial facility concrete anchoring
  • Residential masonry applications

Why Choose Minerallac Quality?

Minerallac hammer drive anchors provide professional-grade reliability with zinc plated corrosion resistance and immediate loading capabilities. The tamper-resistant mushroom head design ensures secure installations while the zinc alloy construction delivers consistent performance in concrete and masonry applications.

Manufacturer Resources

Product Specs

Drill Size:
4-Jan
Head Diameter:
0.547
Head Type:
Mushroom Head
Minimum Embedment Depth:
0.875
Product Diameter:
0.25
Product Finish:
Zinc Plated
Product Length:
1.250 in
Product Material:
Zinc Alloy
Product Size:
1/4" x 1-1/4
Product Type:
Concrete Anchor
Warning:
Not recommended for vibrating loads or overhead installations
Department:
Electrical
Product Subgroup:
Anchors
Product Group:
Hangers, Supports & Fasteners

Minerallac 59020J – Frequently Asked Questions

1) What size hole do I drill for a 1/4 inch hammer drive anchor, and how deep does it have to go?
The Minerallac 59020J nail-in anchor is 0.25 inch in diameter, so it drops into a 1/4 inch hole drilled with a carbide bit. Minimum embedment is 0.875 inch, and the anchor's overall length is 1.250 inch, so the hole has to be deeper than the fixture thickness plus that 7/8 inch of grip. Drill past the embedment depth so dust at the bottom doesn't stop the pin from seating flush.
2) Can I use these hammer drive anchors overhead for hanging conduit or strut?
No. Minerallac specifically warns these zamac drive anchors are not recommended for overhead installations or vibrating loads. For overhead conduit, strut, or anything that sees machinery vibration, use a mechanical expansion anchor or a screw anchor rated for that service. These are for light duty wall and floor work in solid concrete, brick, and block.
3) Will these anchors hold in hollow block or drywall?
They are meant for solid base material: solid concrete, solid brick, and block or masonry walls. The zamac body expands against the sides of the drilled hole, so it needs solid material around it. In a hollow cell of a CMU, or in drywall, there is nothing to expand against, so use a toggle or a hollow wall anchor there instead.
4) Can I load the fixture right after driving the anchor?
Yes. Nail-in drive anchors like the 59020J reach full holding as the pin is hammered home, so there is no cure or set time. Drill, insert, drive the pin flush, and the connection carries load immediately. That is the main reason crews use them for termination bars and light strapping instead of adhesive anchors.
5) Are Minerallac zamac drive anchors okay in damp locations?
The zinc alloy body carries a zinc plated finish for corrosion resistance, which handles typical interior and sheltered damp conditions. For direct exposure to weather, chlorides, or chemical wash down, step up to a stainless fastener instead; zinc plating is a sacrificial coating, not a stainless substitute.
6) Is the Minerallac 59020J sold loose or in a jar, and how many come in it?
Model 59020J ships as a 100 piece pack, jar packaged, all one size at 1/4 inch by 1-1/4 inch. There is a single model on the item, so there is nothing else to specify beyond quantity of jars.
