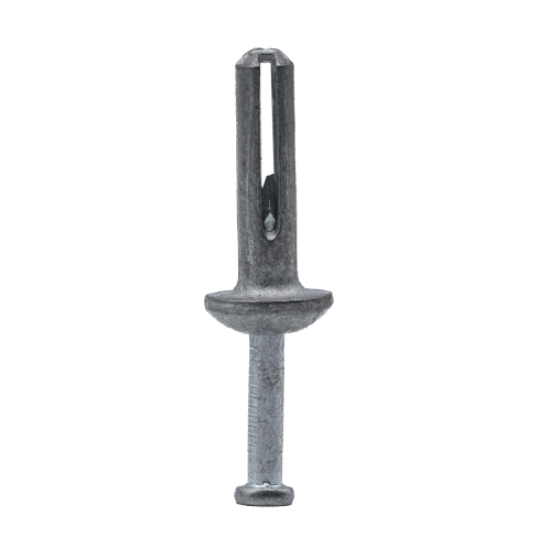

Minerallac 1/4" x 1" Zinc Alloy Hammer Drive Anchors with Mushroom Head
Professional Light Duty Masonry Fastening Solution
Minerallac hammer drive anchors deliver reliable fastening performance for light duty applications in solid concrete, solid brick, block, and masonry walls. These zinc alloy anchors feature a mushroom head design with zinc plated finish for corrosion resistance and professional appearance. Designed specifically for attaching termination bars and similar components, these anchors provide immediate loading capabilities upon installation.
Professional Features & Benefits
- 1/4" x 1" Zinc Alloy Construction: Provides reliable holding power and corrosion resistance for long-term performance in masonry applications.
- Mushroom Head Design: Delivers secure attachment with professional appearance and tamper-resistant finished assembly.
- Zinc Plated Finish: Enhances corrosion protection and extends service life in various environmental conditions.
- Immediate Loading Capability: Allows for instant use after installation without waiting periods or curing time.
- 0.75" Minimum Embedment Depth: Ensures proper anchor engagement and holding strength in approved substrates.
- Light Duty Rating: Optimized for appropriate load applications in solid concrete, brick, and block installations.
Technical Specifications
- Country Of Origin: Vietnam
- Drill Size: 4-Jan
- Head Diameter: 0.547
- Head Type: Mushroom Head
- Minimum Embedment Depth: 0.75
- Product Diameter: 0.25
- Product Finish: Zinc Plated
- Product Length: 1.000 in
- Product Material: Zinc Alloy
- Product Size: 1/4" x 1
- Product Type: Hammer Drive Anchors
- Warning: Not recommended for vibrating loads or overhead installations
Professional Applications
- Electrical Termination Bar Mounting
- Light Duty Masonry Attachments
- Solid Concrete Installations
- Brick and Block Wall Fastening
- Commercial Building Applications
- Residential Masonry Projects
Why Choose Minerallac Quality?
Minerallac hammer drive anchors combine zinc alloy durability with professional-grade zinc plated finish for reliable masonry fastening performance. The tamper-resistant mushroom head design and immediate loading capabilities ensure secure, long-lasting installations in approved substrates.
Manufacturer Resources
Product Specs
- Drill Size:
- 4-Jan
- Head Diameter:
- 0.547
- Head Type:
- Mushroom Head
- Minimum Embedment Depth:
- 0.75
- Product Diameter:
- 0.25
- Product Finish:
- Zinc Plated
- Product Length:
- 1.000 in
- Product Material:
- Zinc Alloy
- Product Size:
- 1/4" x 1
- Product Type:
- Concrete Anchor
- Warning:
- Not recommended for vibrating loads or overhead installations
- Department:
- Electrical
- Product Subgroup:
- Anchors
- Product Group:
- Hangers, Supports & Fasteners
Minerallac 59016J – Frequently Asked Questions
1) What size hole do I drill for a 1/4 inch hammer drive anchor, and how deep does it have to go?
The Minerallac 59016J hammer drive anchor is a 1/4 inch diameter anchor with a 1/4 inch drill size, so the hole matches the anchor body. Minimum embedment is 0.75 inches. Since the anchor is only 1.000 inch long overall, you have very little room to play with: drill deeper than the finished embedment so the pin has somewhere to go, and keep the material you are fastening thin enough that at least 3/4 inch of the anchor still sits in the masonry. Fastening a 1/4 inch thick termination bar leaves exactly 3/4 inch in the wall, which is the floor, not a margin.
2) Can I use hammer drive anchors in hollow block, drywall, or mortar joints?
No. These zinc alloy drive anchors are rated for solid concrete, solid brick, block and masonry only. A drive pin expands the anchor body against solid material; in a hollow cell or in soft mortar there is nothing for it to bear against and the anchor spins or pulls straight out. Drywall and hollow wall need a toggle or a screw-in wall anchor instead. If you are drilling into a block wall, hit the solid web or a fully grouted cell, not the void.
3) Can I hang conduit or a fixture overhead with a 1/4 x 1 inch drive anchor?
No, and this is the one that gets people in trouble. The 59016J is specifically not recommended for vibrating loads or overhead installations. Overhead conduit, strut, light fixtures and anything on a motor or compressor line all fall outside what this anchor is meant to hold. Drive anchors of this type are a light duty, face-mount fastener. For overhead support use a rated wedge anchor, screw anchor or drop-in with a proper anchor body sized to the load.
4) Are Minerallac 59016J anchors the right fastener for mounting a termination bar on a concrete wall?
That is exactly the job these are built for. The 1/4 x 1 inch drive anchor is called out for attaching termination bars and similar light components to solid concrete, brick and block, and it takes load immediately after the pin is driven, so you can run your bar and move on without waiting on an adhesive to cure. Drill 1/4 inch, hold the bar, drop the anchor through, and set the pin with a hammer.
5) Can a hammer drive anchor be removed later, or is it permanent?
Treat it as permanent. The mushroom head has no drive recess, so there is nothing to back it out with, and that is what makes the finished assembly tamper resistant. Removal means grinding or drilling the head off and either punching the body deeper or leaving it. If you expect to service or relocate the equipment, use a removable anchor with a threaded fastener instead.
6) Will zinc plated drive anchors hold up outdoors or in a damp mechanical room?
The zinc alloy body with a zinc plated finish gives corrosion resistance for general interior and sheltered exterior use. Zinc plating is a sacrificial coating, not stainless, so in a wet, chemically aggressive or coastal setting it will eventually give up. For a pool room, a wash-down area or direct salt exposure, specify a stainless anchor.
7) Do I need a special tool to install Minerallac drive anchors?
A hammer and a 1/4 inch carbide masonry bit in a hammer drill is the whole tool list. Drill the hole through the part you are fastening into the masonry, seat the anchor, then drive the pin flush with the mushroom head. No setting tool, no torque wrench, no cure time. Blow or vacuum the dust out of the hole first, since packed dust keeps the anchor from reaching the 0.75 inch minimum embedment.
