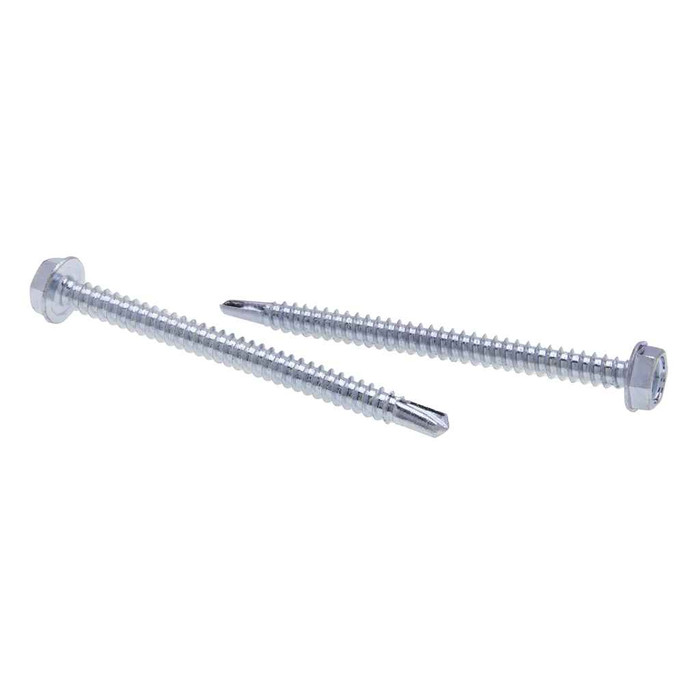

Metallics JTEKD34V 14 x 2 in. 3/8 Indented Hex Head Self-Drilling & Tapping Screws with Washer - #3 Drill Point - Steel Zinc - 500qty

Metallics JTEKD34V 14 x 2 in. 3/8 Indented Hex Head Self-Drilling & Tapping Screws with Washer - #3 Drill Point - Steel Zinc - Each

(No reviews yet) Write a Review

Model: JTEKD34V
Selected Model is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$50.93
$1.70
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like
14 x 2 in. 3/8 Indented Hex Head Self-Drilling & Tapping Screws with Washer - #3 Drill Point - Steel Zinc - 500qty

  • Features

    • #3 Drill Point
    • Minimum torques are the same for stainless and steel self-drill screws. Drill time is 2.5 seconds for a 1 mm thick plate.
    • 3/8 Indented Hex Head with Hex Drive
    • 14 Diameter, 2" Length
    • Steel Zinc Material

  • Additional Notes

    • Other sizes and quantities available by request. | SAE J78 does not include Specifications for #7 diameter drill screws. | This table is only a guide and does not constitute a warranty of any type.

Manufacturer Resources

Product Specs

Minimum Purchase:
500 units
Arra Compliant:
C
Buy American Compliant:
C
Dimensional Standard:
ASME B18.6.3-2010
Division:
Electrical H1
Drill Point Size:
#3
Drive Type:
Hex
Fastener Head Color:
Silver
Fastener Head Height:
0.172 - 0.19 in.
Fastener Head Type:
Indented Hex
Fastener Head Width:
0.367 - 0.375 in.
Fastener Length:
2
Hardness:
Rockwell C32-40
Language Code:
EN
Material Standard:
AISI 1016 - 1024
Neurspe:
https://ideadigitalasset.com/DAMRoot/Original/10035/11237_ID-SPE-v1-ID-SPE-v1-Hex_Head_Self-Drill_TS_Indent_Hex_Washer.pdf
Order Minimum Imperial:
500
Order Minimum Uom Imperial:
CT
Pack Type:
Jar
Product Group:
Fasteners
Product Height:
6 in
Product Length:
7.25 in
Product Weight:
12.2 lbs
Product Width:
6.25 in
Screw Point Type:
Drill Point
Slot Depth:
0.083 - 0.101
Slot Width:
0.064 - 0.075
Sub Division:
Electrical-E H2
Thread Per Inch:
14
Thread Standard:
SAE J78 - 2013
Thread Type:
UNC
Washer Od:
0.480 - 0.520 in.
Washer Thickness:
0.030 - 0.050 IN
Width Across Corners:
0.409
Department:
Electrical
Product Subgroup:
Screws
Product Type:
Type BSD Self-Drilling & Tapping Screw
Type2:
Type BSD Self-Drilling & Tapping Screw
Series:
JTEKD
Product Finish:
Zinc
Product Details:
Type BSD Self-Drilling & Tapping Screw
Product Material:
Steel Zinc

Metallics JTEKD34V – Frequently Asked Questions

1) Do I need a pilot hole for the Metallics JTEKD34V screws?
No pilot hole. It is a Type BSD self-drilling and tapping screw, meaning the drill point cuts its own hole and the thread taps it in one pass. Drive it with a hex driver, not a slotted or Phillips bit.
2) What thread and length is the JTEKD34V, and what standards does it meet?
A #14 diameter screw, 2 inches long, with 14 threads per inch in UNC form. Threads are made to SAE J78 - 2013 and head dimensions to ASME B18.6.3-2010, with material to AISI 1016 - 1024 and case hardness of Rockwell C32-40. Note that SAE J78 does not cover #7 diameter drill screws.
3) Do these Metallics self-drilling screws qualify for Buy American or ARRA funded work?
The JTEKD34V is flagged both Buy American compliant and ARRA compliant. Country of origin is listed as multiple, so if your contract requires a single named origin on the submittal, confirm the origin of the specific lot you receive.
4) What size driver or socket fits the 3/8 indented hex washer head?
Head width measures 0.367 to 0.375 inch across the flats, with 0.409 inch across the corners, so a 3/8 inch hex driver or magnetic nut setter seats it. Head height runs 0.172 to 0.190 inch.
5) Is the washer built into the head or a loose piece I have to add?
It is an integral hex washer head, nothing separate to install. The washer flange runs 0.480 to 0.520 inch outside diameter and 0.030 to 0.050 inch thick, which spreads the bearing load over strut, clips, and sheet without a separate finish washer.
6) How many Metallics JTEKD34V screws come in a jar and can I buy a smaller count?
They ship as a 500 count jar, and 500 is the order minimum. Other sizes and quantities are available by request.
7) Will zinc plated steel self-drilling screws hold up outdoors or in a damp mechanical room?
The JTEKD34V is zinc plated carbon steel, silver in appearance. Zinc plating is an indoor and sheltered-use coating. For direct exterior exposure, a coastal site, or wet process areas, specify a stainless self-drilling screw instead.
8) How much does a 500 count jar of these screws weigh?
The 500 count jar is listed at 12.2 lbs, with the packed carton at 7.25 by 6.25 by 6 inches. Useful if you are staging material by floor or shipping to a job site locker.
