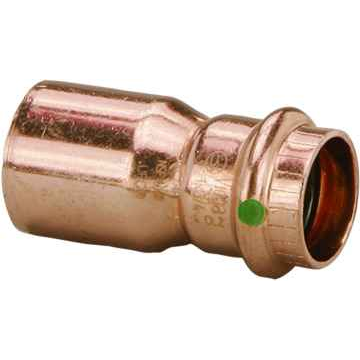

14543 Viega ProPress reducer Smart Connect technology Copper, 1-1/2'' x 3/4''
Manufacturer Resources
Product Specs
- Connection Type:
- FTG x P
- Material Type:
- Copper
- Product Dimension:
- 1-1/2'' x 3/4''
- Department:
- Plumbing
- Product Group:
- Plumbing Fittings
- Product Subgroup:
- Reducers
- Product Type:
- Reducer
- Product Length:
- 1.626"
- Product Height:
- 1.626"
- Product Weight:
- 0.277 lbs
- Product Width:
- 3.465"
- Product Material:
- Copper
Viega 14543 – Frequently Asked Questions
1) What does FTG x P mean on the Viega 14543 ProPress reducer?
FTG x P is the end configuration of the Viega 14543 reducer: the 1-1/2 inch end is a fitting (FTG) end sized like copper tube so it inserts INTO another 1-1/2 inch press fitting or socket, while the 3/4 inch end is a press (P) socket that receives 3/4 inch copper tube. So you are not pressing 1-1/2 inch tube into this part, you are pressing the part into a 1-1/2 inch fitting and bringing 3/4 inch tube out the other side.
2) Will a Viega ProPress reducer work on a 1-1/2 inch branch where I need to drop to 3/4 inch for a fixture?
That is exactly the transition this part makes. The 14543 takes a 1-1/2 inch line down to 3/4 inch in one fitting, so a 3/4 inch fixture drop or branch off a 1-1/2 inch copper run needs no bushing stack. Because the large end is an FTG end, it has to land in a 1-1/2 inch press socket, such as a tee or coupling outlet, rather than onto bare 1-1/2 inch tube.
3) What is Smart Connect on the Viega 14543, and what does it do for me on an inspection?
Smart Connect is a feature of the Viega ProPress sealing element that leaks a small amount of water at an unpressed connection during pressure test, so an unpressed joint shows itself before the wall closes up. It does not replace pressing the joint, it just makes a missed press visible.
