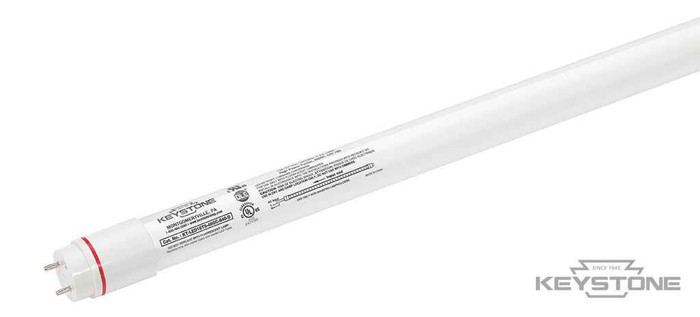

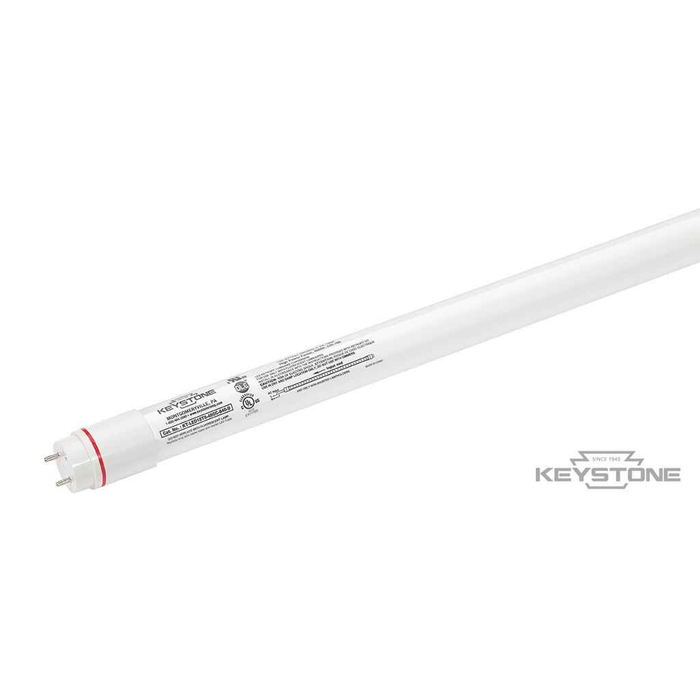

Keystone LED T8 Tube Light 14.5W 1900 Lumen Direct Drive Ballast Bypass System

Keystone LED T8 Tube Light 14.5W 1900 Lumen Direct Drive Ballast Bypass System

(No reviews yet) Write a Review

Model: KT-LED14.5T8-48G-835-DX2
Selected Model is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$66.46
$21.54
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

Keystone LED T8 Tube Light 14.5W 1900 Lumen Direct Drive Ballast Bypass System

Professional LED lighting solution with ballast bypass technology

The Keystone LED T8 Tube Light delivers professional-grade illumination with 14.5W power consumption and 1900 lumen output. This direct drive system features ballast bypass technology for enhanced efficiency and reliability, operating on 120-277V with a 240� beam angle for comprehensive light distribution. DLC 4.0 qualified for energy efficiency programs.

Professional Features & Benefits

  • 14.5W Power Rating: Delivers efficient operation while providing substantial 1900 lumen light output for professional applications.
  • Direct Drive Technology: Ballast bypass design eliminates ballast dependency, reducing maintenance requirements and improving long-term reliability.
  • 120-277V Operation: Universal voltage compatibility ensures installation flexibility across residential and commercial electrical systems.
  • 240� Beam Angle: Wide light distribution pattern provides comprehensive illumination coverage for optimal workspace lighting.
  • 50,000 Hour Rated Life: Extended operational lifespan reduces replacement frequency and maintenance costs in professional installations.
  • DLC 4.0 Qualification: Meets energy efficiency standards for utility rebate programs and sustainable lighting initiatives.
  • 5-Year Warranty: Comprehensive coverage ensures reliable performance and professional peace of mind.

Technical Specifications

  • Classification: Light Sources
  • Color Temperature (CRI): 5000
  • Part Type: Direct Drive
  • Rate Life: 50000
  • Volts: 120-277
  • Warranty Years: 5
  • Watt Equivalent: 10.5

Professional Applications

  • Commercial Office Buildings
  • Retail Establishments
  • Educational Facilities
  • Healthcare Facilities
  • Industrial Workspaces
  • Warehouse and Storage Areas
  • Professional Service Centers

Why Choose Keystone Quality?

Keystone delivers reliable LED lighting solutions with DLC 4.0 qualification and comprehensive 5-year warranty coverage. The 50,000-hour rated life and direct drive ballast bypass technology ensure dependable performance and reduced maintenance requirements for professional installations.

Manufacturer Resources

Product Specs

Classification:
Light Sources
Color Temperature (CRI):
5000
Part Type:
Direct Drive
Rate Life:
50000
Volts:
120-277
Warranty Years:
5
Watt Equivalent:
10.5

Keystone KT-LED14.5T8-48G-835-DX2 – Frequently Asked Questions

1) Do I have to remove the ballast to install the Keystone 14.5W T8 LED tube?
Yes. Model KT-LED14.5T8-48G-835-DX2 is a direct drive, ballast bypass lamp, so the existing fluorescent ballast has to be disconnected and removed from the circuit. Line voltage is wired straight to the lampholders. If you want a lamp that drops into an existing working ballast with no rewiring, this is not that type of tube.
2) Will this LED T8 tube run on 277V in a commercial building?
It will. The Keystone direct drive T8 accepts 120 to 277 volts, so the same lamp works on 120V residential or light commercial circuits and on 277V building lighting panels. No separate voltage version to specify.
3) Is single-end or double-end wiring required for this ballast bypass T8?
The DX2 designation on KT-LED14.5T8-48G-835-DX2 is Keystone's double-end direct drive lamp: line goes to one end of the fixture and neutral to the other. Shunted lampholders can stay in a double-end wiring setup, which is what makes this type faster to retrofit than a single-end lamp that needs non-shunted tombstones on the live end.
4) Is 1900 lumens enough to replace a 32W fluorescent in an office fixture?
At 14.5W and 1900 lumens with a 240 degree beam spread, this tube is aimed at general ambient lighting in offices, retail, classrooms, healthcare and warehouse bays. It is a lower-output lamp than a high-lumen 32W F32T8 of roughly 2800 to 3000 lumens, so in a two-lamp troffer over a desk you may want to check your foot-candle target before swapping one for one. In corridors, storage and multi-lamp fixtures the output is usually fine.
5) Will this LED tube work in an enclosed or damp-location fluorescent fixture?
Treat it as a general purpose T8 lamp replacement for the interior applications Keystone names: offices, retail, schools, healthcare, industrial workspaces and warehouse storage. Fixture-specific suitability beyond those is a function of the housing, not the lamp, so match it to the luminaire's own rating.
