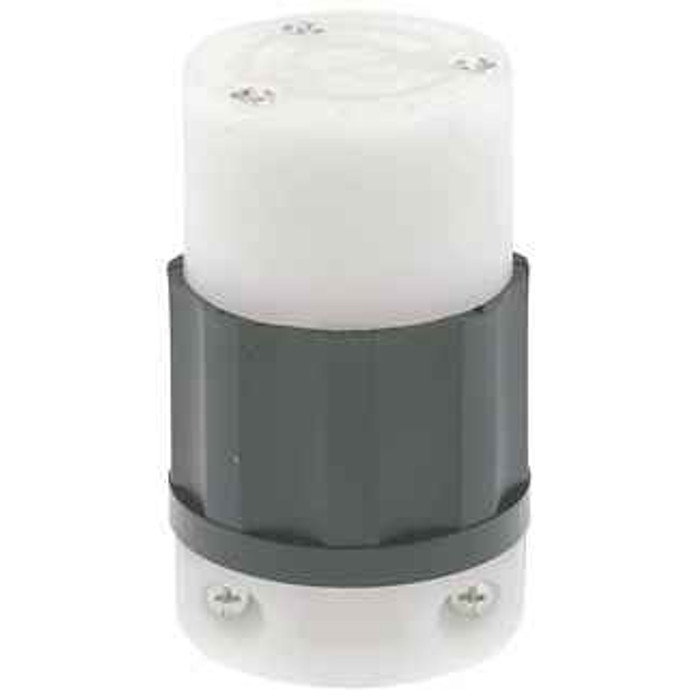

15 Amp, 277 Volt, NEMA L7-15R, 2P, 3W, Locking Connector,Industrial Grade, Grounding, RoHs Compliant - BLACK-WHITE
Features
- Single piece 0.035 inch thick contacts with NO rivets for longest life and continuous conductivity
- Backed-out, color-coded brass terminal screws
- Deep wire wells with transparent wiring chambers
- External cord clamp accepts wire mesh connection grips
- For fast assembly Black & White devices feature:
- RoHs Compliant
- Nylon face module features Amperage, Voltage, and NEMA configuration molded into face for easy identification and replacement.
- Fluted nylon housing makes it easier to grip with gloves and in debris-laden environments
- Deep slotted triple drive face module and cord clamp screws
- Thick-walled, super tough nylon housing resists abuse and impact
- Single piece external cord clamp includes catalogue number and NEMA configuration for easy identification
- Connectors ship with standard white and black cord clamp. Color-coded cord clamps available to identify amperage or equipment. Choose from blue, green, yellow, red, and orange
Manufacturer Resources
Product Specs
- Assembly Screws:
- Steel, Zinc Plated
- Blades Contacts:
- Solid Brass
- Body Material:
- Impact Modified Nylon
- Cord Range:
- .240 - .700
- Standards And Certifications:
- UL/CSA
- Wire Gauge:
- 18-10 AWG
- Product Group:
- Wiring Devices
- Department:
- Electrical
- Product Subgroup:
- Panels & Inlets
- Amperage:
- 15 A
- Brand:
- Black and White
- Color:
- Black-White
- Environment:
- Dry
- Flammability:
- Rated HB or better UL94
- Grounding:
- Grounding
- Nema:
- L7-15R
- Pole:
- 2
- Voltage:
- 277 VAC
- Wire:
- 3
