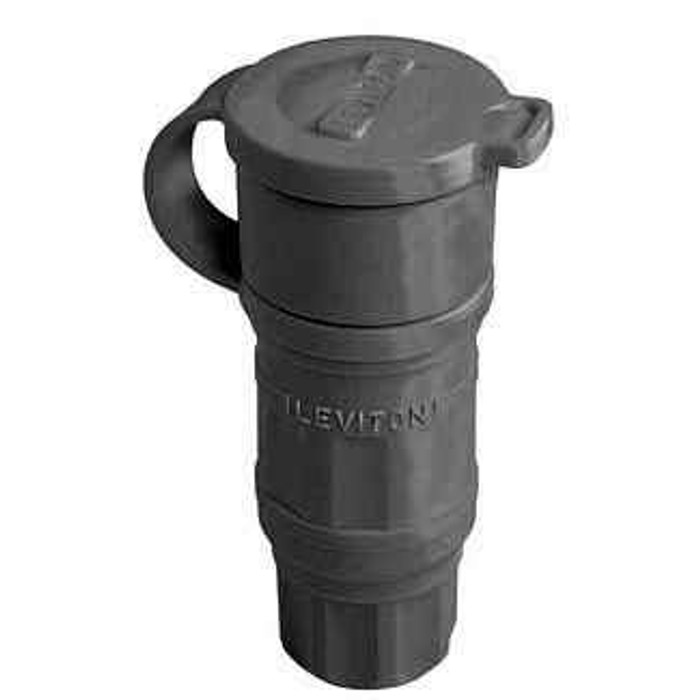

30 Amp, 250 Volt, 2P, 3W, NEMA L6-30R, Locking Connector, Industrial Grade, Corrosion Resistant, Wetguard- BLACK
Manufacturer Resources
Product Specs
- Assembly Screws:
- Stainless Steel 300
- Blades Contacts:
- Nickel-Plated Brass
- Body Interior:
- Nylon
- Body Material:
- EPTR Rubber
- Compression Nut Strain Relief:
- Nylon
- Cord Grip Range In :
- .625-1.125
- Csa C22 2 No 42:
- File LR-406
- Current Limiting:
- Full Rated Current
- Device Type:
- Locking Connector
- Dielectric Voltage:
- Withstands 2000V per UL498
- Operating Temperature:
- -40°C to 60°C
- Product Id:
- Ratings and NEMA I.D. permanently marked on device
- Standards And Certifications:
- UL/CSA
- Temperature Rise:
- Max 30C after 250 cycles OL at 200 percent rated current
- Terminal Accom :
- #12 to #8
- Terminal Id:
- Brass-Hot, Green-Ground, Silver-Neutral
- Terminal Screws:
- Electroless Nickel-coated Brass
- Wire Module:
- Nylon
- Product Group:
- Wiring Devices
- Department:
- Electrical
- Product Subgroup:
- Panels & Inlets
- Amperage:
- 30 A
- Ansi:
- C-73
- Bushing:
- Santoprene TPV
- Environment:
- Wet
- Flammability:
- Rated V-2 per UL 94
- Grounding:
- Grounding
- Nema:
- WD-6
- Nom:
- 57
- Pole:
- 2
- Ul:
- 498
- Wire:
- 3
- Series:
- Wetguard
- Product Voltage:
- 250 VAC
- Product Color:
- Black
