Milbank U3565-O 15 Terminal Ri...
IN STOCK (leaves warehouse same day if ordered before 3pm ET)
$3,614.31
$3,564.31

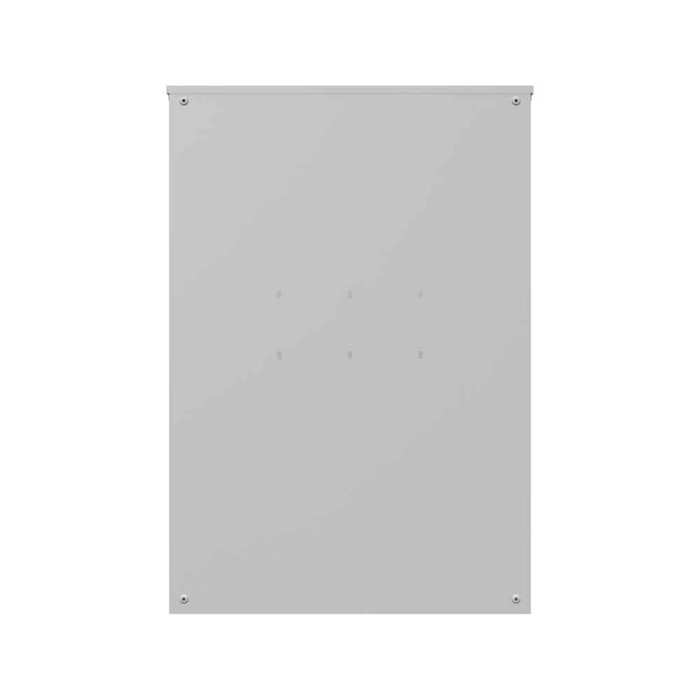

Milbank U3565-O 15 Terminal Ring Type Plain Top Test Switch Provision 36in-52in-11in Painted Steel Double Front Lift Off Screw Cover Current Transformer Rack Provision

Milbank U3565-O 15 Terminal Ring Type Plain Top Test Switch Provision 36in-52in-11in Painted Steel Double Front Lift Off Screw Cover Current Transformer Rack Provision

(No reviews yet) Write a Review

Model: U3565-O
Selected Model is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$3,614.31
$3,564.31
Adding to cart… The item has been added
Free Shipping on orders over $99
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like
15 Terminal Ring Type Plain Top Test Switch Provision 36in-52in-11in Painted Steel Double Front Lift Off Screw Cover Current Transformer Rack Provision

Manufacturer Resources

Product Specs

Amperage Rating:
20 Continuous Ampere
Application:
Meter Socket
Brand Name:
Milbank
Bypass Provision:
No Bypass
Cable Entry:
Underground
Equipment Ground:
Ground Lug
Frequency Rating:
60 Hertz
Height:
52.5 IN
Hub Closing Plate:
Plain Top
Insulation:
Glass Polyester
Length:
11 IN
Line Side Wire Range:
14 - 10 AWG
Load Side Wire Range:
14 - 10 AWG
Main Breaker Size:
No Main Breaker
Material:
G90 Galvanized Steel with Powder Coat Finish
Mounting:
Surface Mount
Number Of Jaws:
15 Terminal
Number Of Main Breakers:
0
Number Of Meter Positions:
1 Position
Number Of Receptacles:
0
Phase:
3 Phase
Product Family Code:
TRNS
Size:
11L x 36W x52.5H
Standard:
UL Listed;Type 3R
Terminal:
Single Mechanical
Type:
Ring Type Meter Socket
Unspsc Number:
39121102
Voltage Rating:
600 Volts Alternating Current
Width:
36 IN
!
