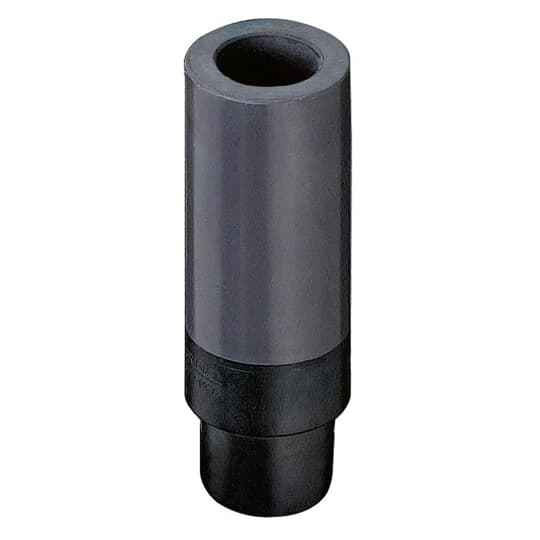

15/25KV 600A CABLE ADAPT 1.55-1.78
Manufacturer Resources
Product Specs
- Country of Origin:
- United States
- Connection Type:
- Slide-on
- Special Functions:
- Fits Cable Insulation Diameter 1.550 inch to 1.780 inch.
- Product Material:
- EPDM Rubber
Elastimold 655CA-N – Frequently Asked Questions
1) What cable insulation diameter range does the Elastimold 655CA-N adapter accept?
The 655CA-N cable adapter is built for cable insulation outside diameters of 1.55 to 1.78 inches. Measure the OD over the insulation (not the jacket) before you order, because the adapter range is what decides whether the interface seals.
2) What voltage and current rating is the Elastimold 655CA-N cable adapter?
Rated 15/25 kV and 600 amps. That puts it on 600 A deadbreak-class separable connector systems at either 15 kV or 25 kV class, so one adapter covers both common distribution voltage classes.
3) Is the Elastimold 655CA-N the complete connector, or do I need more parts to finish the termination?
The 655CA-N is the cable adapter only. It is one component of a 600 A separable connector assembly, so the elbow or junction body, the bushing or feed-thru it lands on, and the cable prep materials are all ordered separately. Match every piece to the same 15/25 kV 600 A interface class.
4) What exactly does a 600 amp cable adapter do in an Elastimold connector system?
It is the molded rubber transition piece between the cable and the 600 A connector body. The adapter is sized to the cable insulation OD (1.55 to 1.78 inches here) and gives the connector a standard interface to seat on, so the same 15/25 kV 600 A elbow or coupling body can be used across several cable sizes just by changing the adapter.
5) What is the manufacturer part number to order for the Elastimold 1.55-1.78 inch 600A cable adapter?
Order Elastimold part number 655CA-N. The N suffix version is the one rated 15/25 kV, 600 A, for 1.55 to 1.78 inch cable insulation OD.
6) Can I use the same 655CA-N adapter on both a 15 kV and a 25 kV circuit?
Yes, it is a dual-rated part at 15/25 kV, so utility and industrial crews can stock one adapter for both classes as long as the cable insulation OD falls between 1.55 and 1.78 inches and the system is 600 A class.
