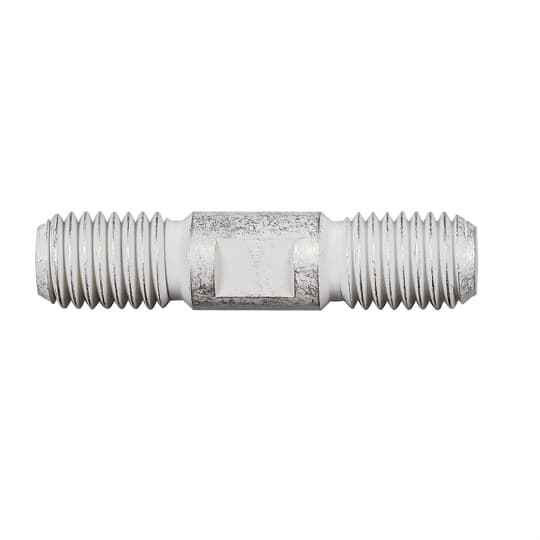

STUD THREADED 600A DB 15/25KV
Manufacturer Resources
Product Specs
- Connection Type:
- Mechanical
- Product Material:
- Aluminum
- Application:
- 15/25kV, 600 Amps
Elastimold 650SA – Frequently Asked Questions
1) What voltage class is the Elastimold 650SA threaded stud rated for?
The Elastimold 650SA threaded stud is rated for 15/25kV deadbreak service at 600 amps. If your separable connector system is 35kV class, this is not the right stud.
2) Is the Elastimold 650SA a loadbreak or deadbreak component?
Deadbreak. The 650SA is a 600A deadbreak accessory, so the circuit must be de-energized before making or breaking the connection. Loadbreak switching at 600A is a different product class, typically 200A loadbreak elbows for switching under load.
3) What does the Elastimold 650SA threaded stud actually do in a 600A deadbreak connection?
It is the threaded stud that provides the conductive stud interface in a 600A, 15/25kV deadbreak separable connector assembly, giving the bolted/threaded point that elbows and accessories land on. It is a component, not a complete elbow kit, so the mating connector body and any cable adapters are ordered separately.
4) Can I use the 650SA stud on a 35kV system if the current is under 600A?
No. Voltage class governs here, not current. The 650SA is built for 15/25kV; a 35kV class deadbreak stud has different insulation and interface dimensions and must be used on 35kV gear.
5) How do I order the Elastimold 650SA by part number?
Order it as Elastimold part number 650SA. There is a single configuration of this threaded stud, so there is no finish, length, or interface option to specify.
How fast can I get the Elastimold 650SA delivered?
Most orders ship the same day from our distribution partners, with quick delivery throughout the
continental
U.S.
Need it urgently? Contact Us for expedited shipping options.
Can I return it if it doesn’t work for me?
Yes—ZenSupply offers a hassle-free return policy. If the product isn’t the right fit,
reach out to our support team for a return authorization or setup a return by following our return instructions.
Does the Elastimold 650SA come with a warranty?
Absolutely. The Elastimold 650SA is backed by a manufacturer’s warranty.
For full warranty terms, check the product documentation or Contact Us.
How do I get technical support or installation help for the Elastimold 650SA?
You can call, text, or email our expert support team for fast answers. We’re here to help with
product
selection,
installation tips, and troubleshooting. Contact Us
