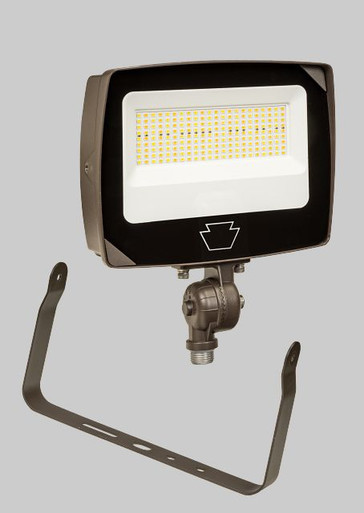

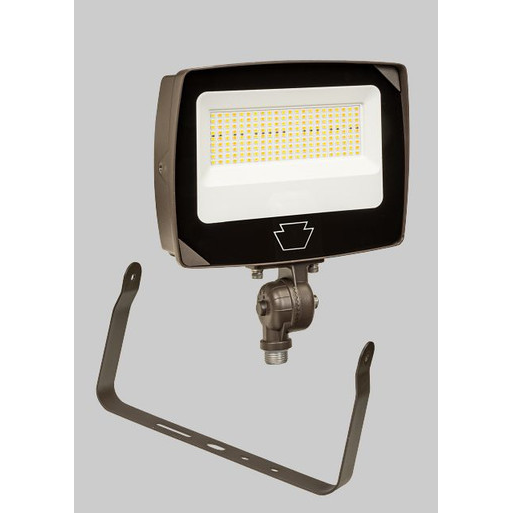

Keystone KT-FLED15PS-R4A-UNV-8CSB-VDIM 15W LED Floodlight feat. Power Select & Color Select, Rectangular Series 4

(No reviews yet) Write a Review

Model: KT-FLED15PS-R4A-UNV-8CSB-VDIM

In Stock (leaves warehouse same day if ordered before 3pm ET)

$108.41
$58.67
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
15W LED Floodlight feat. Power Select & Color Select, Rectangular Series 4

KT-FLED15PS-R4A-UNV-8CSB-VDIM - spec sheet

Manufacturer Resources

Product Specs

Accessory Device:
No
Cri:
>80
Dimming:
0-10V
Dlc:
No
Dlc Premium:
Yes
Housing Color:
Bronze
Input Voltage:
120-277
Product Weight:
2.888055635 lbs
Rated Life Hours:
50000
Selectable Color Temperature:
3000/4000/5000
Selectable Power:
15/12/9
Sensor Type:
Photocell
Ul:
Yes
Warranty Years:
10 Year Limited

Keystone KT-FLED15PS-R4A-UNV-8CSB-VDIM – Frequently Asked Questions

1) Can I run the Keystone KT-FLED15PS floodlight on 120V and 277V circuits in the same building?
Yes. The KT-FLED15PS-R4A floodlight is a universal-voltage fixture accepting 120-277V input, so the same part number works on 120V wall circuits and on 277V lighting panels in a commercial building. That lets you standardize one SKU across mixed-voltage sites instead of stocking two.
2) How do I set the wattage and color temperature on this Keystone Power Select flood, and is it done at the fixture?
Both are selectable on the fixture itself. Power Select gives you 15W, 12W or 9W, and Color Select gives 3000K, 4000K or 5000K. One part number covers nine output/color combinations, so you can match an existing building standard on site rather than ordering a specific wattage and CCT. Set it before you energize the fixture.
3) Does this 15W Keystone floodlight turn itself on at dusk, or do I need a separate photocell?
A photocell is built in, so the flood switches on at dusk and off at dawn without an external control or a time clock. You can wire it to an unswitched circuit. If you want it on a building control system instead, the photocell means you would need to account for it in the sequence of operation.
4) Is this Keystone flood dimmable, and what kind of dimmer does it need?
It is 0-10V dimmable, which means a low-voltage analog control signal on a separate pair of control conductors, not a line-voltage wall dimmer. Standard forward-phase or TRIAC incandescent dimmers will not control it. Plan for the extra 0-10V control run if you want dimming; if you do not, cap the control leads and the fixture runs at full selected output.
5) Does the Keystone KT-FLED15PS qualify for utility rebates?
It is DLC Premium listed, which is the tier most utility and energy-efficiency programs require for the higher rebate amounts on outdoor LED. It is also UL listed. Confirm the specific program's current qualified products list when you file the rebate paperwork.
6) Is a 15W LED flood enough to replace an old halogen or metal halide security light?
At its top setting this Keystone flood draws 15W, with 12W and 9W steps below it. That is a small-area fixture, suited to entries, walkways, signage and short building faces rather than replacing a 150W-plus metal halide covering a parking lot. For wider coverage you want a higher-wattage flood; use the Power Select steps here to trim output down where 15W is more light than the spot needs.
7) What color is the housing on this Keystone rectangular floodlight? I need it to match existing fixtures.
The housing is bronze, which is the common finish for building-mounted exterior floods and generally blends with brick, wood and dark trim. If your other building exteriors are bronze, this matches; if you are standardizing on white or black housings, this one will stand out.
8) How long will this LED flood last before it needs replacing, and what is the color quality like?
Rated life is 50,000 hours. On a dusk-to-dawn photocell cycle that is well over a decade of nightly operation, which is the point for an MRO buyer tired of relamping halogen floods. CRI is greater than 80, adequate for security, parking and entry lighting where accurate color rendering is not critical.
9) Is the Keystone KT-FLED15PS a complete fixture or an add-on accessory?
It is a complete floodlight, not an accessory or retrofit component, so it ships as the fixture itself with the photocell and selectable drivers integral. The orderable part number is KT-FLED15PS-R4A-UNV-8CSB-VDIM.
