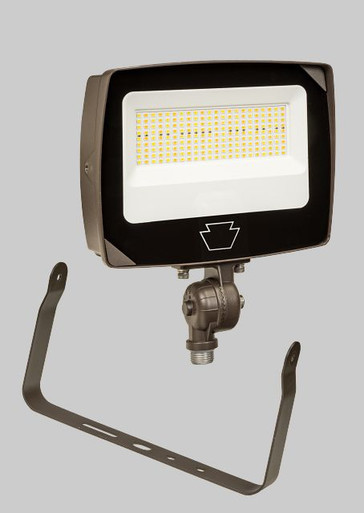

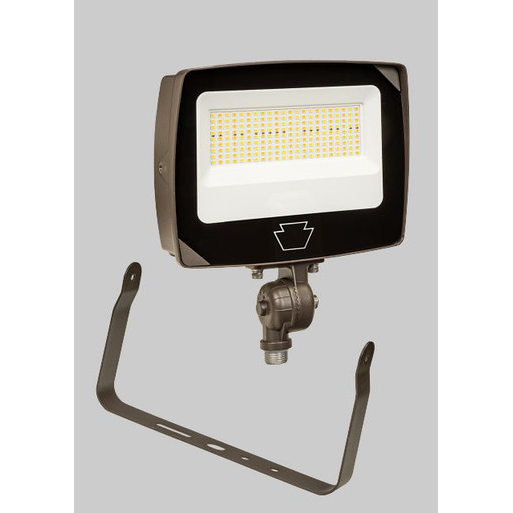

Keystone 35W LED Floodlight with Power Select & Color Select Technology - Bronze Rectangular Series 4

Keystone 35W LED Floodlight with Power Select & Color Select Technology - Bronze Rectangular Series 4

(No reviews yet) Write a Review

Model: KT-FLED35PS-R4A-UNV-8CSB-VDIM

In Stock (leaves warehouse same day if ordered before 3pm ET)

$134.66
$77.58
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

Keystone 35W LED Floodlight with Power Select & Color Select Technology

Professional LED Floodlighting with Selectable Power & Color Temperature Control

The Keystone LED Floodlight delivers versatile outdoor lighting performance with innovative Power Select and Color Select technology. This bronze rectangular Series 4 floodlight features selectable wattage options and multiple color temperatures, providing professional-grade illumination with 0-10V dimming capability and integrated photocell sensor for automatic operation.

Professional Features & Benefits

  • Selectable Power Options (35/25/15W): Optimize energy consumption and light output for specific application requirements without changing fixtures.
  • Color Select Technology (3000K/4000K/5000K): Choose the ideal color temperature for enhanced visibility and ambiance control in any environment.
  • 0-10V Dimming Compatibility: Provides smooth dimming control for energy savings and customized lighting levels throughout operational periods.
  • Integrated Photocell Sensor: Enables automatic dusk-to-dawn operation for hands-free lighting control and enhanced security applications.
  • DLC Premium Qualification: Meets stringent energy efficiency standards for utility rebate eligibility and sustainable lighting solutions.
  • 50,000-Hour Rated Life: Delivers long-term reliability with minimal maintenance requirements for continuous outdoor operation.
  • 10-Year Limited Warranty: Backed by comprehensive warranty coverage ensuring dependable performance and investment protection.

Technical Specifications

  • Accessory Device: No
  • Cri: >80
  • Dimming: 0-10V
  • Dlc: No
  • Dlc Premium: Yes
  • Housing Color: Bronze
  • Input Voltage: 120-277
  • Product Weight: 3.26284148 lbs
  • Rated Life Hours: 50000
  • Selectable Color Temperature: 3000/4000/5000
  • Selectable Power: 35/25/15
  • Sensor Type: Photocell
  • Ul: Yes
  • Warranty Years: 10 Year Limited

Professional Applications

  • Commercial Building Perimeter Lighting
  • Parking Lot and Walkway Illumination
  • Retail and Office Exterior Security Lighting
  • Multi-Unit Residential Property Lighting
  • Industrial Facility Outdoor Areas
  • Municipal and Public Space Lighting
  • Emergency Services and Healthcare Facilities

Why Choose Keystone Quality?

Keystone delivers professional-grade LED lighting solutions with UL listing certification and bronze housing construction for durability in outdoor environments. The 10-year limited warranty and DLC Premium qualification demonstrate Keystone's commitment to energy-efficient, long-lasting lighting performance for demanding commercial and industrial applications.

Manufacturer Resources

Product Specs

Accessory Device:
No
Cri:
>80
Dimming:
0-10V
Dlc:
No
Dlc Premium:
Yes
Housing Color:
Bronze
Input Voltage:
120-277
Product Weight:
3.26284148 lbs
Rated Life Hours:
50000
Selectable Color Temperature:
3000/4000/5000
Selectable Power:
35/25/15
Sensor Type:
Photocell
Ul:
Yes
Warranty Years:
10 Year Limited

Keystone KT-FLED35PS-R4A-UNV-8CSB-VDIM – Frequently Asked Questions

1) Can one Keystone KT-FLED35PS floodlight cover several different wattage specs on a job?
Yes. The Keystone 35W floodlight has Power Select, so the same fixture can be set to 35W, 25W or 15W on site. That means one part number covers three output levels, which is how most contractors stock a single SKU for a building perimeter and step the wattage down at walkways or low-traffic elevations instead of ordering separate fixtures.
2) Will this Keystone LED floodlight run on 277V commercial service?
It does. The driver is universal voltage, 120-277V, so it wires to 120, 208, 240 or 277 without a separate part number. That is what makes it usable on both a multi-family 120V circuit and a commercial 277V lighting panel.
3) Does the Keystone 35W floodlight need a separate photocell or timeclock for dusk-to-dawn?
No extra control is needed for dusk-to-dawn. A photocell sensor is built into the fixture, so it switches on at dark and off at daylight on its own. Feed it unswitched power. If you want scheduled dimming on top of that, the fixture also takes a 0-10V dimming signal, which is a separate pair of low-voltage conductors you have to pull.
4) Is this floodlight dimmable with a standard wall dimmer?
No. It is a 0-10V fixture, not line-voltage phase dimming, so a common incandescent or TRIAC wall dimmer will not control it and can damage the driver. You need a 0-10V control with two low-voltage control wires run to the fixture, or leave the dimming leads capped and run it at full output on the photocell.
5) Can I match the color temperature of floodlights already on my property with the Keystone Power Select flood?
Likely yes. Color Select lets you set the fixture to 3000K, 4000K or 5000K at install, so you can match warm-white building lighting at 3000K, neutral 4000K, or the cooler 5000K commonly used in parking areas. For a property manager retrofitting one elevation at a time, that means the new fixtures can be dialed to whatever the existing ones read rather than standing out.
6) Do I need to order a separate sensor or control accessory with this floodlight?
No add-on device is required. The photocell is integral and the 0-10V dimming interface is built into the driver, so the fixture ships as a complete unit with no accessory device needed to make it function. The only field-supplied items are your mounting anchors and, if you want dimming, the low-voltage control wiring.
7) Is the color rendering good enough for security camera coverage?
CRI is greater than 80, which is the normal threshold for commercial exterior work and adequate for identifying vehicle and clothing color on camera footage. Pairing it with the 5000K Color Select setting is the usual choice for security and parking areas.
8) How long before these floodlights need relamping?
Rated life is 50,000 hours. Running dusk to dawn on the built-in photocell, that is roughly a decade of service, and there is no lamp to change since the LEDs are integral to the fixture. For an MRO or facilities buyer this is a fixture replacement item, not a relamp item.
9) What finish does the Keystone rectangular Series 4 floodlight come in?
Bronze housing only. There is one configuration, model KT-FLED35PS-R4A-UNV-8CSB-VDIM, so if your specification calls for white or black you will need a different Keystone model rather than an option on this one. Bronze is the standard choice for blending against brick, masonry and dark fascia.
