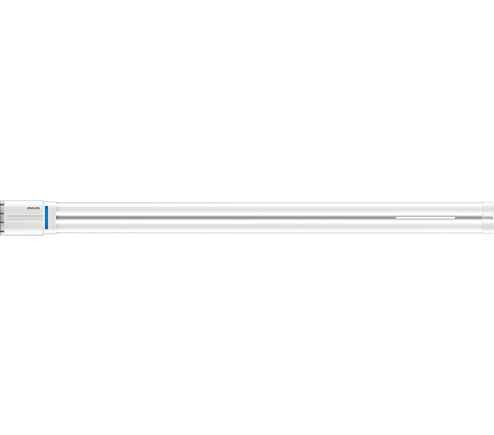

Philips Lighting 16.5W PL-L LED Tube 4000K Cool White 2G11 Base Retrofit Lamp

Philips Lighting 16.5W PL-L LED Tube 4000K Cool White 2G11 Base Retrofit Lamp

Energy-Efficient LED Retrofit Solution for Existing CFL Fixtures

The Philips Lighting 16.5W PL-L LED Tube delivers professional lighting performance with 4000K cool white output and 2300 lumen brightness. This Type A retrofit lamp works directly with existing fluorescent ballasts, featuring durable polycarbonate construction and conventional form factor for seamless plug-and-play installation in office, retail, and residential applications.

Professional Features & Benefits

• 16.5W Power Rating: Provides over 40% energy savings compared to traditional CFL lamps while maintaining superior light output
• 4000K Cool White Color Temperature: Delivers crisp, professional lighting ideal for office environments and general commercial applications
• 2300 Lumen Output: Ensures bright, consistent illumination with 139 lm/W luminous efficacy for maximum energy efficiency
• 50,000 Hour Lifetime: Offers exceptional longevity with superior color and lumen maintenance, minimizing replacement costs
• Type A Ballast Compatible: Works directly with existing fluorescent ballasts for easy retrofit installation without rewiring
• DLC Standard Certified: Meets energy efficiency standards for utility rebate eligibility and professional applications
• 2G11 Base Configuration: Conventional form factor ensures compatibility with existing PL-L luminaires and fixtures

Technical Specifications

• Base: 2G11 [ 2G11]
• Beam Angle Nom : 160 �
• Color Code: 841 [ CCT of 4100K (841)]
• Color Consistency: <6
• Color Designation: Cool White (CW)
• Color Rendering Index Nom : 82
• Correlated Color Temperature Nom : 4000 K
• Dimmable: No
• Energy Certifications: DLC Standard
• Energy Saving Product: Yes
• Eu Rohs Compliant: Yes
• Initial Lumen Nom : 2300 lm
• Input Frequency: 40000-160000 Hz
• Lamp Current Max : 400 mA
• Lamp Current Min : 200 mA
• Llmf At End Of Nominal Lifetime Nom : 70%
• Luminous Efficacy Rated Nom : 139.00 lm/W
• Nominal Lifetime Nom : 50000 h
• Power Factor Nom : 0.9
• Power Rated Nom : 16.5 W
• Starting Time Nom : 0.5 s
• Switching Cycle: 50000X
• T Ambient Max : 45 �C
• T Ambient Min : -20 �C
• T Case Maximum Nom : 75 �C
• T Storage Max : 65 �C
• T Storage Min : -40 �C
• Ul Type: Type A - works on ballast
• Voltage Nom : 70-110 V
• Warm Up Time To 60 Light Nom : 0.5 s

Installation & Operation

1. Mount the unit in a suitable location with appropriate clearance and access for connections and service.
2. Connect utility and load conductors following applicable guidelines and the manufacturer's instructions.
3. Wire generator or power input according to the provided voltage/phase specifications and compatible capacity.
4. Configure any available load management or control features as supported by the provided specifications.
5. Test automatic transfer or operational functionality and verify proper performance before placing into service.
6. Complete final inspection and follow ongoing maintenance practices appropriate to the product category.

Professional Applications

• Office Buildings and Corporate Facilities
• Retail Stores and Shopping Centers
• Hospitality and Hotel Properties
• Residential and Multi-Family Complexes
• Educational Institutions
• Healthcare Facilities
• General Commercial Lighting

Why Choose Philips Lighting Quality?

Philips Lighting delivers trusted performance with DLC Standard certification and RoHS compliance, ensuring professional-grade reliability. The durable polycarbonate construction and 50,000-hour rated lifetime provide long-term value, while the wide operating temperature range from -20�C to 45�C ensures consistent performance across diverse environments.
