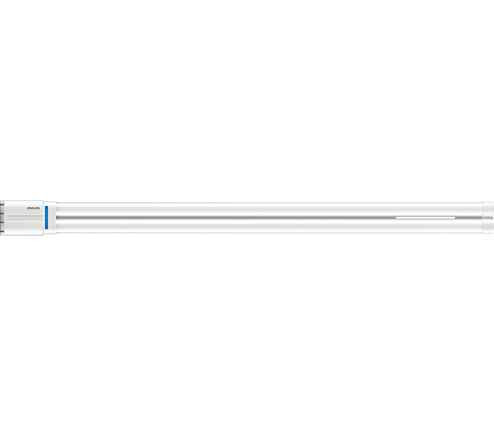

Philips Lighting 16.5W PL-L LED Tube 3500K 2200 Lumens Ballast Compatible Retrofit Lamp

Philips Lighting 16.5W PL-L LED Tube 3500K 2200 Lumens Ballast Compatible Retrofit Lamp

Professional LED retrofit solution with superior energy efficiency

The Philips Lighting 16.5W PL-L LED Tube delivers professional-grade illumination with 3500K color temperature and 2200 lumens output. This ballast-compatible retrofit lamp features durable polycarbonate construction and 2G11 base configuration, providing over 40% energy savings compared to traditional CFL alternatives. With 50000-hour rated lifetime and 82 CRI, this LED tube offers reliable performance for commercial and residential applications.

Professional Features & Benefits

• 16.5W Power Rating: Delivers efficient illumination while reducing energy consumption by over 40% compared to traditional CFL lamps
• 3500K Color Temperature: Provides warm white light ideal for retail, hospitality, and general lighting applications
• 2200 Lumens Output: Ensures bright, consistent illumination with 133 lm/W luminous efficacy for professional environments
• Ballast Compatible Design: Type A configuration works directly with existing fluorescent ballasts for easy plug-and-play installation
• 50000 Hour Lifetime: Extended operational life minimizes maintenance costs and replacement frequency
• DLC Standard Certification: Meets energy efficiency standards for utility rebate eligibility and professional installations
• Durable Polycarbonate Construction: Withstands temperature ranges from -20�C to 45�C ambient for reliable long-term performance

Technical Specifications

• Base: 2G11 [ 2G11]
• Beam Angle Nom : 160 �
• Color Code: 835 [ CCT of 3500K]
• Color Consistency: <6
• Color Designation: White (WH)
• Color Rendering Index Nom : 82
• Correlated Color Temperature Nom : 3500 K
• Dimmable: No
• Energy Certifications: DLC Standard
• Energy Saving Product: Yes
• Eu Rohs Compliant: Yes
• Initial Lumen Nom : 2200 lm
• Input Frequency: 40000-160000 Hz
• Lamp Current Max : 400 mA
• Lamp Current Min : 200 mA
• Llmf At End Of Nominal Lifetime Nom : 70%
• Luminous Efficacy Rated Nom : 133.00 lm/W
• Nominal Lifetime Nom : 50000 h
• Power Factor Nom : 0.9
• Power Rated Nom : 16.5 W
• Starting Time Nom : 0.5 s
• Switching Cycle: 50000X
• T Ambient Max : 45 �C
• T Ambient Min : -20 �C
• T Case Maximum Nom : 75 �C
• T Storage Max : 65 �C
• T Storage Min : -40 �C
• Ul Type: Type A - works on ballast
• Voltage Nom : 70-110 V
• Warm Up Time To 60 Light Nom : 0.5 s

Installation & Operation

1. Mount the unit in a suitable location with appropriate clearance and access for connections and service.
2. Connect utility and load conductors following applicable guidelines and the manufacturer's instructions.
3. Wire generator or power input according to the provided voltage/phase specifications and compatible capacity.
4. Configure any available load management or control features as supported by the provided specifications.
5. Test automatic transfer or operational functionality and verify proper performance before placing into service.
6. Complete final inspection and follow ongoing maintenance practices appropriate to the product category.

Professional Applications

• Retail and hospitality environments requiring warm white illumination
• Residential and multi-family complexes for general lighting upgrades
• Office buildings and commercial facilities seeking energy-efficient retrofits
• Educational institutions and healthcare facilities
• Property management companies upgrading existing fluorescent systems
• Maintenance and facility management operations

Why Choose Philips Lighting Quality?

Philips Lighting delivers proven reliability with DLC Standard certification and RoHS compliance. The 50000-hour rated lifetime and superior color maintenance ensure consistent performance throughout the lamp's operational life, while the polycarbonate construction provides durability in demanding commercial environments.
