1G NM WIU LARGE COVER, XDUTY,CLR
Manufacturer Resources
Product Specs
- Application:
- Accepts GFCI, single, duplex or switch configurations
- Country Of Origin:
- United States
- Insulation Material:
- None
- Product Group:
- Electrical Boxes
- Product Type:
- While-In-Use-Weatherproof Covers
- Product type2:
- Electrical box covers
- Selling Unit Of Measure:
- each
- Special Functions:
- Robust stainless steel hinge pin is ideal for high-traffic areas
- Standards:
- UL E11461
- Department:
- Electrical
- Product Subgroup:
- Box Covers
- Product Size:
- 5-3/16 Inches x 4-11/16 Inches x 6-5/32 Inches
- Product Color:
- Clear
- Installation Category:
- Keyhole
- Product Shape:
- Rectangular
- Product Material:
- Non-Metallic
Red Dot CKPL – Frequently Asked Questions
1) Will the Red Dot CKPL cover fit a GFCI receptacle, or just a standard duplex?
The CKPL single-gang while-in-use cover accepts GFCI, single, duplex or switch configurations, so one part covers all four device types. That is useful if you are standardizing covers across a property and the devices behind them vary opening to opening.
2) Is the Red Dot CKPL UL listed?
Yes, it carries UL file E11461. It is also made in the United States, which matters on jobs with domestic sourcing requirements.
3) How much room does the CKPL weatherproof cover leave for a plug with a bulky right-angle cord?
It is the large-size version, measuring 5-3/16 x 4-11/16 x 6-5/32 inches overall. That depth is what lets the lid close over a cord cap and strain relief while the plug stays energized, which is the whole point of a while-in-use enclosure. Map the three figures to your opening before you commit to a tight location.
4) Is the Red Dot CKPL cover metal or plastic, and does that matter outdoors?

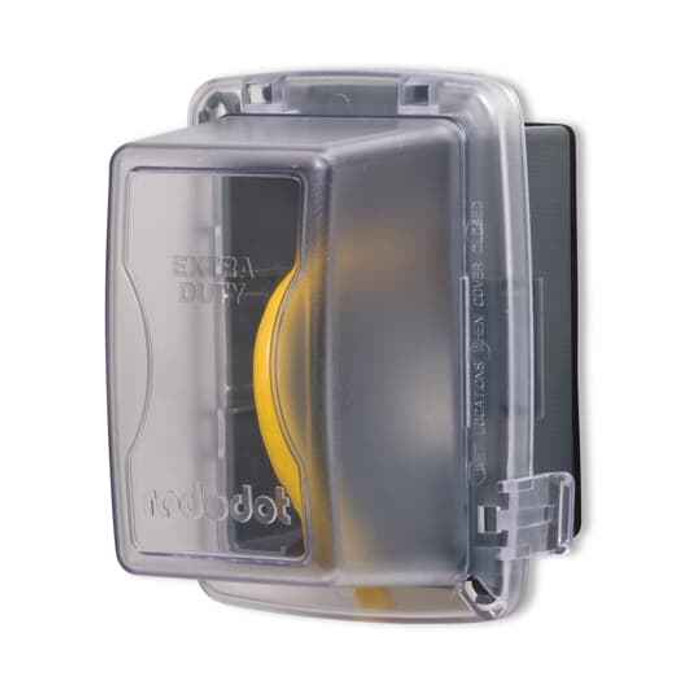

Non-metallic body with a clear lid. Nothing to corrode or need painting, and the clear cover lets you see at a glance whether a GFCI has tripped or a cord is seated, without opening the lid in the rain.
5) Which while-in-use cover holds up in a high-traffic area where the lid gets knocked around?
The CKPL uses a stainless steel hinge pin, which is the part that usually fails first on a weatherproof cover that gets kicked, leaned on, or flipped open dozens of times a day. For loading docks, exterior walkways, pool decks and common areas on multi-family buildings, that hinge is the reason to pick this one over a lighter-duty cover.
6) How does the CKPL cover mount to the box?
It mounts keyhole style, so the cover drops over the fasteners and is snugged down rather than needing a fully blind alignment. It is a single-gang cover, so it needs a single-gang box or plate opening behind it.
7) Does the Red Dot CKPL come with a gasket or foam seal?
Insulation material is listed as none, so plan on the cover and its own closure doing the sealing. If your job spec calls for a separate foam gasket between the cover and the wall, order that gasket as a separate line item.
8) Is the Red Dot CKPL sold individually or by the case?
Sold each, as a single rectangular cover. Count one per device opening when you are pricing out a run of exterior receptacles.
