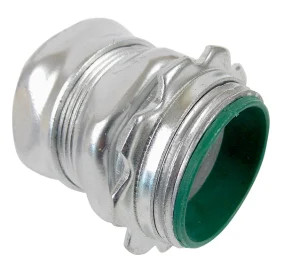

2" Compression Connectors With Insulated Throat
Features
- Rated for concrete usage
- Heavy steel walls
- Zinc plated to avoid corrosion
Manufacturer Resources
Product Specs
- Department:
- Electrical
Allied Tube & Conduit CC200-ICRKON – Frequently Asked Questions
1) Will the Allied Tube & Conduit CC200-ICRKON connector work on 2 inch EMT?
Yes. The CC200-ICRKON is a 2 inch compression connector, so it is sized for 2 inch trade size tubing. Compression style means no set screw, you slide the conduit in and tighten the compression nut to grip it.
2) Can this compression connector be poured into concrete?
Yes, the CC200-ICRKON is rated for concrete usage, so it can be used in concrete pour applications rather than dry interior work only. The body is built with heavy steel walls to take that duty.
3) Why choose an insulated throat connector instead of a plain steel one?
The insulated throat on the CC200-ICRKON puts a smooth plastic liner at the mouth of the fitting so conductor insulation is not cut on the metal edge as wire is pulled in. On a 2 inch run carrying large conductors that is the pull most likely to nick insulation, and it saves adding a separate bushing.
4) Is the CC200-ICRKON body steel or die cast, and is it protected against corrosion?
Steel, not die cast, with heavy walls, and it is zinc plated for corrosion resistance. That combination is what makes it suitable for concrete and damp locations where a raw casting would deteriorate.
5) What is the exact part number to order for the 2 inch Allied insulated throat compression connector?
Order Atkore Allied Tube & Conduit part number CC200-ICRKON. The CC prefix is the compression connector line, 200 is the 2 inch trade size, and ICRKON denotes the insulated throat concrete rated version.
6) Do I need a separate locknut when installing this 2 inch compression connector?
The CC200-ICRKON is a compression connector for terminating 2 inch conduit into a box or enclosure, and it seats through the knockout and is secured on the inside. Contractors ordering these for panel terminations should count one locknut per connector unless the packaged fitting already includes it.
