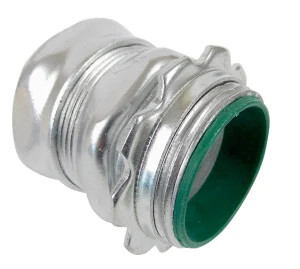

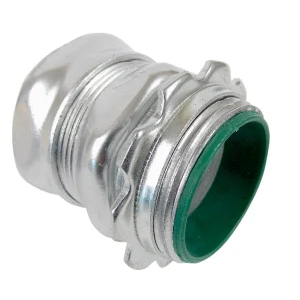

4" Compression Connectors With Insulated Throat
Features
- Rated for concrete usage
- Heavy steel walls
- Zinc plated to avoid corrosion
Manufacturer Resources
Product Specs
- Department:
- Electrical
Allied Tube & Conduit CC400-ICRKON – Frequently Asked Questions
1) What size EMT does the Allied Tube & Conduit CC400-ICRKON compression connector fit?
It's a 4 inch compression connector, so it terminates 4 inch conduit into a box or enclosure. Ordered under part number CC400-ICRKON.
2) Does the CC400-ICRKON compression connector have an insulated throat for pulling large conductors?
Yes. The CC400-ICRKON is built with an insulated throat, so the conductor insulation isn't dragged across a bare metal edge on a 4 inch pull. That's the difference between this and a plain non-insulated compression connector of the same size.
3) Can this 4 inch compression connector be used in a concrete pour?
It is rated for concrete usage, so it can be used in concrete-encased raceway work. The body has heavy steel walls to take the handling and the pour.
4) What is the finish on the Allied Tube & Conduit CC400-ICRKON, and will it corrode in a damp location?
The connector is zinc plated to resist corrosion. That plating is what protects the steel body in damp or concrete contact conditions.
5) Is a compression connector the right choice over a set screw connector for 4 inch EMT?
A compression connector clamps the conduit with a gland nut rather than biting it with a screw, which is what you want where the raceway has to hold up in concrete or damp conditions. The CC400-ICRKON is the compression type, rated for concrete use. If you're in a dry interior run with no concrete contact, a set screw connector is the simpler termination.
6) Do I need to order anything else with the CC400-ICRKON to land 4 inch conduit in a panel?
The connector itself terminates the conduit at the enclosure, but you still need the correct 4 inch knockout or punched opening in the box, and a locknut or bonding locknut on the inside if your installation calls for bonding at the enclosure. The insulated throat is already part of the connector, so no separate bushing is needed for conductor protection.
