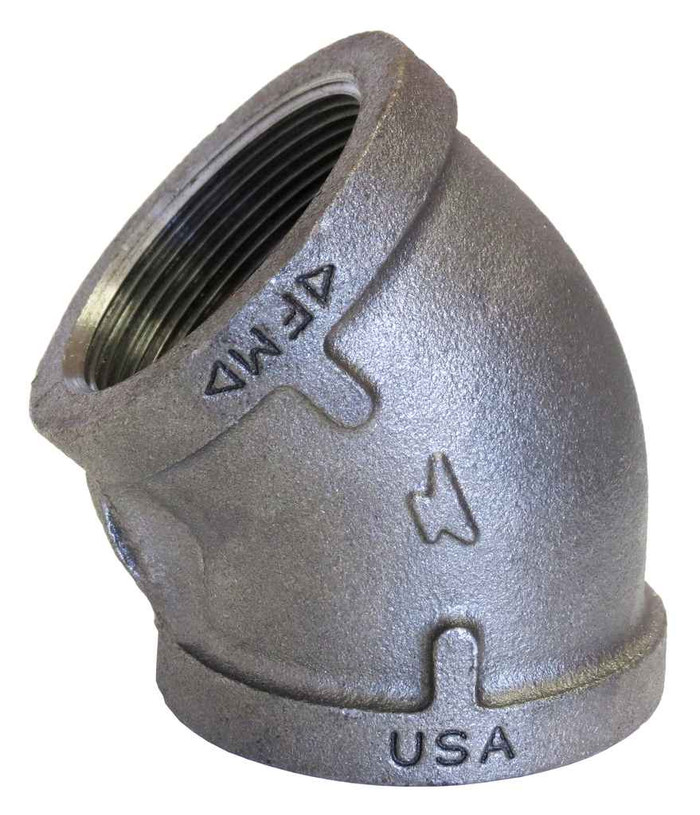

2 GALV MI 45 ELL
Manufacturer Resources
Product Specs
- Dimensions Specification:
- ASME B16.3
- End Conn Size 1:
- FPT
- End Conn Size 2:
- FPT
- Finish Specification:
- ASTM A-153
- Material Specification:
- ASTM A-197
- Pressure Rating Specification:
- ASME B16.3
- Size 1:
- 2
- Size 2:
- 2
- Strength:
- STD
- Thread Specification:
- ASME B1.20.1
- Ul Fm:
- Yes
- Department:
- Plumbing
- Product Group:
- Pipe Fittings
- Product Subgroup:
- Elbows
- Product Type:
- 45° Elbow
- Product Finish:
- Galvanized
- Product Material:
- Malleable Iron
- Product Weight:
- 1.85 lbs
ASC Engineered Solutions 311024400 – Frequently Asked Questions
1) What thread type does the ASC 2 inch galvanized malleable iron 45 degree elbow use on both ends?
Both ends are 2 inch FPT, female NPT taper pipe thread cut to ASME B1.20.1. So it threads directly onto 2 inch male-threaded pipe nipples or male adapters on both sides. There is no street configuration here, both openings are female.
2) Is this 45 degree elbow approved for fire sprinkler piping?
It carries UL/FM approval, which is what an AHJ looks for on a wet or dry sprinkler branch line. It is a standard weight (STD) galvanized malleable iron fitting rated to ASME B16.3, which is the usual class of fitting used on threaded sprinkler mains and branch lines.
3) Will a galvanized malleable iron elbow hold up in a damp or outdoor run?
The galvanizing is hot dip to ASTM A-153, the heavier coating spec rather than a plated finish, so it holds up in wet mechanical rooms, outdoor gas runs, and dry sprinkler systems where condensation is a factor. The body itself is malleable iron to ASTM A-197.
4) Is this a reducing elbow or same size on both ends?
Same size both ends, 2 inch by 2 inch. If you need to change pipe size at the turn you will want a reducing fitting or a separate bushing or reducer ahead of this elbow.
5) What is the ASC part number and shipping weight on the 2 inch galvanized 45?
The manufacturer part number is 311024400 and the fitting weighs 1.85 lbs. Useful if you are pricing out a bulk pull of threaded fittings or figuring hanger spacing loads on a filled run.
