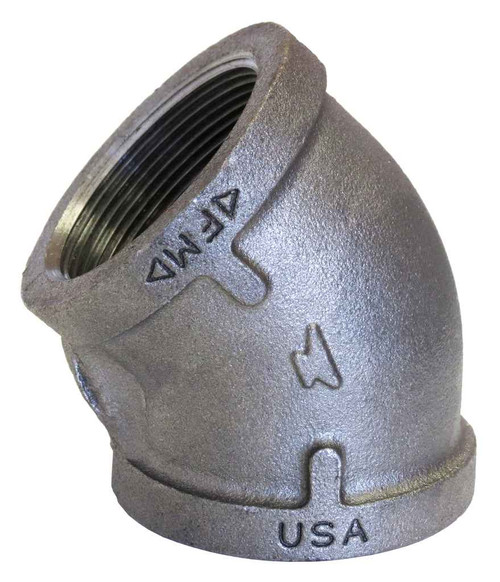

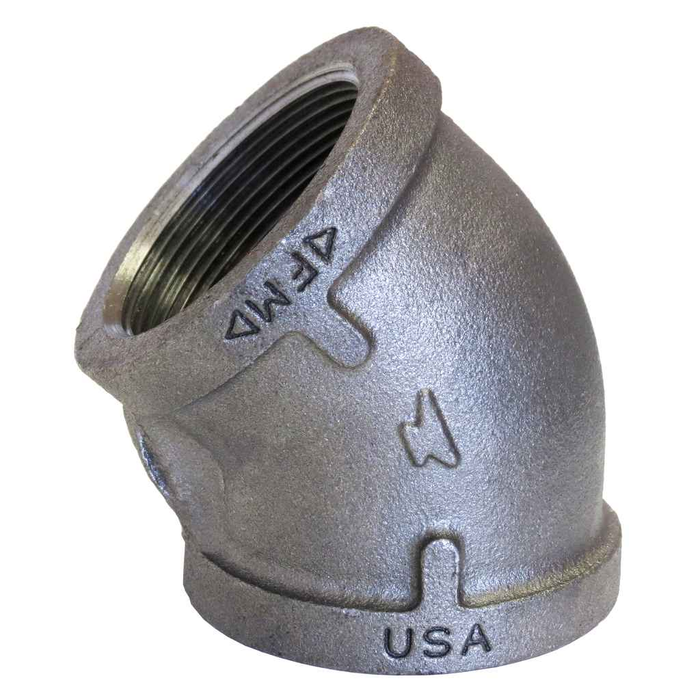

21/2 GALV MI 45 ELL
Manufacturer Resources
Product Specs
- Dimensions Specification:
- ASME B16.3
- End Conn Size 1:
- FPT
- End Conn Size 2:
- FPT
- Finish Specification:
- ASTM A-153
- Material Specification:
- ASTM A-197
- Pressure Rating Specification:
- ASME B16.3
- Size 1:
- 2.5
- Size 2:
- 2.5
- Strength:
- STD
- Thread Specification:
- ASME B1.20.1
- Ul Fm:
- Yes
- Department:
- Plumbing
- Product Group:
- Pipe Fittings
- Product Subgroup:
- Elbows
- Product Type:
- 45° Elbow
- Product Finish:
- Galvanized
- Product Material:
- Malleable Iron
- Product Weight:
- 2.9 lbs
ASC Engineered Solutions 311024608 – Frequently Asked Questions
1) What pipe size and thread type does the ASC 2-1/2 inch galvanized malleable iron 45 degree elbow take?
Both ends are 2-1/2 inch female pipe thread (FPT), so it threads onto male-threaded 2-1/2 inch pipe nipples or threaded pipe ends on each side. Threads are cut to ASME B1.20.1, the standard NPT taper thread spec, so it mates with any standard NPT 2-1/2 inch male thread.
2) Can I use a galvanized malleable iron 45 elbow on a steam or gas line?
The material is malleable iron to ASTM A-197 with NPT threads to ASME B1.20.1, which is the usual construction for threaded gas, air, water and low pressure steam service at standard class ratings per ASME B16.3. Note the galvanized coating: many gas codes restrict galvanized inside certain systems because zinc can flake, so on fuel gas most specs call for black malleable iron instead. For water, fire protection and general plumbing, galvanized is the point of it.
3) Will this galvanized 45 elbow hold up in a wet or outdoor run?
The zinc coating is hot dip galvanizing to ASTM A-153, the spec for hot dip zinc on threaded hardware and fittings. That is the coating used for corrosion resistance on outdoor, damp, and wet sprinkler piping, and it is heavier than an electroplated zinc finish.
