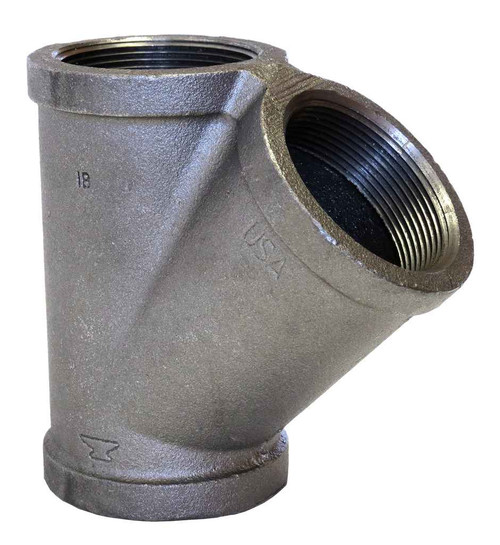

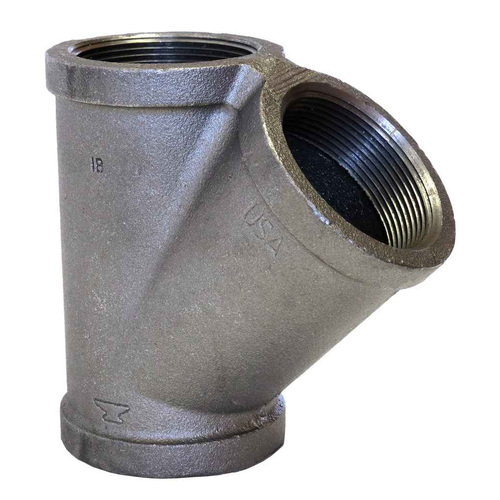

2 GALV MI WYE
Manufacturer Resources
Product Specs
- Dimensions Specification:
- ASME B16.3
- End Conn Size 1:
- FPT
- End Conn Size 2:
- FPT
- End Conn Size 3:
- FPT
- Finish Specification:
- ASTM A-153
- Material Specification:
- ASTM A-197
- Pressure Rating Specification:
- ASME B16.3
- Size 1:
- 2
- Size 2:
- 2
- Size 3:
- 2
- Strength:
- STD
- Thread Specification:
- ASME B1.20.1
- Ul Fm:
- Yes
- Department:
- Plumbing
- Product Group:
- Pipe Fittings
- Product Subgroup:
- Other Fittings
- Product Type:
- Fitting
- Product Finish:
- Galvanized
- Product Material:
- Malleable Iron
- Product Weight:
- 3.4 lbs
ASC Engineered Solutions 311067607 – Frequently Asked Questions
1) What size and thread type are the openings on the ASC Engineered Solutions 2 inch galvanized malleable iron wye?
All three openings are 2 inch FPT, female pipe thread. Threads are cut to ASME B1.20.1 (NPT), so it makes up with any standard 2 inch NPT male pipe nipple or threaded pipe end. No reducing branch here, it is a straight 2 x 2 x 2.
2) Can I use a galvanized malleable iron wye on a wet sprinkler or water line instead of black iron?
The galvanized finish is hot-dip to ASTM A-153, which is the coating spec used for wet-pipe sprinkler and general water service where black iron would corrode. Body is malleable iron to ASTM A-197. For dry gas or fuel lines, black malleable is the usual choice instead.
3) How much does the 2 inch galvanized malleable iron wye weigh for overhead hanger spacing?
3.4 lbs bare. Add that to your filled-pipe load when you set hanger spacing near the branch, since threaded malleable fittings concentrate weight at the joint.
4) Do I need a sealant or tape on this fitting, and what part number do I order?
Order model 311067607. The threads are NPT to ASME B1.20.1, which is a tapered sealing thread, so it still needs pipe dope or PTFE tape rated for the service. No gaskets or loose parts ship with the fitting.
