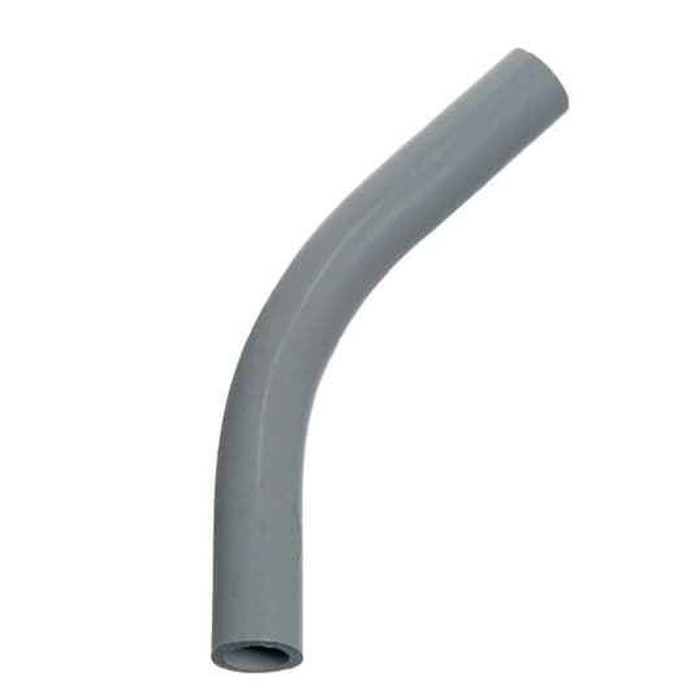

Carlon 2 Inch Gray PVC Schedule 40 Non-Metallic Conduit 30 Degree Elbow
Professional-Grade Rigid Conduit Direction Change Solution
The Carlon 2 Inch Gray PVC Schedule 40 30 Degree Elbow delivers professional-grade conduit routing performance for electrical installations requiring precise directional changes. This PVC rigid non-metallic elbow features a 30-degree angle designed for electrical contractors and installers, providing the reliable performance and UL Listed safety that electrical professionals demand for conduit system installations.
Professional Features & Benefits
Superior Construction Quality
- Schedule 40 PVC Construction - Heavy-duty wall thickness provides maximum durability and impact resistance for demanding electrical applications
- 2.375 Inch Outside Diameter - Precise dimensional accuracy ensures perfect fit with standard 2 inch Schedule 40 conduit systems
- 30 Degree Angle Configuration - Optimal bend radius minimizes wire pulling stress while providing necessary directional change
- Gray Color Coding - Industry standard gray finish for professional appearance and UV resistance in exposed applications
UL Listed Safety & Compliance
- UL E323335 Listed - Certified safety performance meets National Electrical Code requirements for rigid non-metallic conduit systems
- Code Compliant Installation - Engineered to meet electrical installation standards for residential and commercial wiring applications
- Non-Metallic Advantage - Corrosion-resistant PVC construction eliminates rust and galvanic corrosion concerns in moisture-prone environments
Technical Specifications
Nominal Size: 2 inches, Outside Diameter: 2.375 inches, Material: Schedule 40 PVC, Angle: 30 degrees, Color: Gray, UL Listed: E323335, Standards Compliance: National Electrical Code, Selling Unit: Each, Product Classification: Rigid Non-Metallic Conduit Elbow
Installation Process
- Measure and cut conduit runs to accommodate 30-degree directional change requirements
- Clean conduit ends and elbow socket areas thoroughly to ensure proper adhesive bonding
- Apply PVC solvent cement evenly to both conduit end and elbow socket interior surfaces
- Insert conduit fully into elbow socket with quarter-turn twist to distribute cement evenly
- Hold joint firmly for 30 seconds to ensure proper initial bond formation
- Allow full cure time per cement manufacturer specifications before wire installation
Professional Applications
Ideal for:
- Residential Electrical Systems - Home wiring installations requiring conduit direction changes around structural elements
- Commercial Building Wiring - Office and retail electrical installations with complex routing requirements
- Industrial Conduit Systems - Manufacturing facility electrical distribution with corrosion-resistant requirements
- Outdoor Electrical Installations - Weather-resistant conduit routing for exterior lighting and power distribution
- Underground Electrical Systems - Buried conduit installations requiring directional changes for utility connections
- Concrete Pour Applications - Embedded conduit systems in concrete structures requiring precise angle changes
- Parking Lot Lighting - Underground conduit routing for area lighting with minimal excavation disruption
- Pool and Spa Electrical - Moisture-resistant conduit systems for aquatic facility electrical installations
Schedule 40 PVC Advantage
Carlon Schedule 40 PVC construction provides superior strength and durability compared to lighter wall thickness alternatives. The heavy-duty wall construction resists impact damage during installation and provides long-term protection for electrical conductors. Non-metallic PVC material eliminates corrosion concerns, reduces installation weight, and provides excellent chemical resistance for harsh environment applications.
Why Choose Carlon Quality?
Carlon demonstrates unwavering commitment to UL Listed safety, reliable performance, and code compliance for electrical professionals. Every elbow undergoes rigorous quality testing to ensure dimensional accuracy, material integrity, and electrical safety performance. Professional contractors trust Carlon rigid non-metallic conduit fittings for critical electrical installations requiring long-term reliability and safety.
Manufacturer Resources
Product Specs
- Color:
- Gray
- Material:
- PVC
- Nominal Size:
- 2 in
- Outside Diameter:
- 2.375 in
- Product Name:
- FITTINGS OF PLASTIC FOR TUBES, ETC.
- Product Type:
- Rigid Non-Metallic Conduit-Schedule 40 Elbows
- Selling Unit Of Measure:
- each
- Size:
- 8.24 Inches
- Standards:
- UL E323335
- Product Group:
- Conduit Systems
- Department:
- Electrical
- Product Sub group:
- Elbows
- Product Type2:
- Pvc Schedule 40 Elbows
