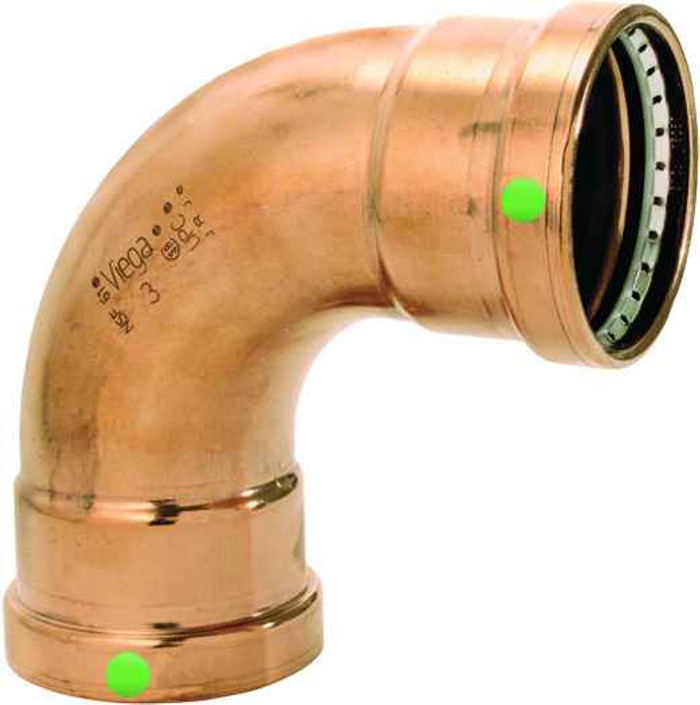

20633 Viega ProPress 90° elbow Smart Connect technology Copper, 4'' x 4''
Manufacturer Resources
Product Specs
- Connection Type:
- P1 x P2
- Material Type:
- Copper
- Product Dimension:
- 4'' x 4''
- Department:
- Plumbing
- Product Group:
- Plumbing Fittings
- Product Subgroup:
- Elbows
- Product Type:
- Elbow
- Product Length:
- 4.681"
- Product Height:
- 9.602"
- Product Weight:
- 5.724 lbs
- Product Width:
- 9.602"
- Product Material:
- Copper
Viega 20633 – Frequently Asked Questions
1) Is the Viega 20633 elbow a soldered fitting or a press fitting?
It is a press fitting, not a solder fitting. Both ends are ProPress press connections, so the joint is made cold with a press tool and a 4 inch jaw or ring rather than with flame and solder. If your spec calls for sweat joints, this is the wrong fitting for that opening.
2) How much space do I need to allow for a 4 inch ProPress 90 elbow?
Plan the rough-in around 9.602 x 4.681 x 9.602 inches, the stated dimensions of the 20633. On large diameter press work you also need clearance for the press ring and actuator around each end, so allow more than the fitting body alone when it sits near a wall, a beam, or a parallel run.
3) What material is the Viega 20633 ProPress 90 degree elbow made of?
Copper. That makes it the copper-system fitting, for use on copper tube, rather than the stainless or carbon steel ProPress lines used on other piping systems.
4) Do I need a special press tool for the 4 inch Viega ProPress elbow?
Yes, 4 inch is outside the range of standard press jaws. A 4 inch copper ProPress connection is made with a large diameter press ring and an actuator driven by a full size press tool, so confirm your crew has 4 inch rings on the truck before the fitting goes in the wall.
5) What does Smart Connect do on this Viega elbow?
Smart Connect is the feature built into the 20633 that lets an unpressed joint leak during pressure testing, so an elbow that was missed on a big 4 inch run shows itself at test instead of after the ceiling closes up.
6) Can I order the Viega 20633 in a reducing size, like 4 inch to 3 inch?
No. The 20633 is a straight 4 x 4 elbow, equal on both ends. To change diameter at the turn you need a separate 4 inch press reducer or a reducing fitting ordered under its own Viega part number.
7) Where is the Viega 20633 ProPress elbow manufactured?
Germany. For procurement packages that require country of origin documentation on mechanical fittings, the 20633 lists as made in Germany.
