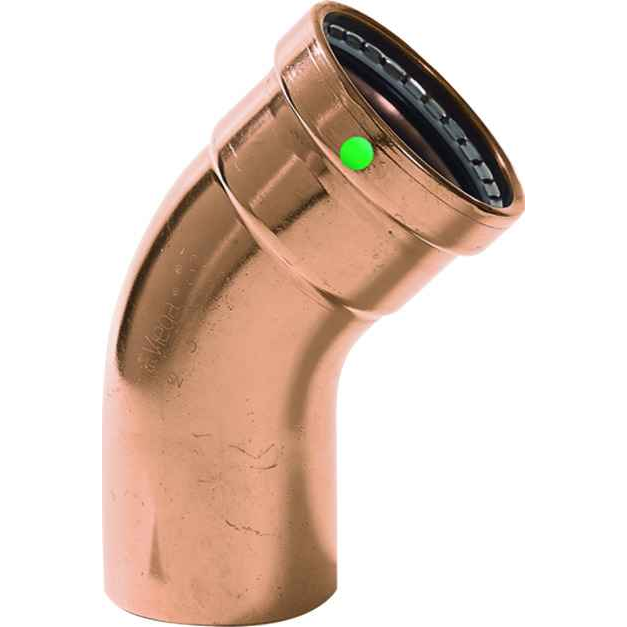

20678 Viega ProPress 45° street elbow Smart Connect technology Copper, 4'' x 4''
Manufacturer Resources
Product Specs
- Connection Type:
- P x FTG
- Material Type:
- Copper
- Product Dimension:
- 4'' x 4''
- Department:
- Plumbing
- Product Group:
- Plumbing Fittings
- Product Subgroup:
- Elbows
- Product Type:
- Elbow
- Product Length:
- 4.681"
- Product Height:
- 7.425"
- Product Weight:
- 3.964 lbs
- Product Width:
- 9.921"
- Product Material:
- Copper
Viega 20678 – Frequently Asked Questions
1) Is the Viega 20678 elbow for 4 inch copper tube?
Yes, it is a 4 inch x 4 inch fitting, press end and street end both at 4 inch, and the body is copper so it is intended for copper tubing systems.
2) Can I use a 4 inch ProPress street elbow instead of soldering on a copper riser?
That is exactly the point of it. The 20678 is pressed cold with a ProPress tool, so there is no torch, no flame permit and no draining the line dry the way a 4 inch solder joint demands. On large diameter copper that is where most of the labor saving shows up. You still need the correct 4 inch ProPress jaw or ring and actuator, which is not supplied with the fitting.
3) What is Smart Connect on the Viega 20678 and why does it matter on a big system?
Smart Connect is Viega's unpressed-connection feature: a joint that was left unpressed will leak visibly during pressure testing so you find it before the ceiling closes. On a 4 inch main with dozens of joints, that is the difference between a documented test and chasing a hidden connection later.
4) What is the difference between a ProPress street elbow and a regular 45 elbow?
A regular 45 has press sockets on both ends, so you need a length of tube to get into it. The 20678 street version has one press socket and one FTG male end that inserts directly into another fitting's socket. Use the street elbow when you are coming straight off a valve, tee or coupling with no room for a tube stub; use the socket-by-socket 45 when you are joining two runs of tube.
