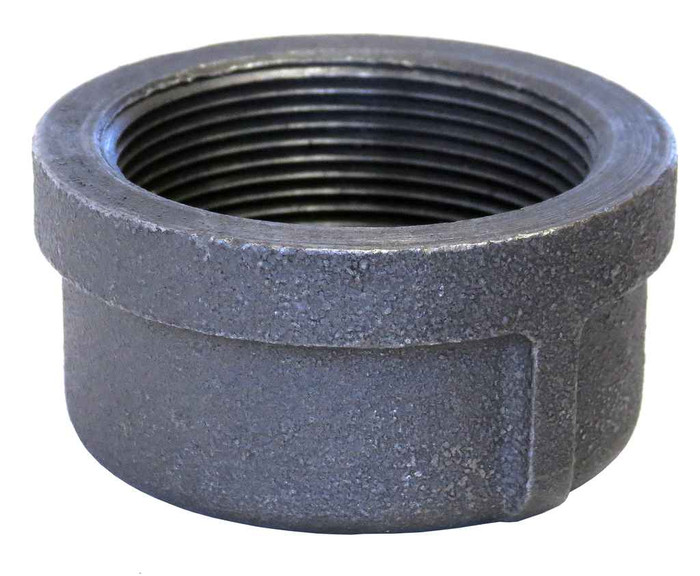

21/2 GALV MI CAP
Manufacturer Resources
Product Specs
- Dimensions Specification:
- ASME B16.3
- End Conn Size 1:
- FPT
- Finish Specification:
- ASTM A-153
- Material Specification:
- ASTM A-197
- Pressure Rating Specification:
- ASME B16.3
- Size 1:
- 2.5
- Size 2:
- 0
- Strength:
- STD
- Thread Specification:
- ASME B1.20.1
- Ul Fm:
- Yes
- Department:
- Plumbing
- Product Group:
- Pipe Fittings
- Product Subgroup:
- Caps
- Product Type:
- Cap
- Product Finish:
- Galvanized
- Product Material:
- Malleable Iron
- Product Weight:
- 1.82 lbs
ASC Engineered Solutions 319900767 – Frequently Asked Questions
1) Is this malleable iron pipe cap approved for use on a fire sprinkler system?
It carries UL/FM approval, so it can be used on fire protection piping where a listed fitting is required, such as capping a branch line or a test connection. It is a standard (STD) class malleable iron fitting rated to ASME B16.3 for pressure.
2) Can I use a galvanized malleable iron cap on a wet or outdoor line, or will it rust?
The cap is hot dip galvanized to ASTM A-153, the coating spec for hardware dipped after fabrication, which gives it corrosion protection for damp, outdoor, and wet sprinkler service. The base casting is malleable iron to ASTM A-197. Standard practice is to keep galvanized fittings with galvanized pipe rather than mixing with black iron on a wet system.
3) How much does a 2-1/2 inch galvanized cap weigh for takeoff and hanger load?
1.82 lbs each. Worth counting if you are capping several risers or stub-outs on a hanger run.
4) What part number do I order for the ASC 2-1/2 inch galvanized malleable iron cap?
Order MPN 319900767 from ASC Engineered Solutions. That is the 2-1/2 inch galvanized malleable iron cap, STD class, FPT.
