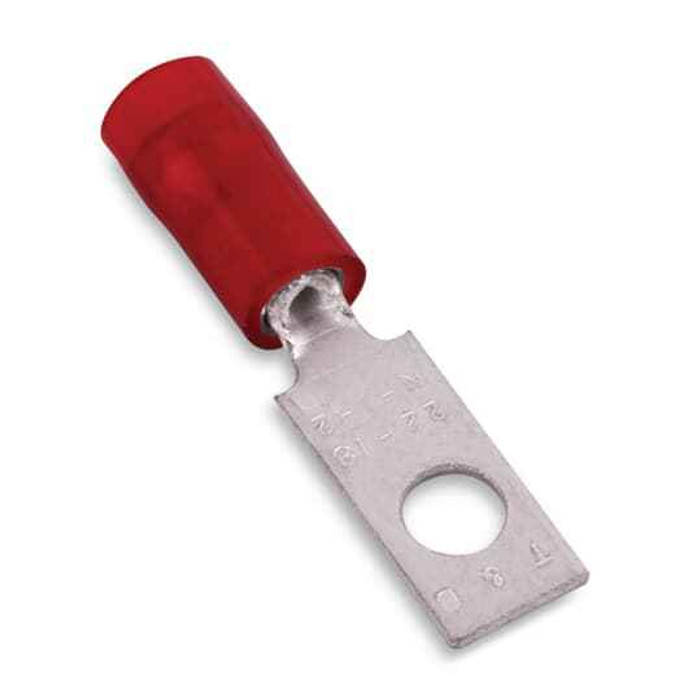

22-18 NYL INSUL RECT W/MYLAR TAPE
Manufacturer Resources
Product Specs
- Country Of Origin:
- United States (US)
- Product Subgroup:
- General Terminals
- Product Type:
- Nylon Insulated Rectangular Ring Terminal
- Wire Size:
- 22-18 AWG
- Department:
- Electrical
- Product Group:
- Wire Termination
- Product Color:
- Red
- Product Material:
- Nylon
Sta-Kon RA484M – Frequently Asked Questions
1) What wire gauge does the Sta-Kon RA484M ring terminal take?
The RA484M is sized for 22-18 AWG stranded or solid conductor. That is the red insulation color band, which is the standard trade code for the 22-18 range, so if you are crimping 16 AWG or larger you need a blue (16-14) or yellow (12-10) barrel instead.
2) Is this a round ring terminal or a flag/rectangular tongue?
Rectangular tongue, not a round ring. The RA484M is a nylon insulated rectangular ring terminal, so the tongue is squared off rather than circular, which matters where the terminal sits tight against adjacent lugs on a crowded terminal block or where a round tongue would spin.
3) Is the insulation on this terminal nylon or vinyl, and does it matter?
Nylon. Nylon insulated barrels take more abuse during pull-through and resist cut-through better than vinyl at the same gauge, which is why controls and panel work often spec nylon. If a drawing calls out vinyl insulated, this is not a drop-in on paper even though the wire range is the same.
4) I need to order replacements, what part number do I specify?
Order by Sta-Kon part number RA484M. That one number covers the 22-18 AWG red nylon insulated rectangular terminal with Mylar tape; there are no finish or size options to pick alongside it.
5) What is the Mylar tape on the Sta-Kon RA484M for?
The RA484M ships taped with Mylar, which holds the terminals in a strip for handling and feeding rather than loose in a bag. If your crimp process is strictly hand tooling from a bin, the tape is just packaging you strip off; for production work the taped format is what keeps them oriented.
6) Where is the Sta-Kon RA484M made?
Manufactured in the United States, which is what government and institutional procurement usually needs confirmed before a domestic-content line item clears.
