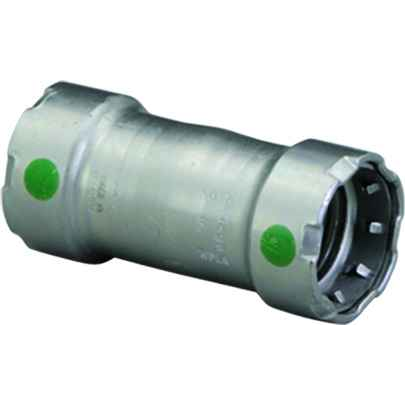

Viega 25030 MegaPress coupling No stop Smart Connect technology Carbon steel, 1/2'' x 1/2''

Both ends of the MegaPress 25030 coupling are press connections sized 1/2 inch, listed as P1 x P2 with a 1/2'' x 1/2'' dimension. So it joins two runs of 1/2 inch pipe with a press tool at each end, no threading or welding at the joint.

A no-stop coupling has no internal shoulder, so it slides fully onto one pipe end and then back over the joint. That lets you cut out a damaged section of 1/2 inch pipe and close the gap without springing the line apart, which a standard stop coupling will not let you do. The 25030 is the no-stop version.

Carbon steel. MegaPress carbon steel fittings like the 25030 are for black iron and carbon steel pipe runs, not for potable copper or stainless systems. Match the fitting material to the pipe material or you set up a dissimilar metal problem at the joint.

Smart Connect is Viega's unpressed-joint feature: an unpressed connection leaks visibly during pressure testing so it gets caught on the test instead of after the walls close. On a mechanical room or a long overhead run with dozens of presses, that is the difference between finding one missed joint at test and chasing it later. The 25030 carries it.

The coupling itself measures 2.697 inches long and 1.264 inches in both height and width, and weighs 0.264 lbs. Plan the pocket around the jaw of your press tool rather than the fitting, since the tool needs more room than the 1.264 inch body when it closes on the joint.

The fitting ships as a single press coupling with the sealing element in place. You supply the press tool and the correct MegaPress jaw or ring for 1/2 inch, plus a proper square cut, deburred pipe end and a marked insertion depth. Nothing is threaded or soldered on this connection.

Yes, the 25030 is manufactured in Germany. That origin statement is what procurement groups usually need for a submittal package on a carbon steel press system.
