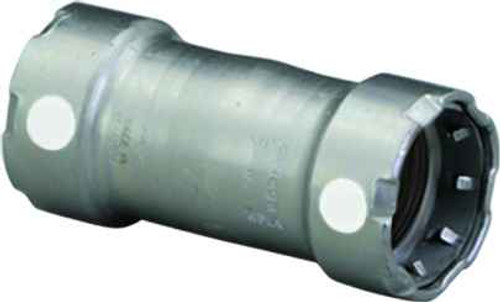

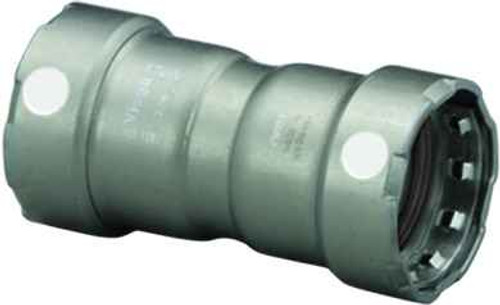

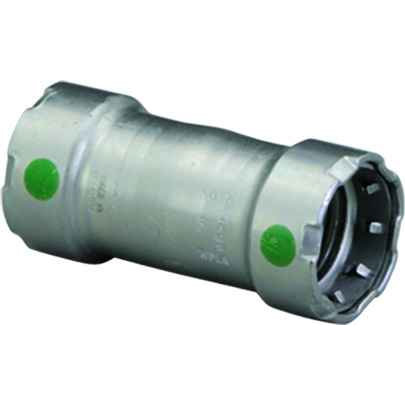

25040 Viega MegaPress coupling No stop Smart Connect technology Carbon steel, 1'' x 1''
Manufacturer Resources
Product Specs
- Connection Type:
- P1 x P2
- Material Type:
- Carbon Steel
- Product Dimension:
- 1'' x 1''
- Department:
- Plumbing
- Product Group:
- Plumbing Fittings
- Product Subgroup:
- Tees
- Product Type:
- Tee
- Product Length:
- 3.287"
- Product Height:
- 1.78"
- Product Weight:
- 0.509 lbs
- Product Width:
- 1.78"
- Product Material:
- Carbon steel
Viega 25040 – Frequently Asked Questions
1) What size pipe does the Viega MegaPress 25040 coupling press onto?
The 25040 MegaPress coupling is a 1 inch by 1 inch fitting, so it joins two runs of 1 inch pipe. Both ends are press connections (P1 x P2), no threading or welding at the joint. Overall the body runs 3.287 inches long and 1.78 inches across.
2) What does the "no stop" mean on the Viega 25040 coupling?
No stop means the coupling has no internal tube stop, so pipe can slide all the way through the body. That is what you want for a repair: cut out the damaged section, slip the coupling over one end of the existing pipe, slide it into position, then press both ends. A coupling with a stop can't be slid along the pipe, so it only works where you can pull one end of the line apart.
3) What is Smart Connect on Viega MegaPress fittings and why does it matter on an install?
Smart Connect is the feature designed into the sealing element so an unpressed connection leaks deliberately during pressure test rather than holding and failing later. On a job with dozens of 1 inch joints behind a wall, that is how you find the one you missed before you close up. It is built into the 25040 coupling, not an option you add.
4) Do I need a special tool to install the Viega 25040 press coupling?
Yes. A press coupling is made with a press tool and the correct 1 inch jaw or ring for MegaPress carbon steel, which is not included with the fitting. There is nothing to thread, solder, or glue, but without the matching jaw you cannot make the joint. Order the fitting and confirm your crew's tool carries the 1 inch MegaPress jaw.
