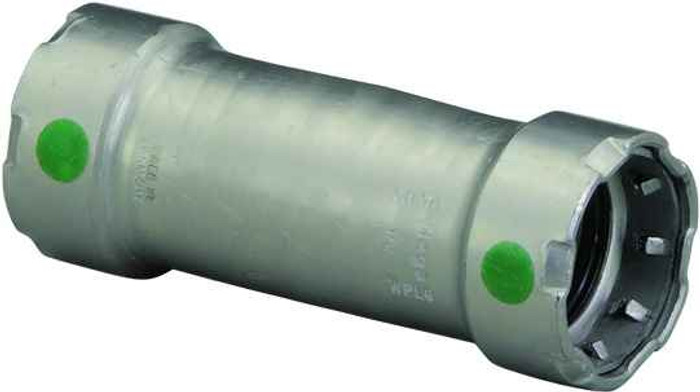

25080 Viega MegaPress extended coupling No stop Smart Connect technology Carbon steel, 1'' x 1''
Manufacturer Resources
Product Specs
- Connection Type:
- P1 x P2
- Material Type:
- Carbon Steel
- Product Dimension:
- 1'' x 1''
- Department:
- Plumbing
- Product Group:
- Plumbing Fittings
- Product Subgroup:
- Tees
- Product Type:
- Tee
- Product Length:
- 4.382"
- Product Height:
- 1.78"
- Product Weight:
- 0.672 lbs
- Product Width:
- 1.78"
- Product Material:
- Carbon steel
Viega 25080 – Frequently Asked Questions
1) What is the Viega MegaPress 25080 coupling used for?
The Viega 25080 is a 1 inch x 1 inch MegaPress extended coupling in carbon steel, press-connect on both ends (P1 x P2). It joins two runs of 1 inch black iron / carbon steel pipe with a cold press connection instead of threading or welding. Because it is the extended, no-stop version, there is no internal shoulder, so it slides fully over the pipe end, which is what you want for repairs and tie-ins where you cannot pull the pipe apart.
2) Why would I order a no-stop coupling instead of a standard MegaPress coupling?
A standard coupling has an internal stop that centers it on the two pipe ends, so both pipes have to be able to move into it. The 25080 has no stop, meaning it can be slid along a fixed length of 1 inch carbon steel pipe to land where you need it. That is the fitting for a cut-in repair on a captive pipe run, or for closing a gap between two sections that are already strapped in place. On new work where you have free pipe ends, the stopped version is easier to set depth on.
3) Will the Viega 25080 work on 1 inch black iron gas pipe?
It is a 1 inch carbon steel MegaPress fitting, so it presses onto 1 inch black iron / carbon steel pipe, which is the same material family. Nominal 1 inch is the only size it covers, so check the pipe you are tying into is actually 1 inch nominal and not 3/4 or 1-1/4.
4) Does the Viega 25080 give any indication that the press was made correctly?
Yes. It is built with Viega's Smart Connect feature, which leaves the unpressed connection deliberately leaky during pressure testing so an un-pressed joint shows itself before the system is put into service. You still need the matching press tool and the correct 1 inch MegaPress jaw or ring to make the connection.
5) Is the Viega 25080 coupling threaded or does it need to be welded?
Neither. Both ends are press connections (P1 x P2), so the joint is made cold with a press tool, no threading, no cutting oil, no flame. That is the main reason crews choose MegaPress for occupied buildings where a hot work permit is a problem.
6) Is the Viega MegaPress 25080 made of stainless or carbon steel?
Carbon steel, matched to carbon steel and black iron pipe systems. If your run is stainless, use a MegaPressG or MegaPress stainless fitting instead; mixing a carbon steel fitting onto stainless pipe invites galvanic corrosion at the joint. The 25080 is manufactured in Germany.
