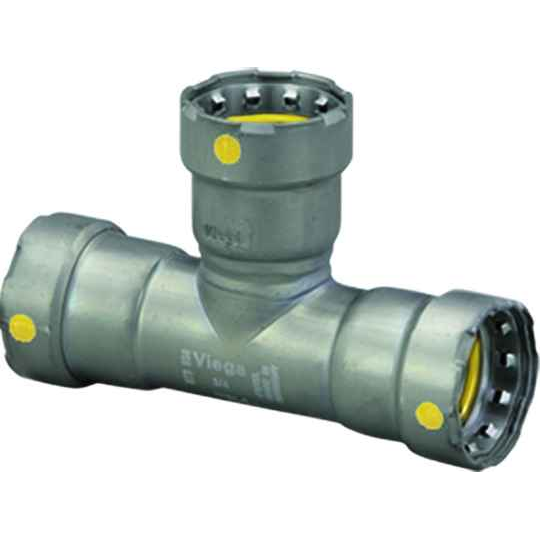

25341 Viega MegaPressG tee Smart Connect technology Carbon steel, 1'' x 1'' x 3/4''
Manufacturer Resources
Product Specs
- Connection Type:
- P1 x P2 x P3
- Material Type:
- Carbon Steel
- Product Dimension:
- 1'' x 1'' x 3/4''
- Department:
- Plumbing
- Product Group:
- Plumbing Fittings
- Product Subgroup:
- Tees
- Product Type:
- Tee
- Product Length:
- 5.15"
- Product Height:
- 1.78"
- Product Weight:
- 0.957 lbs
- Product Width:
- 3.291"
- Product Material:
- Carbon steel
Viega 25341 – Frequently Asked Questions
1) What size reducing tee is the Viega MegaPressG 25341?
It's a 1 inch x 1 inch x 3/4 inch reducing tee. The run is 1 inch on both ends and the branch drops to 3/4 inch, so you can tap a 3/4 inch takeoff off a 1 inch line without adding a separate bushing or coupling. All three ends are press connections.
2) Is the Viega 25341 press tee carbon steel or stainless?
Carbon steel. That puts it in the MegaPressG carbon steel family, which is the line used on black iron style piping rather than copper or stainless systems. If your existing line is stainless or copper tube, this is the wrong material and you want the matching stainless or copper press fitting instead.
3) What does the Smart Connect feature on a Viega MegaPressG fitting actually do for the installer?
Smart Connect is Viega's unpressed-connection indicator. On a pressure test, a fitting that was missed leaks noticeably at the sealing element so the crew can find it before the system is buttoned up. On a branch tee like the 25341 that matters more than on a coupling, because there are three separate presses to make and one is easy to skip when you are working overhead or in a tight rack.
4) Do I need to thread or weld anything to install the Viega 25341?
No. Every end is a press joint, so the install is cut, deburr, mark depth, insert and press. No threading, no cutting oil, no hot work permit and no flame watch, which is the main reason crews choose MegaPressG for occupied buildings and mechanical rooms where a torch is a problem.
5) Should I use a press reducing tee or a full-size tee with a reducer bushing?
A reducing tee like the 1 x 1 x 3/4 inch 25341 gives you the branch reduction in one fitting and one set of presses. Running a full 1 inch tee plus a reducing fitting on the branch adds another joint, another leak point and another press cycle, plus more length in the rack. Use the full-size tee only when you actually need the branch at 1 inch or want future capacity on that takeoff.
6) Where is the Viega MegaPressG 25341 manufactured?
Made in Germany. That matters on public and institutional work where country of origin has to be documented in the submittal package, so it's worth capturing at the time you order rather than chasing it at closeout.
7) What part number do I give my supplier for the Viega 1 x 1 x 3/4 MegaPressG tee?
Order it as Viega part 25341. That number identifies the carbon steel MegaPressG tee in the 1 inch x 1 inch x 3/4 inch configuration, which is the detail to confirm since Viega catalogs a long run of tees that differ only by the branch size.
