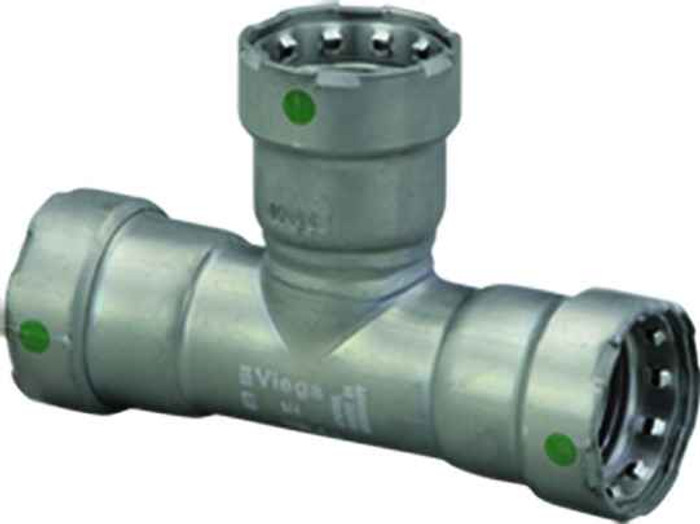

25360 Viega MegaPress tee Smart Connect technology Carbon steel, 1-1/2'' x 1-1/2'' x 1/2''
Manufacturer Resources
Product Specs
- Connection Type:
- P1 x P2 x P3
- Material Type:
- Carbon Steel
- Product Dimension:
- 1-1/2'' x 1-1/2'' x 1/2''
- Department:
- Plumbing
- Product Group:
- Plumbing Fittings
- Product Subgroup:
- Tees
- Product Type:
- Tee
- Product Length:
- 6.87"
- Product Height:
- 2.437"
- Product Weight:
- 1.873 lbs
- Product Width:
- 3.732"
- Product Material:
- Carbon steel
Viega 25360 – Frequently Asked Questions
1) What pipe sizes does the Viega MegaPress 25360 tee connect?
The 25360 MegaPress tee is a 1-1/2 inch x 1-1/2 inch x 1/2 inch reducing tee, so the run is 1-1/2 inch on both ends with a 1/2 inch branch outlet. All three ends are press connections (P1 x P2 x P3), not threaded and not grooved.
2) Can I use this Viega tee on black iron gas or hydronic steel pipe?
It is a carbon steel press fitting, so it is made for black iron and carbon steel pipe rather than copper. MegaPress fittings press onto standard schedule steel pipe, which is why contractors use them to branch off existing black iron mains without threading or welding. For copper tube you need a copper press fitting instead.
3) Is the Viega 25360 the right part to pick up a 1/2 inch branch off an existing 1-1/2 inch steel main?
That is exactly what it is for. Cut into the 1-1/2 inch line, press both run ends, and take the 1/2 inch press branch off for a gauge, drop, or small takeoff. No threading, no hot work, and the existing pipe stays in place.
4) What does Smart Connect on the Viega 25360 do for me during install?
Smart Connect is Viega's unpressed-connection feature: it lets a fitting that was left unpressed leak noticeably during pressure test so you find it before the wall closes up. On a 1-1/2 inch x 1/2 inch branch tee with three separate press joints, that matters, since one missed press out of three is the common field error.
5) How much clearance do I need to fit the Viega 25360 tee between joists or in a chase?
Plan for a fitting body of 6.87 inches long, 3.732 inches wide, and 2.437 inches high, plus room to get the press jaw around each of the three ends. It weighs 1.873 lbs, light enough to hold in place one-handed while pressing.
6) Do I need a special press tool for the 1/2 inch branch on this MegaPress tee?
Yes, each size takes its own jaw. Because the 25360 mixes sizes, you need the 1-1/2 inch press ring or jaw set for the two run ends and the 1/2 inch jaw for the branch. Order the fitting and confirm you have both jaw sizes on the tool before you get to the riser.
