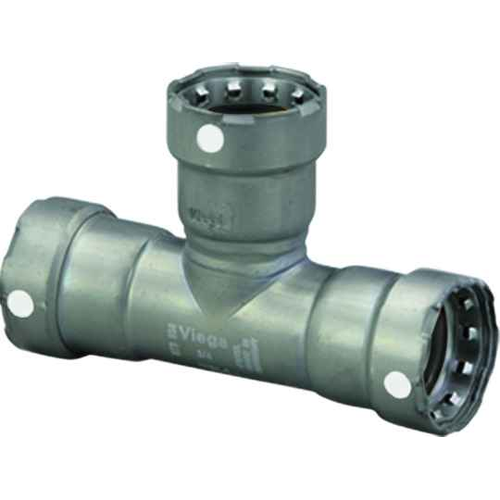

Viega 84415 MegaPress tee Smart Connect technology Carbon steel, 1'' x 1'' x 1/2''

The 84415 MegaPress tee is a reducing tee sized 1 inch x 1 inch x 1/2 inch, so the run is 1 inch on both ends and the branch takes 1/2 inch. All three ends are press connections (P1 x P2 x P3), not threaded and not grooved, so each one presses directly onto the pipe.

That is what it is built for. The 84415 is a carbon steel press tee, so it goes on carbon steel pipe (black iron) without threading, welding or soldering. You cut the pipe square, deburr, mark the insertion depth, and press each of the three ends with the matching jaw. No open flame means it is workable in occupied buildings and mechanical rooms where hot work permits are a problem.

No. Carbon steel fittings and black iron pipe are for closed systems, typically hydronic heating and chilled water, compressed air, fire sprinkler and gas-type service depending on the approved sealing element. For potable water you want a copper press fitting (Viega ProPress) or a PEX system, not carbon steel, because bare carbon steel corrodes in an oxygenated open loop.

Smart Connect is Viega's unpressed-connection feature. It is built into the sealing element so that an unpressed joint leaks visibly during pressure testing instead of passing the test and failing later. On a multi-port fitting like this 1 x 1 x 1/2 inch tee, where it is easy to press two ports and forget the third, that is the feature that catches the miss before the ceiling closes up.

Yes, each port is pressed with the jaw matching that port size, so the 1 x 1 x 1/2 inch tee takes a 1 inch jaw on the two run ends and a 1/2 inch jaw on the branch. Carry both sizes to the job. Jaws and the press tool are separate purchases and are not supplied with the fitting.

Order by model 84415. The sizing reads run x run x branch, so 1 inch x 1 inch x 1/2 inch means the main stays 1 inch through the tee and the 1/2 inch is the outlet. If your takeoff is also 1 inch, you want the straight 1 x 1 x 1 tee instead of this one.
