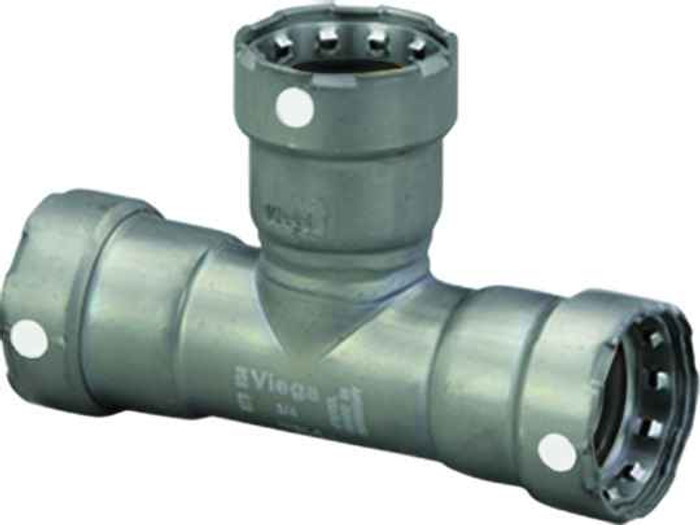

84375 Viega MegaPress tee Smart Connect technology Carbon steel, 1'' x 1'' x 1''
Manufacturer Resources
Product Specs
- Connection Type:
- P1 x P2 x P3
- Material Type:
- Carbon Steel
- Product Dimension:
- 1'' x 1'' x 1''
- Department:
- Plumbing
- Product Group:
- Plumbing Fittings
- Product Subgroup:
- Tees
- Product Type:
- Tee
- Product Length:
- 8.843"
- Product Height:
- 4.181"
- Product Weight:
- 1.045 lbs
- Product Width:
- 6.37"
- Product Material:
- Carbon steel
Viega 84375 – Frequently Asked Questions
1) What pipe size does the Viega 84375 MegaPress tee fit?
The Viega 84375 MegaPress tee is a 1 inch x 1 inch x 1 inch fitting, so all three press connections take 1 inch pipe. It is a full-size tee, not a reducing tee, so a branch run in a smaller size needs a different part number.
2) Is the Viega 84375 MegaPress tee carbon steel or copper?
Carbon steel. The 84375 tee is built for black iron and carbon steel pipe systems, which is what MegaPress is made for, rather than for copper tube (that is Viega's ProPress line).
3) Do I need to thread or weld the Viega 84375 tee into a black iron line?
No. All three ends of the 84375 are press connections (listed as P1 x P2 x P3), so the joint is made cold with a press tool and jaw. No threading, no cutting oil, no hot work permit. That is the main reason crews use MegaPress for retrofit work in occupied buildings.
4) What does Smart Connect mean on a MegaPress fitting, and why does it matter during pressure testing?
Smart Connect is the feature on the Viega 84375 MegaPress tee that leaves an unpressed connection deliberately leaky, so when you charge the system for test, any joint you missed shows itself instead of hiding until the building is occupied. It does not replace pressing; every one of the three 1 inch sockets still has to be pressed with the correct jaw.
5) How much room do I need around a 1 inch MegaPress tee to get the press jaw on it?
Plan clearance against the fitting's own envelope: the 84375 measures 8.843 x 6.37 x 4.181 inches as shipped, and a press jaw needs swing room beyond that on each socket. In tight joist bays or against a wall, set the tee before the branch piping is fixed so the jaw can seat square on each of the three connections.
6) What is the Viega part number and UPC for the 1 inch MegaPress tee?
Order it as Viega 84375, UPC 691514843759. It is a 1 inch x 1 inch x 1 inch carbon steel MegaPress tee, and the fitting weighs 1.045 lbs.
How fast can I get the Viega 84375 delivered?
Most orders ship the same day from our distribution partners, with quick delivery throughout the
continental
U.S.
Need it urgently? Contact Us for expedited shipping options.
Can I return it if it doesn’t work for me?
Yes—ZenSupply offers a hassle-free return policy. If the product isn’t the right fit,
reach out to our support team for a return authorization or setup a return by following our return instructions.
Does the Viega 84375 come with a warranty?
Absolutely. The Viega 84375 is backed by a manufacturer’s warranty.
For full warranty terms, check the product documentation or Contact Us.
How do I get technical support or installation help for the Viega 84375?
You can call, text, or email our expert support team for fast answers. We’re here to help with
product
selection,
installation tips, and troubleshooting. Contact Us
