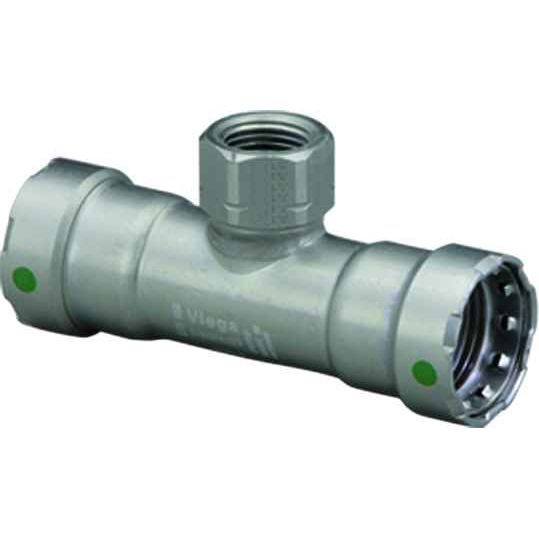

25460 Viega MegaPress tee Smart Connect technology Carbon steel, 2'' x 2'' x 3/4''
Manufacturer Resources
Product Specs
- Connection Type:
- P1 x P2 x FPT
- Material Type:
- Carbon Steel
- Product Dimension:
- 2'' x 2'' x 3/4''
- Department:
- Plumbing
- Product Group:
- Plumbing Fittings
- Product Subgroup:
- Tees
- Product Type:
- Tee
- Product Length:
- 7.547"
- Product Height:
- 2.894"
- Product Weight:
- 2.4 lbs
- Product Width:
- 3.728"
- Product Material:
- Carbon steel
Viega 25460 – Frequently Asked Questions
1) What size and connection configuration is the Viega MegaPress 25460 tee?
The Viega MegaPress 25460 is a 2 inch x 2 inch x 3/4 inch carbon steel tee. The run ends are both press connections and the 3/4 inch branch is female pipe thread, listed as P1 x P2 x FPT. So you press the 2 inch run onto black iron pipe and thread a 3/4 inch male-threaded fitting, gauge, or drain into the branch.
2) Can I press a MegaPress carbon steel tee onto black iron pipe instead of threading or welding it?
That is exactly what MegaPress carbon steel fittings are for. The 25460 tee presses onto 2 inch black iron pipe on both run ends, so you do not have to cut threads or strike an arc on the line. The 3/4 inch branch stays FPT for anything you need to thread in. Cold work like this is the usual reason contractors pick press over welded outlets on gas, compressed air, or hydronic steel piping.
3) Is the Viega 25460 a reducing tee, and which end is the reduced one?
It reduces on the branch only. The run stays full 2 inch through both press ends, and the outlet drops to 3/4 inch female thread. If you need a 3/4 inch press branch instead of thread, this is not the fitting, you want the press x press x press version of the 2 x 2 x 3/4 MegaPress tee.
4) What is Smart Connect on the Viega 25460 tee and why does it matter on install?
Smart Connect is the feature built into the MegaPress sealing element that lets an unpressed joint leak during pressure test, so you find a missed connection before the system is buttoned up. On a 2 x 2 x 3/4 tee you have two press joints to make, and this is what keeps one of them from being forgotten behind a wall or above a ceiling.
5) Will a copper or stainless press fitting work on black steel pipe?
No. Steel pipe takes a carbon steel press fitting, and the 25460 is carbon steel built for that service. Copper press fittings are for copper tube and stainless press for stainless, and the sealing elements and jaw profiles differ between the systems. Match the fitting material to the pipe.
How fast can I get the Viega 25460 delivered?
Most orders ship the same day from our distribution partners, with quick delivery throughout the
continental
U.S.
Need it urgently? Contact Us for expedited shipping options.
Can I return it if it doesn’t work for me?
Yes—ZenSupply offers a hassle-free return policy. If the product isn’t the right fit,
reach out to our support team for a return authorization or setup a return by following our return instructions.
Does the Viega 25460 come with a warranty?
Absolutely. The Viega 25460 is backed by a manufacturer’s warranty.
For full warranty terms, check the product documentation or Contact Us.
How do I get technical support or installation help for the Viega 25460?
You can call, text, or email our expert support team for fast answers. We’re here to help with
product
selection,
installation tips, and troubleshooting. Contact Us
