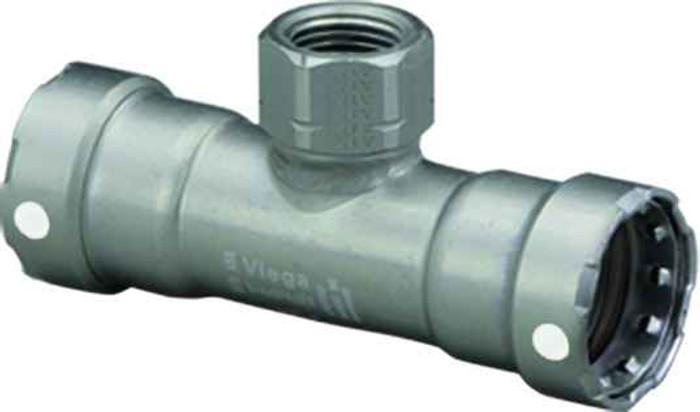

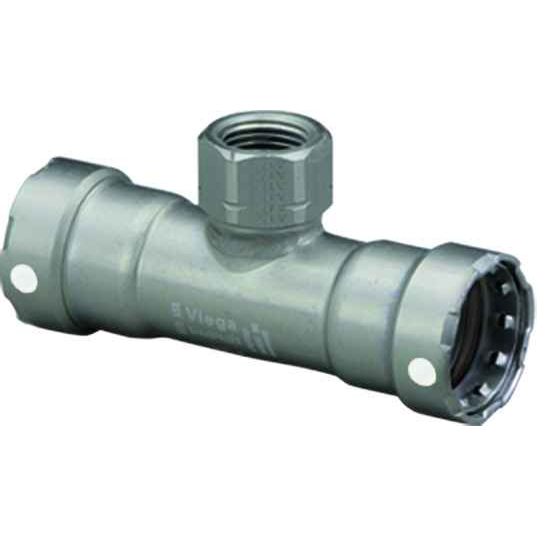

84600 Viega MegaPress tee Smart Connect technology Carbon steel, 2'' x 2'' x 3/4''
Manufacturer Resources
Product Specs
- Connection Type:
- P1 x P2 x FPT
- Material Type:
- Carbon Steel
- Product Dimension:
- 2'' x 2'' x 3/4''
- Department:
- Plumbing
- Product Group:
- Plumbing Fittings
- Product Subgroup:
- Tees
- Product Type:
- Tee
- Product Length:
- 7.677"
- Product Height:
- 2.913"
- Product Weight:
- 2.451 lbs
- Product Width:
- 3.74"
- Product Material:
- Carbon steel
Viega 84600 – Frequently Asked Questions
1) What are the three connections on the Viega MegaPress 84600 tee?
The 84600 is a 2 inch x 2 inch x 3/4 inch tee with a P1 x P2 x FPT configuration: the two 2 inch run ends are press connections and the 3/4 inch branch is female pipe thread. So you press into the run and thread into the branch, which is how you pick up a 3/4 inch threaded takeoff (gauge, drain, drop) off a 2 inch main without threading the main itself.
2) Can I use the MegaPress 84600 tee on black iron or steel pipe instead of copper?
Yes, that is what it is built for. The 84600 is a carbon steel MegaPress fitting, so the press ends are intended for black and schedule steel pipe, not copper tube. For copper you would need a copper press or sweat fitting instead.
3) Do I need to thread the 3/4 inch branch on the MegaPress 84600, or does it press too?
The 3/4 inch branch is FPT, female pipe thread, so it takes a male threaded nipple or valve with pipe dope or tape. Only the two 2 inch run ends are press. If you want all three outlets pressed, you need a press x press x press tee instead of the 84600.
4) What does Smart Connect on the Viega 84600 MegaPress tee actually do for me on the job?
Smart Connect is the feature on the 84600 that leaves an unpressed connection deliberately leaky when the system is pressure tested. During test you see the drip at any joint you missed, so you can find and press it before the wall closes up rather than after.
5) Is the Viega 84600 tee a reducing tee, and which end is the 3/4 inch?
It reduces on the branch only. The run stays full 2 inch through both press ends, and the 3/4 inch is the threaded outlet. That keeps flow in the main undisturbed while giving you a small takeoff.
