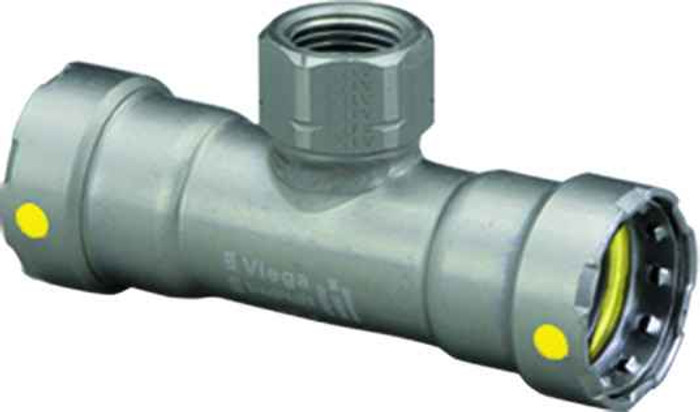

25461 Viega MegaPressG tee Smart Connect technology Carbon steel, 2'' x 2'' x 3/4''
Manufacturer Resources
Product Specs
- Connection Type:
- P1 x P2 x FPT
- Material Type:
- Carbon Steel
- Product Dimension:
- 2'' x 2'' x 3/4''
- Department:
- Plumbing
- Product Group:
- Plumbing Fittings
- Product Subgroup:
- Tees
- Product Type:
- Tee
- Product Length:
- 7.547"
- Product Height:
- 2.894"
- Product Weight:
- 2.391 lbs
- Product Width:
- 3.728"
- Product Material:
- Carbon steel
Viega 25461 – Frequently Asked Questions
1) What are the three connections on the Viega 25461 MegaPressG tee?
The 25461 is a 2 inch x 2 inch x 3/4 inch tee with a P1 x P2 x FPT configuration: the two 2 inch run ends are press connections, and the 3/4 inch branch is female pipe thread. So you press into the main line and thread into the branch, which is how you pick up a drop for a regulator, gauge, or appliance connector without a separate adapter.
2) Is the Viega 25461 tee for gas piping or water?
MegaPressG is Viega's gas-rated press system, and the 25461 is a MegaPressG carbon steel tee. It presses onto black iron pipe runs the way MegaPress does for other services, but the G line carries the gas-specific sealing element. Use MegaPressG fittings with MegaPressG fittings; don't mix a standard MegaPress body into a gas line.
3) What pipe does a 2 inch MegaPressG tee press onto?
Carbon steel press fittings in this family are made for black iron / carbon steel pipe, and the 25461 presses two 2 inch pipe ends. The fitting body itself is carbon steel, so it matches the pipe material rather than introducing a dissimilar metal into the run.
4) What does Smart Connect technology on this Viega tee actually do for me on site?
Smart Connect is the feature Viega builds into the sealing element so an unpressed connection leaks during pressure test instead of holding. On a 2 inch gas branch that is the difference between finding a missed press at test and finding it after the wall is closed. The 25461 carries it on both 2 inch press ends.
5) Is anything included with the Viega 25461 tee, or do I need to order sealing parts separately?
The tee ships as a complete fitting with the sealing element already installed in both 2 inch press ends, so there is nothing to assemble. What you do need to supply is thread sealant rated for your service on the 3/4 inch FPT branch and whatever nipple or valve threads into it.
