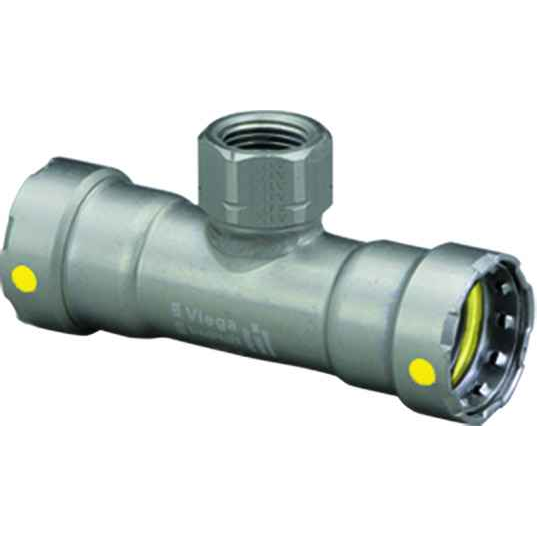

25486 Viega MegaPressG tee Smart Connect technology Carbon steel, 1-1/4'' x 1-1/4'' x 1/2''
Manufacturer Resources
Product Specs
- Connection Type:
- P1 x P2 x FPT
- Material Type:
- Carbon Steel
- Product Dimension:
- 1-1/4'' x 1-1/4'' x 1/2''
- Department:
- Plumbing
- Product Group:
- Plumbing Fittings
- Product Subgroup:
- Tees
- Product Type:
- Tee
- Product Length:
- 6.457"
- Product Height:
- 2.205"
- Product Weight:
- 1.344 lbs
- Product Width:
- 2.953"
- Product Material:
- Carbon steel
Viega 25486 – Frequently Asked Questions
1) What are the three outlet sizes on the Viega 25486 MegaPressG tee?
The Viega MegaPressG tee 25486 is a 1-1/4 inch x 1-1/4 inch x 1/2 inch reducing tee. The two 1-1/4 inch ends are press connections and the 1/2 inch branch is female pipe thread, so the run presses onto 1-1/4 inch black iron pipe while the branch takes a threaded 1/2 inch nipple, gauge, valve or drip leg.
2) Can I press this Viega MegaPressG tee onto existing black iron gas pipe instead of threading it?
That is exactly what it is for. The two 1-1/4 inch press ends of the 25486 go onto 1-1/4 inch carbon steel (black iron) pipe with a press tool, no threading, cutting oil or open flame. The 1/2 inch branch stays female threaded for a conventional screwed connection, so you can tie a threaded branch into a pressed run.
3) Is the Viega 25486 tee carbon steel or stainless, and does the material match my gas pipe?
Carbon steel, same family as the black iron pipe it presses onto, so you are not mixing dissimilar metals on the run. Viega's MegaPress line uses stainless for its water-side fittings; the G series like the 25486 is carbon steel for gas and fuel service piping.
4) What is Smart Connect on a Viega MegaPressG fitting and why does it matter on a gas line?
Smart Connect is a feature of the sealing element in the MegaPressG fitting: an unpressed connection leaks deliberately during pressure testing so it gets found on the test rather than after the wall closes. On a gas run that is the difference between catching a missed press at test and chasing it later. The 25486 carries it on both 1-1/4 inch press ends.
5) Do I need a special press tool or jaw for a 1-1/4 inch MegaPressG fitting?
Yes. MegaPress fittings for black iron pipe use press jaws or rings sized to the pipe, and 1-1/4 inch is in the larger range, so a 1-1/4 inch MegaPress jaw or ring and actuator is required. Copper or PEX press jaws will not press this fitting. The 25486 itself ships as the fitting only; the sealing element is factory installed.
