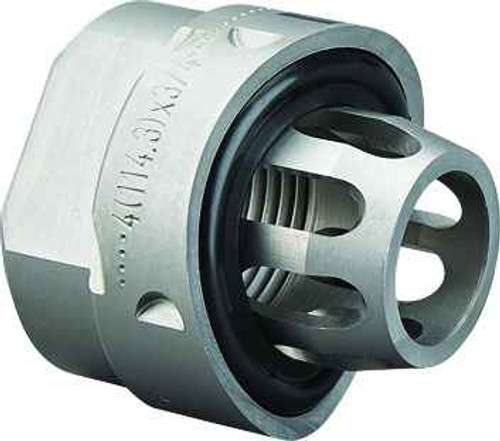

26805 Viega MegaPress Press-In Branch Connector Carbon steel, 2'' x 3/4''
Manufacturer Resources
Product Specs
- Connection Type:
- P x FPT
- Material Type:
- Carbon Steel
- Product Dimension:
- 2'' x 3/4''
- Department:
- Plumbing
- Product Group:
- Plumbing Fittings
- Product Subgroup:
- Tees
- Product Type:
- Tee
- Product Length:
- 1.693"
- Product Height:
- 1.654"
- Product Weight:
- 0.452 lbs
- Product Width:
- 1.693"
- Product Material:
- Carbon steel
Viega 26805 – Frequently Asked Questions
1) How does the Viega MegaPress 26805 branch connector attach to the run pipe?
The 26805 is a press-in branch connector: the 2 inch press end mounts onto the carbon steel run pipe and is pressed with a MegaPress jaw, giving you a 3/4 inch female NPT outlet for the branch. Connection type is P x FPT, so the branch side is threaded, not pressed.
2) Will a 3/4 inch threaded nipple or valve thread straight into the Viega 26805 outlet?
Yes. The outlet is 3/4 inch female pipe thread (FPT), so any standard 3/4 inch male NPT nipple, valve, drop or sensor well threads directly in. Tape or dope the male thread as usual; no press tool is needed on the branch side.
3) Why use a press-in branch connector instead of cutting in a reducing tee?
A branch connector like the Viega 26805 lets you take a 3/4 inch branch off an existing 2 inch carbon steel line without cutting the pipe out, removing a section, and fitting a full tee with two extra joints. You drill the run, set the connector, press once, and thread the branch in. For new runs where the pipe is already open, a conventional reducing tee is the simpler choice.
4) Is the Viega 26805 the right part for a 1-1/2 inch or 2-1/2 inch main?
No. The 26805 is sized for a 2 inch run only, with a 3/4 inch branch outlet. Other pipe sizes need the matching MegaPress branch connector for that diameter.
