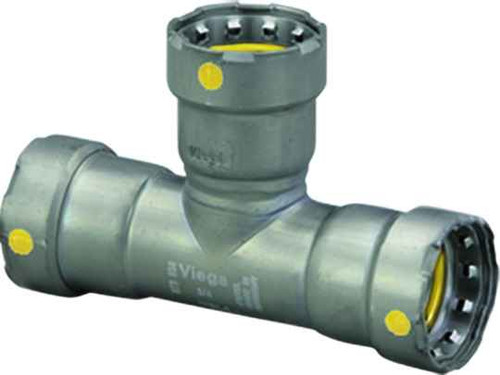

28665 Viega MegaPressG tee Smart Connect technology Carbon steel, 3'' x 3'' x 3''
Manufacturer Resources
Product Specs
- Connection Type:
- P1 x P2 x P3
- Country Of Origin:
- Made in Germany
- Material Type:
- Carbon Steel
- Product Dimension:
- 3'' x 3'' x 3''
- Department:
- Plumbing
- Product Group:
- Plumbing Fittings
- Product Subgroup:
- Tees
- Product Type:
- Tee
- Product Length:
- 9.764"
- Product Height:
- 4.181"
- Product Weight:
- 4.796 lbs
- Product Width:
- 6.913"
Viega 28665 – Frequently Asked Questions
1) What size is the Viega MegaPressG 28665 tee and are all three outlets the same?
It's a full-size 3 inch equal tee, 3" x 3" x 3" on all three press connections, so the branch runs the same diameter as the main. No reducer bushing needed on the branch, and no separate coupling to pick up the run.
2) Is the Viega 28665 tee threaded or does it press on?
All three ends are press. The connection type is P1 x P2 x P3, meaning press by press by press, so it is joined with a press tool and jaw rather than threaded or welded. There are no NPT threads on this fitting, so if you need to land on a threaded nipple or valve you'll need a press-by-thread adapter at that point.
3) What pipe material does the Viega MegaPressG 3 inch tee go on?
The fitting body is carbon steel, and MegaPressG fittings press onto black iron / carbon steel pipe. It is not for copper tube or stainless lines, which take a different Viega system.
4) Is the Viega 28665 the right fitting for a gas branch takeoff?
MegaPressG is Viega's gas-rated press line for carbon steel pipe, and the 28665 is the 3 inch equal tee in that family. The plain MegaPress fittings are the non-gas version. Match the family to the service: don't mix a standard MegaPress fitting into a MegaPressG gas run.
5) What does the Smart Connect feature on this Viega tee actually do for the installer?
Smart Connect is Viega's unpressed-connection indicator: an unpressed joint will leak noticeably during pressure test so it gets caught on the test rather than after the wall is closed. On a 3 inch tee with three separate press points, that matters, since it is easy to press two ends and miss the third on a crowded rack.
6) How much clearance do I need around a 3 inch MegaPressG tee to get the press jaw in?
Plan the layout around the fitting envelope: 9.764 inches long, 6.913 inches wide, 4.181 inches high. The 3 inch press jaw and ring still need swing room beyond that on each of the three ends, so keep the tee off tight against joists, walls, or an adjacent hanger.
