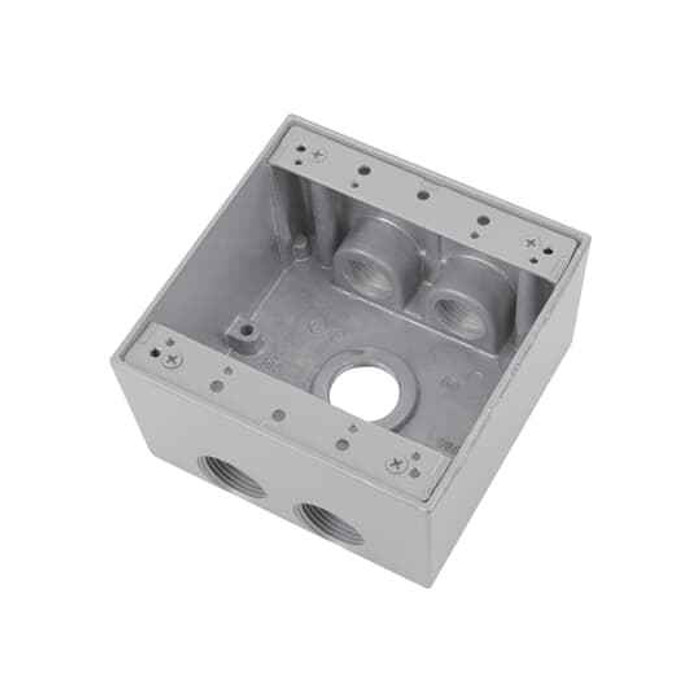

2G WP BOX,7-HOLE,2 SIDE,1 IN HUBS
Manufacturer Resources
Product Specs
- Cable Entry Position:
- Hubs
- Product Group:
- Electrical Boxes
- Product Type:
- Weatherproof boxes
- Product type2:
- Weatherproof boxes
- Selling Unit Of Measure:
- each
- Volume:
- 31.8 in³
- Department:
- Electrical
- Product Subgroup:
- Outlet Boxes
- Product Color:
- Silver
- Product Material:
- Aluminum
Red Dot 2IHD7S2-3 – Frequently Asked Questions
1) What size conduit hubs does the Red Dot 2IHD7S2-3 weatherproof box take?
The 2IHD7S2-3 is built with 1 inch threaded hubs, so it lands directly on 1 inch rigid or IMC conduit with no connectors or locknuts needed. All cable entry on this box is through hubs rather than knockouts, which is what keeps the enclosure weathertight outdoors.
2) How many hub openings are on this 2-gang Red Dot box and where are they located?
Seven hub openings total, with two of them on the sides. That side pair is what lets you run conduit through the box horizontally for a feed-through run, instead of dead-ending at the box. The rest give you back and end entry options for whichever direction your conduit approaches from.
3) Will a two-gang GFCI or switch device fit in the Red Dot 2IHD7S2-3?
Yes, it's a 2-gang weatherproof box, so it takes two standard devices side by side (duplex receptacle, GFCI, switch, or any mix). With 31.8 cubic inches of volume there is working room for the conductors and device yokes. You order the cover separately to match the devices you're installing.
4) Is the Red Dot 2IHD7S2-3 box suitable for outdoor or wet locations?
It's a weatherproof box with threaded hub entries, intended for outdoor and damp exposure where a knockout-style indoor box would let water in. The body is aluminum, so it holds up to weather without rusting the way a steel box would. You still need a weatherproof cover and gasket matched to the devices to complete the wet-location assembly.
5) Does the Red Dot 2IHD7S2-3 come with a cover?
It is sold as the box alone, one per unit. Covers, gaskets, and device plates are separate items, so budget a weatherproof cover (in-use/bubble cover if the receptacle will be occupied outdoors) and mounting hardware with the box when you order for a job.
6) How do I confirm I'm ordering the right Red Dot box for a 1 inch conduit 2-gang outdoor location?
Match on the part number 2IHD7S2-3 from Red Dot. That identifies the 2-gang weatherproof aluminum box with seven 1 inch hubs, two of them on the sides. Unused hubs get closure plugs. Volume is 31.8 cubic inches for conductor fill calculation.
7) What is this box made of and what does it look like once installed?
Cast aluminum, silver finish. For a property manager matching existing exterior boxes on a building, that's the standard unpainted gray-silver cast look, and it accepts exterior paint if you need it to disappear into a wall color.
