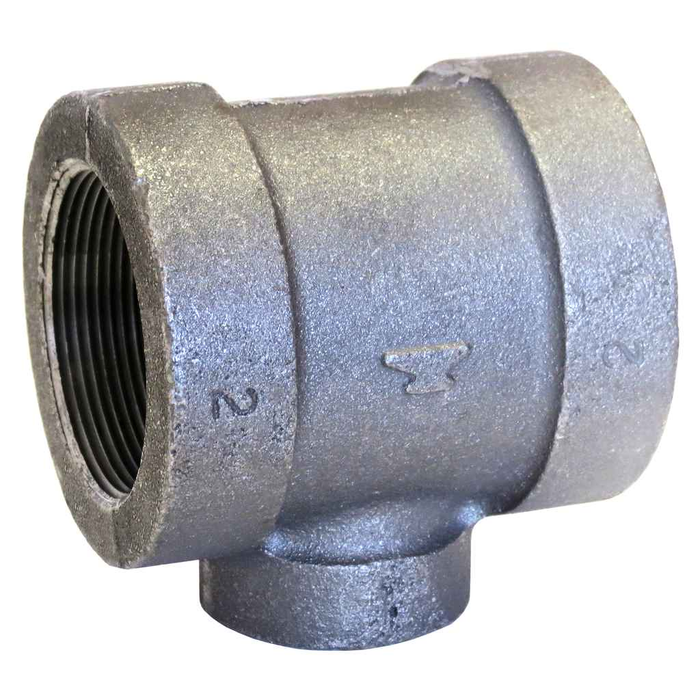

2X2X1 XH BLK MI TEE
Manufacturer Resources
Product Specs
- Dimensions Specification:
- ASME B16.3
- End Conn Size 1:
- FPT
- End Conn Size 2:
- FPT
- End Conn Size 3:
- FPT
- Material Specification:
- ASTM A-197
- Pressure Rating Specification:
- ASME B16.3
- Size 1:
- 2
- Size 2:
- 2
- Size 3:
- 1
- Strength:
- XH
- Thread Specification:
- ASME B1.20.1
- Ul Fm:
- Yes
- Department:
- Plumbing
- Product Group:
- Pipe Fittings
- Product Subgroup:
- Tees
- Product Type:
- Tee
- Product Finish:
- Black
- Product Material:
- Malleable Iron
- Product Weight:
- 3.69 lbs
ASC Engineered Solutions 310525605 – Frequently Asked Questions
1) What size branch does the ASC Engineered Solutions 2 x 2 x 1 black malleable iron tee have?
It's a reducing tee: both run ends are 2 inch and the branch outlet is 1 inch. All three openings are female pipe thread (FPT), so pipe threads into the fitting rather than over it. That makes it the fitting to use when you're taking a 1 inch branch off a 2 inch line without adding a bushing.
2) Will this malleable iron tee thread onto standard NPT pipe?
Yes. The threads are cut to ASME B1.20.1, which is the standard for NPT taper pipe thread, so it mates with ordinary threaded black or galvanized steel pipe of the matching size. Use pipe dope or PTFE tape on the male threads.
3) What does XH mean on a black malleable iron tee, and when do I need it instead of standard?
XH is extra heavy, a thicker wall class with a higher pressure rating than the standard (Class 150) malleable fitting. On this 2 x 2 x 1 tee the pressure class follows ASME B16.3. Spec XH when the drawing calls for a higher working pressure or extra-heavy fittings throughout; for ordinary low-pressure black iron gas or air runs, standard weight is usually what's specified.
4) Can I use a black malleable iron tee on a potable water line?
No. Black malleable iron is uncoated and will rust in wet potable service, and black fittings are not the right choice for drinking water. Black iron is used for gas, compressed air, and fire protection piping. For water supply, go to a galvanized, copper, brass, or CPVC fitting instead.
5) What material and standards does this 2 x 2 x 1 extra heavy tee meet?
The casting is malleable iron to ASTM A-197, with dimensions and pressure class per ASME B16.3 and threads per ASME B1.20.1. That combination is what a mechanical spec usually calls out for threaded black iron fittings, so it drops straight into a B16.3 fitting schedule.
6) Will this tee interchange with another brand's 2 x 2 x 1 extra heavy black malleable tee?
Yes, dimensionally. Because it is built to ASME B16.3 with B1.20.1 threads, the center-to-end dimensions and thread engagement match any other B16.3 extra heavy 2 x 2 x 1 malleable tee, so it drops into an existing threaded run without re-cutting pipe.
7) What is the manufacturer part number for this ASC Engineered Solutions reducing tee?
Order it as ASC Engineered Solutions part 310525605, the 2 x 2 x 1 extra heavy black malleable iron tee. That MPN is what to quote when matching a submittal or reordering the same fitting for a second phase.
