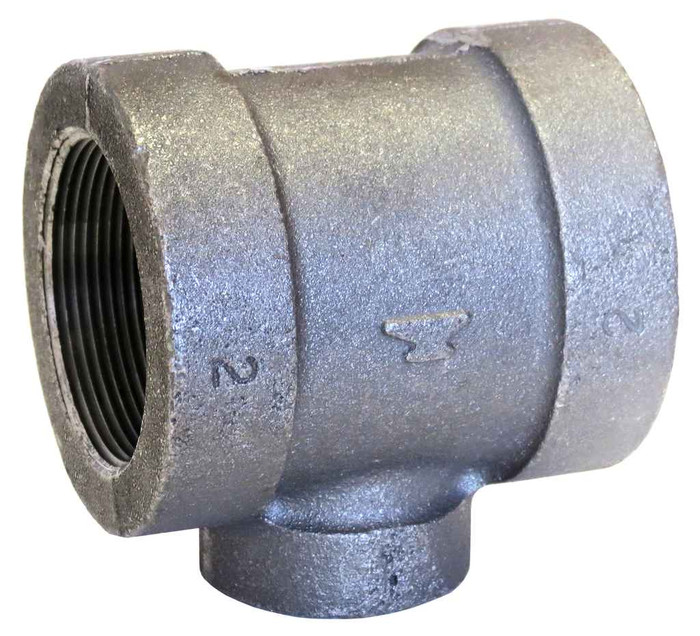

2X2X11/2 XH BLK MI TEE
Manufacturer Resources
Product Specs
- Dimensions Specification:
- ASME B16.3
- End Conn Size 1:
- FPT
- End Conn Size 2:
- FPT
- End Conn Size 3:
- FPT
- Material Specification:
- ASTM A-197
- Pressure Rating Specification:
- ASME B16.3
- Size 1:
- 2
- Size 2:
- 2
- Size 3:
- 1.5
- Strength:
- XH
- Thread Specification:
- ASME B1.20.1
- Ul Fm:
- Yes
- Department:
- Plumbing
- Product Group:
- Pipe Fittings
- Product Subgroup:
- Tees
- Product Type:
- Tee
- Product Finish:
- Black
- Product Material:
- Malleable Iron
- Product Weight:
- 4.6 lbs
ASC Engineered Solutions 310525209 – Frequently Asked Questions
1) Is this an extra heavy tee or a standard class 150 fitting?
Extra heavy (XH), which is the 300 class malleable iron pattern rather than the lighter standard pattern. Wall thickness and pressure rating follow ASME B16.3. If your drawing calls out 150 class, an XH fitting will still thread up fine but the outside dimensions are heavier, so check clearances in tight chases.
2) Is this tee UL/FM approved for fire sprinkler piping?
Yes, the 2 x 2 x 1-1/2 extra heavy black malleable iron tee carries UL/FM approval, which is what fire protection contractors need for threaded sprinkler mains and branch lines.
3) Can I use a black malleable iron tee on a domestic water line?
No. Black malleable iron is for dry or non-potable service, typically gas, fire sprinkler, steam, and air lines. For potable water you want galvanized, copper, or brass. The black finish here has no protective coating against wet potable service.
4) What material spec does this malleable iron tee meet?
The casting is malleable iron to ASTM A-197, with dimensions to ASME B16.3. That combination is what most mechanical and fire protection specs call out for threaded malleable fittings, so it will satisfy a drawing citing either standard.
5) Do I need a reducing bushing to drop from 2 inch to 1-1/2 inch on the branch?
No bushing needed. The branch is already tapped 1-1/2 inch FPT, so you thread 1-1/2 inch pipe straight into it. Using a 2x2x2 tee plus a bushing adds two more joints to seal, which is why the reducing pattern is preferred on a takeoff.
